Product Detailed Parameters
- Description：BANDPASS FILTER 17.3-18.1GHZ SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：17.7GHz Center
- Bandwidth：800MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.858" L x 0.500" W (47.20mm x 12.70mm)
- Height (Max)：0.412" (10.46mm)
Download product information
Overview

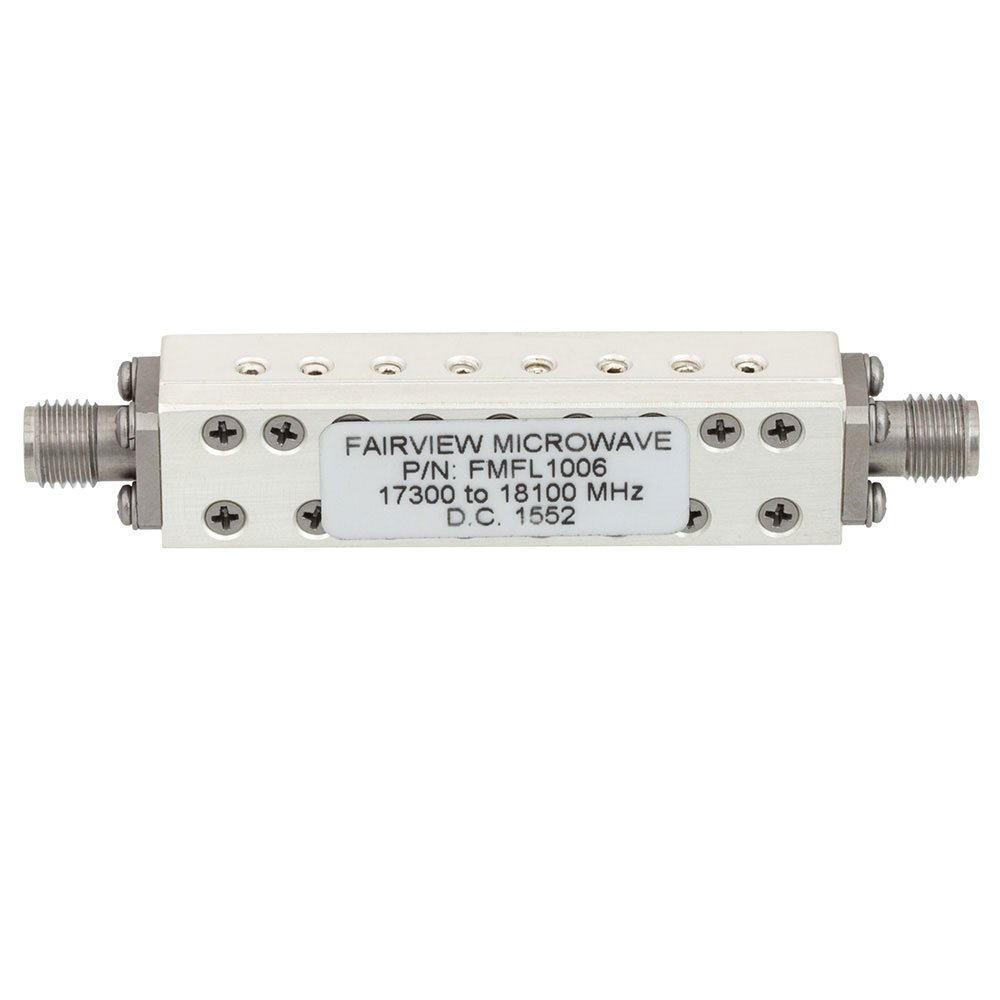

The FMFL1006 is a passive bandpass cavity filter manufactured by Fairview Microwave. It operates within a frequency range of 17.3 GHz to 18.1 GHz, centered at 17.7 GHz with an 800 MHz bandwidth. The component features SMA female connectors and exhibits an insertion loss of 1.5 dB. Designed as a module, it utilizes cavity filter technology for signal processing in high-frequency applications.
Feature Summary
- Passive bandpass cavity filter design
- SMA female connector interface
- Center frequency operation at 17.7 GHz
Applications
- Microwave communication systems
- Test and measurement equipment
- Satellite ground stations
Procurement Notes
Verify the specific datasheet revision (REV 1.0) when sourcing to ensure compatibility with current manufacturing standards. Confirm that SMA female connectors are required for your system integration. Check regional availability as distribution status may vary. Ensure the operating temperature range meets your environmental requirements before finalizing procurement.
Selection Notes
Select this model when a fixed center frequency of 17.7 GHz is required. The 800 MHz bandwidth suits applications needing moderate spectral selectivity. Consider the 1.5 dB insertion loss impact on system gain budget. SMA female interfaces dictate mating connector choices. Evaluate physical module dimensions against available chassis space.
Part Context
This component belongs to Fairview Microwave's line of RF filters. It serves as a specialized solution for filtering signals in the K-band frequency range. The product complements other microwave components like amplifiers and cables from the same manufacturer, providing essential signal conditioning capabilities for complex RF architectures.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMFL1006. Direct replacement requires matching the 17.3-18.1 GHz frequency range, SMA female connectors, and similar insertion loss specifications. Verify mechanical mounting constraints if substituting with alternative brands.
