FMFL1009

Overview

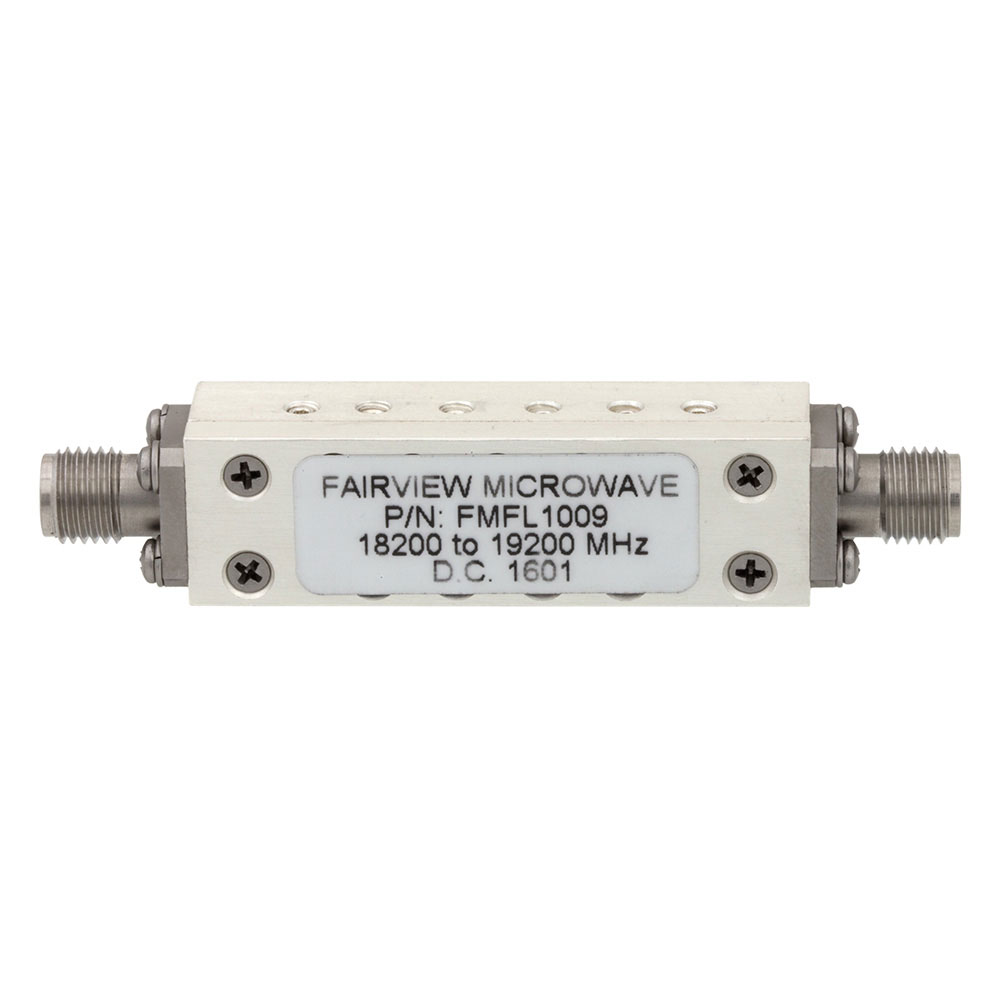

The FMFL1009 is a bandpass filter manufactured by Fairview Microwave, designed for RF applications. It operates within a frequency range of 18.2 GHz to 19.2 GHz, providing a 1 GHz bandwidth. The component features an insertion loss of 1.5 dB and utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides precise bandpass filtering in the 18.2-19.2 GHz range
• Features low insertion loss of 1.5 dB for signal integrity
• Utilizes SMA connectors for standard RF integration

Applications

• RF signal processing systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors to confirm mechanical dimensions and connector specifications. Ensure compatibility with SMA interfaces in your design. Check for any regional distribution restrictions or supply limitations before finalizing procurement plans.

Selection Notes

Select this component when a fixed bandpass response between 18.2 GHz and 19.2 GHz is required. Consider the 1.5 dB insertion loss impact on system gain. Verify that SMA connectors align with existing board or cable assemblies. Evaluate thermal performance if operating near maximum temperature limits.

Part Context

This part belongs to Fairview Microwave's RF filter portfolio, specifically targeting high-frequency microwave applications. It serves as a passive component for frequency selection in RF chains, complementing other signal conditioning elements like amplifiers and mixers in complex wireless systems.
