FMFL1010

Overview

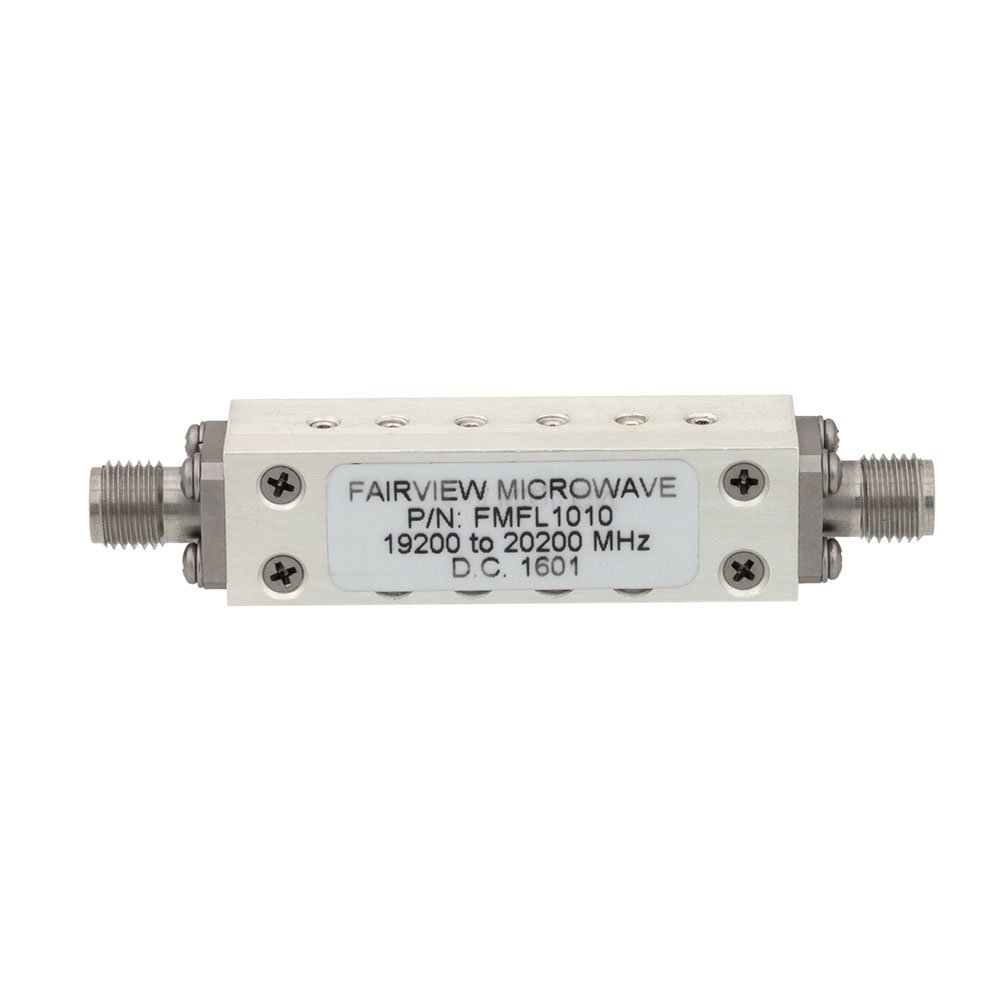

The FMFL1010 is a bandpass cavity filter manufactured by Fairview Microwave, designed for radio frequency signal conditioning applications. It operates within a frequency range of 19.2 GHz to 20.2 GHz, featuring a center frequency of approximately 19.7 GHz and a bandwidth of 1 GHz. The component utilizes SMA connectors for interface connectivity and exhibits an insertion loss of 1.5 dB. This high-performance filter is engineered to provide precise spectral selection in microwave systems.

Feature Summary

• Cavity construction ensures stable performance in demanding RF environments
• SMA connector interface facilitates standard integration
• Bandpass design provides targeted frequency selection

Applications

• Microwave communication systems requiring spectral filtering
• Test and measurement equipment needing precise frequency isolation
• Radar systems utilizing the specified frequency band

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances before procurement. Confirm that SMA connector gender and cable assembly requirements match system specifications. Ensure environmental ratings align with operational conditions. Cross-reference part numbers to avoid confusion with similar models in the Fairview Microwave portfolio.

Selection Notes

Select this model when a fixed center frequency near 19.7 GHz is required. Consider the 1.5 dB insertion loss impact on system gain budget. Verify compatibility with existing SMA infrastructure. Evaluate physical dimensions against available space constraints in the assembly.

Part Context

Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FMFL1010 belongs to their line of cavity bandpass filters, which are known for robust construction and reliable signal conditioning. These components support various industrial and commercial applications requiring precise frequency control.

Replacement Considerations

No public confirmed substitute part numbers are identified in the provided documentation. Users should verify direct compatibility or consult manufacturer guidelines for alternative solutions.
