Product Detailed Parameters

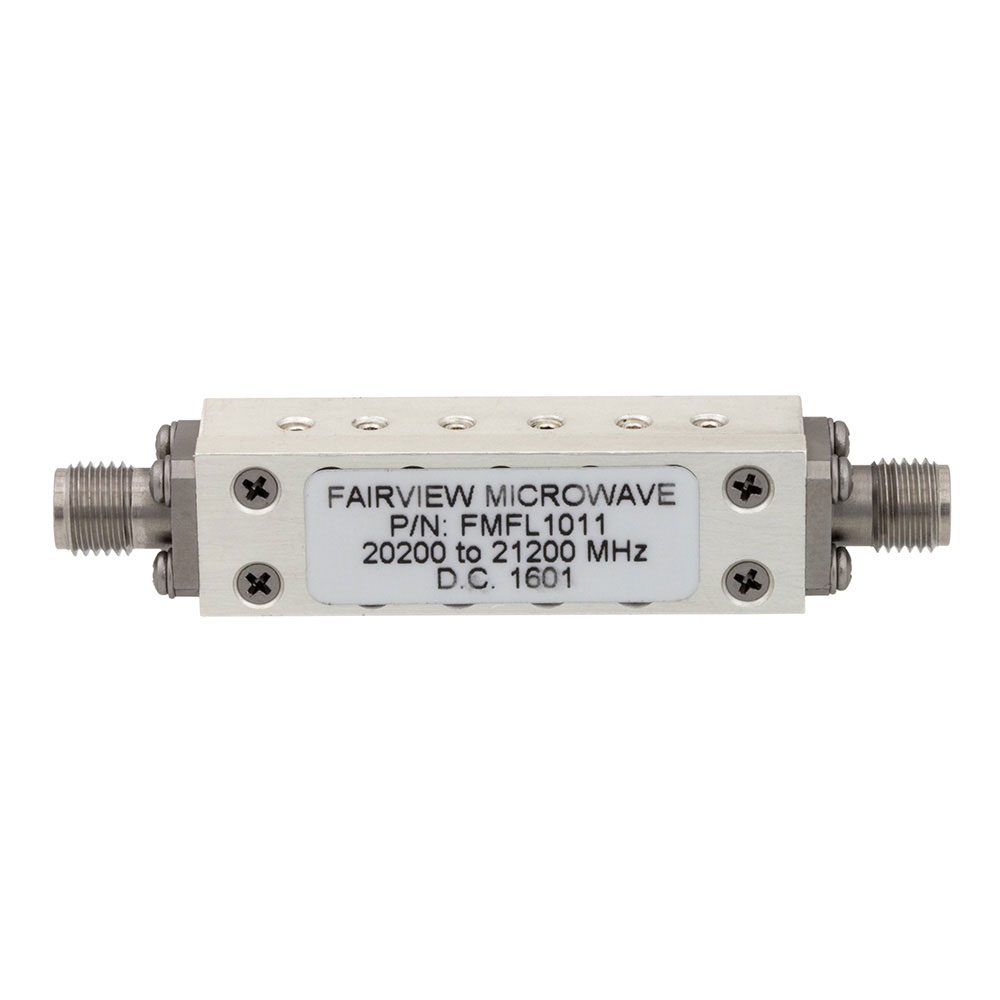

- Description：BANDPASS FILTER 20.2-21.2GHZ SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：20.7GHz Center
- Bandwidth：1GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.551" L x 0.449" W (39.40mm x 11.40mm)
- Height (Max)：0.412" (10.46mm)
Download product information
Overview
The FMFL1011 is a bandpass cavity filter manufactured by Fairview Microwave. It operates within the frequency range of 20 GHz to 20.5 GHz. The component utilizes SMA female connectors for signal interfacing. It is classified under signal conditioning products and belongs to the filters sub-category. The unit weighs approximately 34.7 grams and is packaged in a bag.
Feature Summary
- Provides bandpass filtering capabilities within the specified microwave frequency range
- Constructed as a cavity filter for stable signal conditioning performance
- Equipped with SMA female connectors for standard RF integration
Applications
- Microwave communication systems requiring specific bandpass characteristics
- Signal conditioning in high-frequency test and measurement setups
- RF circuit design operating near 20 GHz
Procurement Notes
Verify the exact frequency specifications against the official datasheet, as some sources indicate a 19.2 GHz to 20.2 GHz range while others cite 20 GHz to 20.5 GHz. Confirm connector polarity and physical dimensions prior to integration. Ensure compatibility with existing SMA interfaces in your system architecture.
Selection Notes
Select this component when a fixed bandpass response around 20 GHz is required. Consider the SMA interface constraints and cavity form factor. Evaluate insertion loss and rejection specs from the manufacturer's documentation to ensure it meets system requirements for the target frequency band.
Part Context
This part belongs to Fairview Microwave's signal conditioning portfolio, specifically within their bandpass filter line. It serves as a passive RF component designed for precise frequency selection in microwave applications. The product is distinct from cable assemblies and antennas offered by the same manufacturer.
FAQ
What is the operating frequency range of the FMFL1011?
The FMFL1011 operates as a bandpass filter in the microwave region, with documented ranges citing either 20 GHz to 20.5 GHz or 19.2 GHz to 20.2 GHz depending on the specific source version.
What type of connectors does the FMFL1011 use?
The FMFL1011 is equipped with SMA female connectors for input and output signal interfacing.
