FMFL1012

Overview

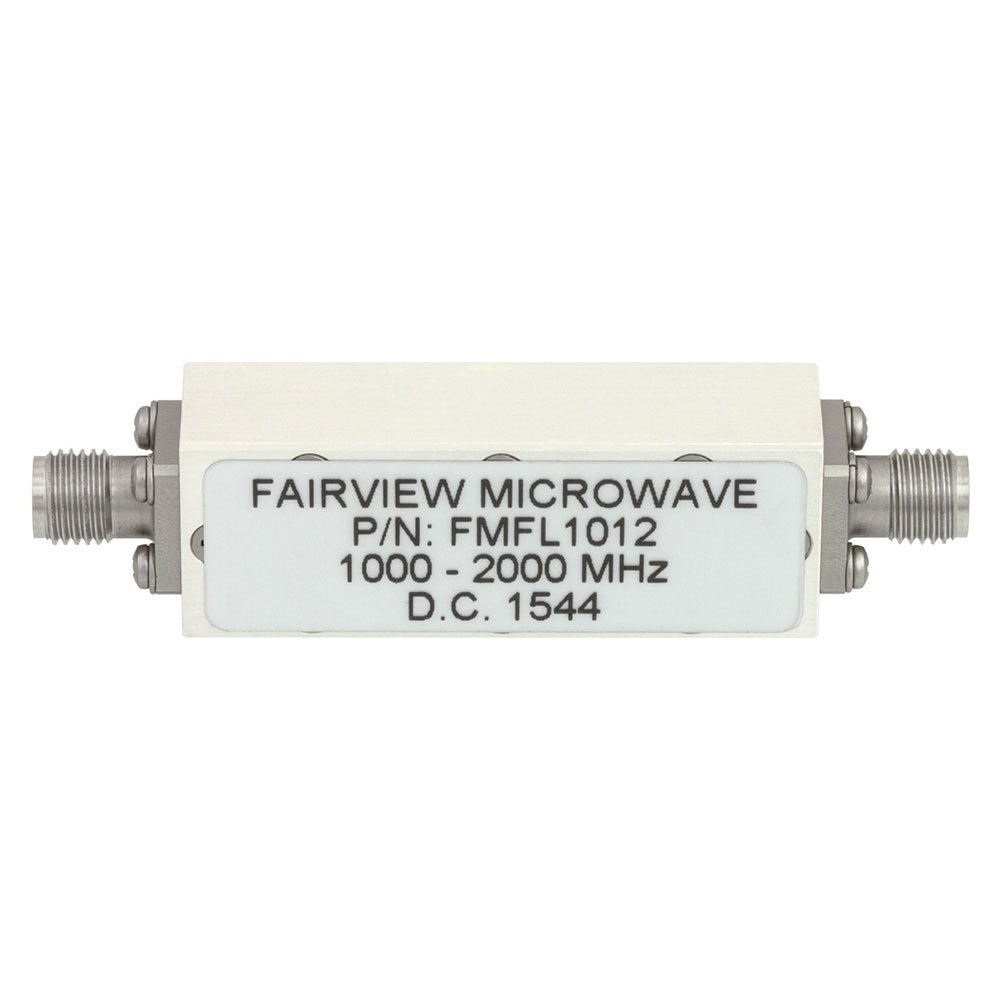

The FMFL1012 is a bandpass cavity filter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of 1 GHz to 2 GHz and features SMA female connectors. This component is categorized under filters and signal conditioning products. The unit weighs approximately 34.7 grams and is packaged in a bag. It serves as a specialized RF component for filtering signals within the specified microwave frequency band.

Feature Summary

• Provides bandpass filtering capabilities within the 1 GHz to 2 GHz frequency range
• Utilizes SMA female connectors for interface compatibility
• Constructed as a cavity filter for stable signal conditioning

Applications

• RF signal conditioning systems
• Microwave frequency filtering applications
• Communication equipment requiring bandpass characteristics

Procurement Notes

Verify the specific operating frequency range against official documentation, as conflicting data exists between 1-2 GHz and other ranges. Confirm connector type and polarity. Check current availability status as distribution may be limited or restricted in certain regions. Ensure compliance with RoHS standards if required for the application.

Selection Notes

Select this component when a bandpass filter is required for the 1 GHz to 2 GHz spectrum. Ensure system interfaces support SMA female connections. Consider the physical dimensions and weight for integration into existing enclosures. Verify that the cavity filter technology meets the necessary insertion loss and rejection specifications for the target application.

Part Context

This part belongs to the Fairview Microwave catalog of signal conditioning components. It falls under the broader category of RF filters, specifically cavity filters, which are known for high performance in microwave frequencies. The manufacturer specializes in RF, microwave, and millimeter-wave interconnect solutions.

FAQ

What is the operating frequency range of the FMFL1012?

The FMFL1012 operates from 1 GHz to 2 GHz.

What type of connectors does the FMFL1012 use?

It uses SMA female connectors.
