FMFL1013

Overview

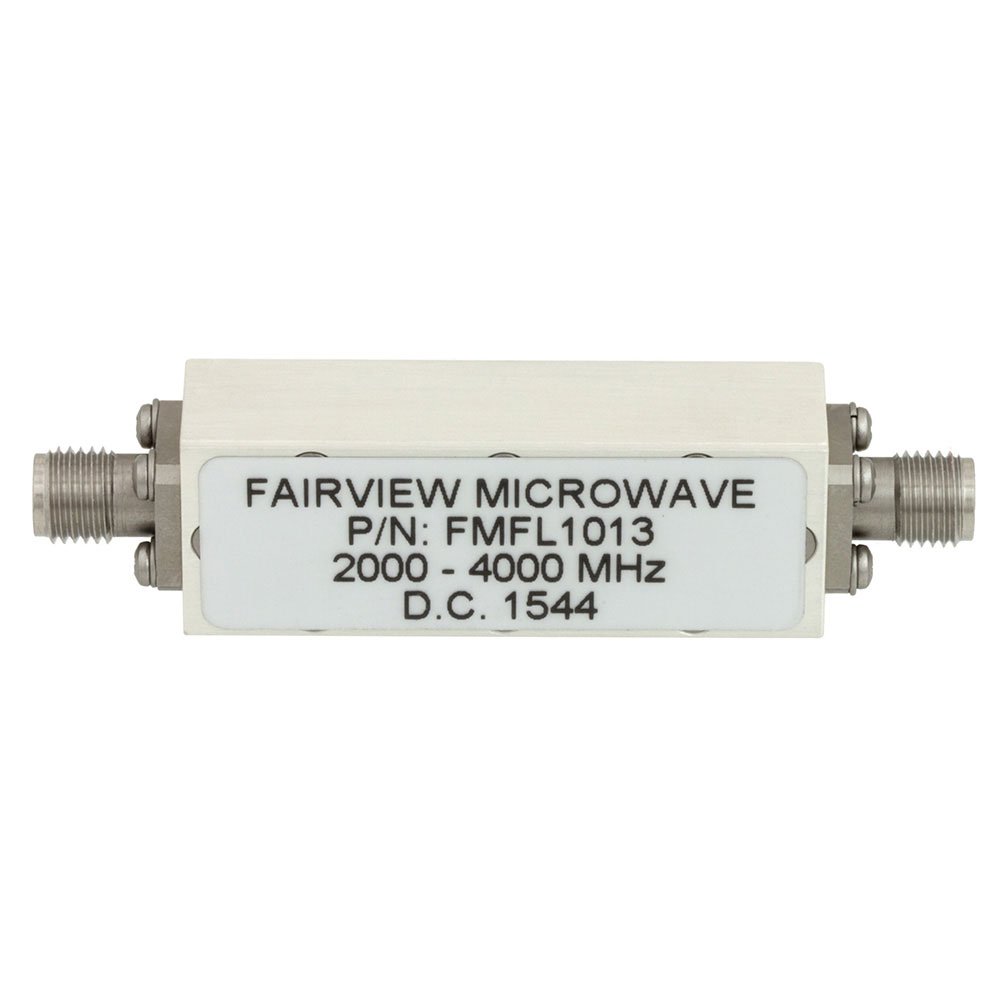

The FMFL1013 is a bandpass cavity filter manufactured by Fairview Microwave, designed for operation within the 2 GHz to 4 GHz frequency range. This component utilizes SMA connectors for signal interfacing and is packaged in a bag for handling. It serves as a passive RF module intended to select specific frequency bands while attenuating out-of-band signals in microwave applications.

Feature Summary

• Cavity construction for stable filtering performance
• SMA connector interface for standard integration

Applications

• Microwave communication systems
• RF test and measurement equipment
• Signal processing circuits requiring band selection

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the SMA connector polarity and mounting requirements align with the system design. Ensure environmental ratings meet operational needs. Cross-reference part numbers to avoid confusion with similar models from other manufacturers or different series within the same brand.

Selection Notes

Select this component when a fixed 2 GHz to 4 GHz passband is required. Consider the physical size constraints of the cavity design. Verify impedance matching requirements for the SMA interfaces. Evaluate thermal management needs if high power levels are present in the signal path. Compare insertion loss and rejection characteristics against system budget requirements.

Part Context

Fairview Microwave produces specialized RF components including filters, cables, and isolators. The FMFL1013 belongs to their bandpass filter lineup, targeting applications needing precise frequency selection. These components are typically used in professional RF environments where signal integrity and defined bandwidths are critical for system performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult the manufacturer for direct equivalents or updated series replacements.
