FMFL1014

Overview

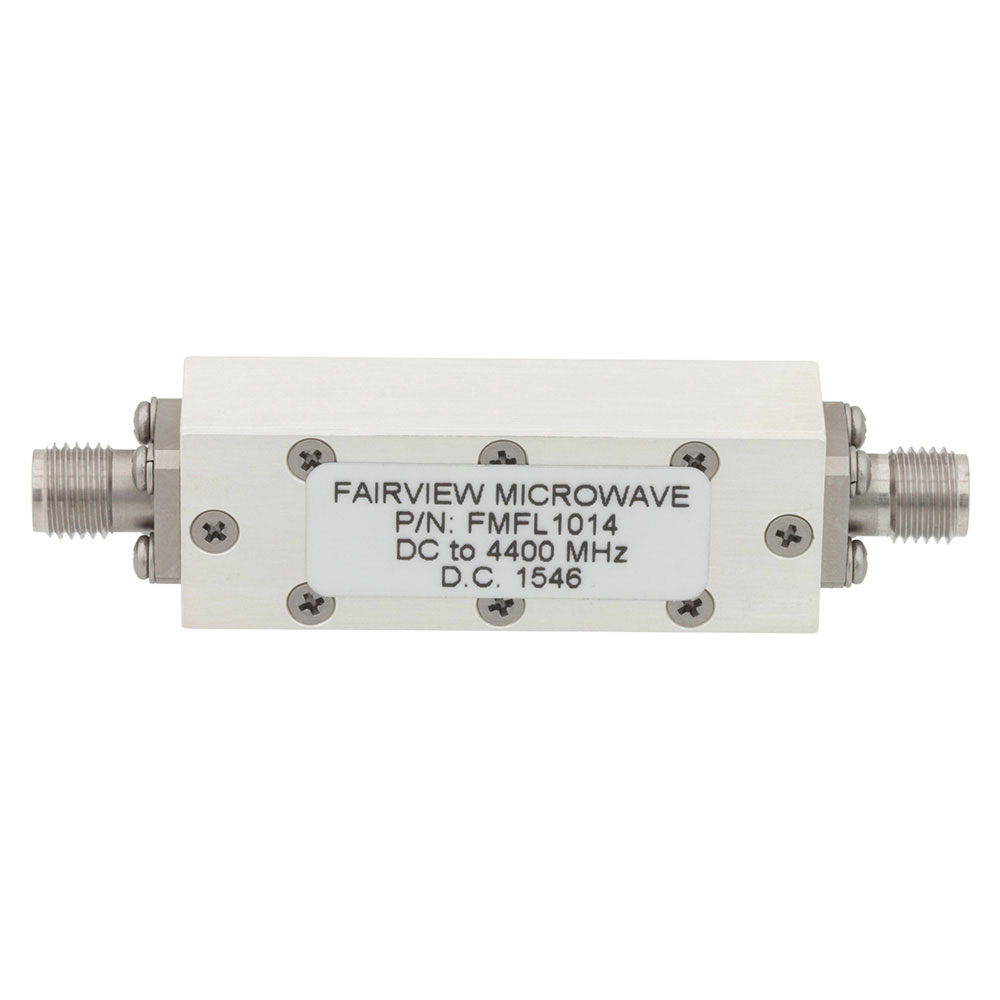

The Fairview Microwave FMFL1014 is a thirteen-section lowpass filter designed for RF applications. It operates from DC to 4.4 GHz with SMA female connectors. The component features an insertion loss of 1.5 dB and supports 10 W power handling. It provides excellent rejection of 50 dB at frequencies between 6 GHz and 12 GHz.

Feature Summary

• Thirteen-section lowpass filter design
• Excellent high-frequency rejection characteristics
• SMA female connector interface

Applications

• RF signal filtering
• Harmonic suppression
• Frequency band limiting

Procurement Notes

Verify the SMA connector gender and frequency range against system requirements. Confirm power handling specifications match operational loads. Ensure compatibility with existing RF infrastructure before procurement.

Selection Notes

Select this component for applications requiring attenuation above 4.4 GHz. Consider the 1.5 dB insertion loss impact on signal integrity. Evaluate the 10 W power rating for thermal management needs in the target environment.

Part Context

Fairview Microwave manufactures RF and microwave components. This lowpass filter is part of their catalog offering. It serves as a passive component for signal conditioning. The product supports various electronic testing and communication systems.

FAQ

What is the operating frequency range?

The FMFL1014 operates from DC to 4.4 GHz.

What type of connectors does it use?

It uses SMA female connectors.
