Product Detailed Parameters
- Description：LOWPASS FILTER SMA JACK 7 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：3.5GHz Center
- Bandwidth：7GHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.201" L x 0.551" W (30.50mm x 14.00mm)
- Height (Max)：0.451" (11.45mm)
Download product information
Overview

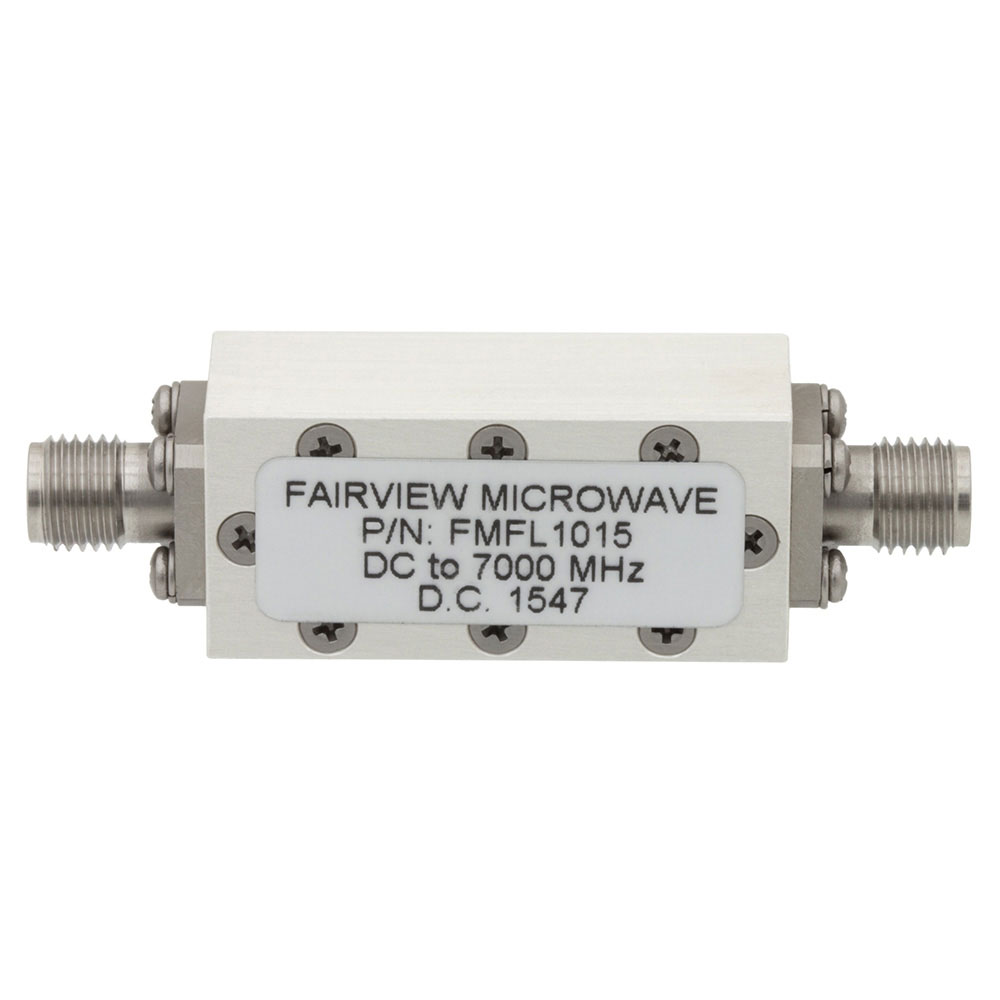

The FMFL1015 is a lowpass filter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates from DC to 7 GHz and features SMA female connectors. The component exhibits an insertion loss of 1.5 dB and supports a power handling capacity of 6 W. Packaged in a bag, this unit weighs approximately 34.7 g and is classified under the filters subcategory within signal conditioning products.
Feature Summary
- Operates as a lowpass filter with a frequency range extending from DC to 7 GHz
- Equipped with SMA female connectors for interface compatibility
- Supports 6 W power handling capability
Applications
- Signal conditioning systems requiring lowpass filtering
- RF circuit design operating up to 7 GHz
- Test and measurement equipment interfaces
Procurement Notes
Verify availability status directly with authorized distributors, as supply may be restricted in certain regions. Confirm connector polarity and package type match system requirements. Ensure environmental conditions align with component specifications. Review datasheet for mechanical dimensions and mounting constraints prior to integration.
Selection Notes
Select this component when a lowpass filter is required for frequencies up to 7 GHz. Verify that SMA female connectors are compatible with existing board layouts. Consider the 6 W power rating against system load requirements. Compare insertion loss specifications with alternative models if stricter attenuation is needed.
Part Context
This part belongs to Fairview Microwave's signal conditioning portfolio, specifically within the filters subcategory. It is categorized under RF Interconnects and Wireless & RF Integrated Circuits. The manufacturer produces various RF components including cable assemblies and amplifiers, positioning this filter as a passive signal processing element within their broader catalog.
FAQ
What is the maximum operating frequency?
The FMFL1015 operates from DC to 7 GHz.
What type of connectors does it use?
It uses SMA female connectors on both ends.
