Product Detailed Parameters
- Description：LOWPASS FILTER SMA JACK 11 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：5.5GHz Center
- Bandwidth：11GHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：1.5dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.201" L x 0.551" W (30.50mm x 14.00mm)
- Height (Max)：0.451" (11.45mm)
Download product information
Overview

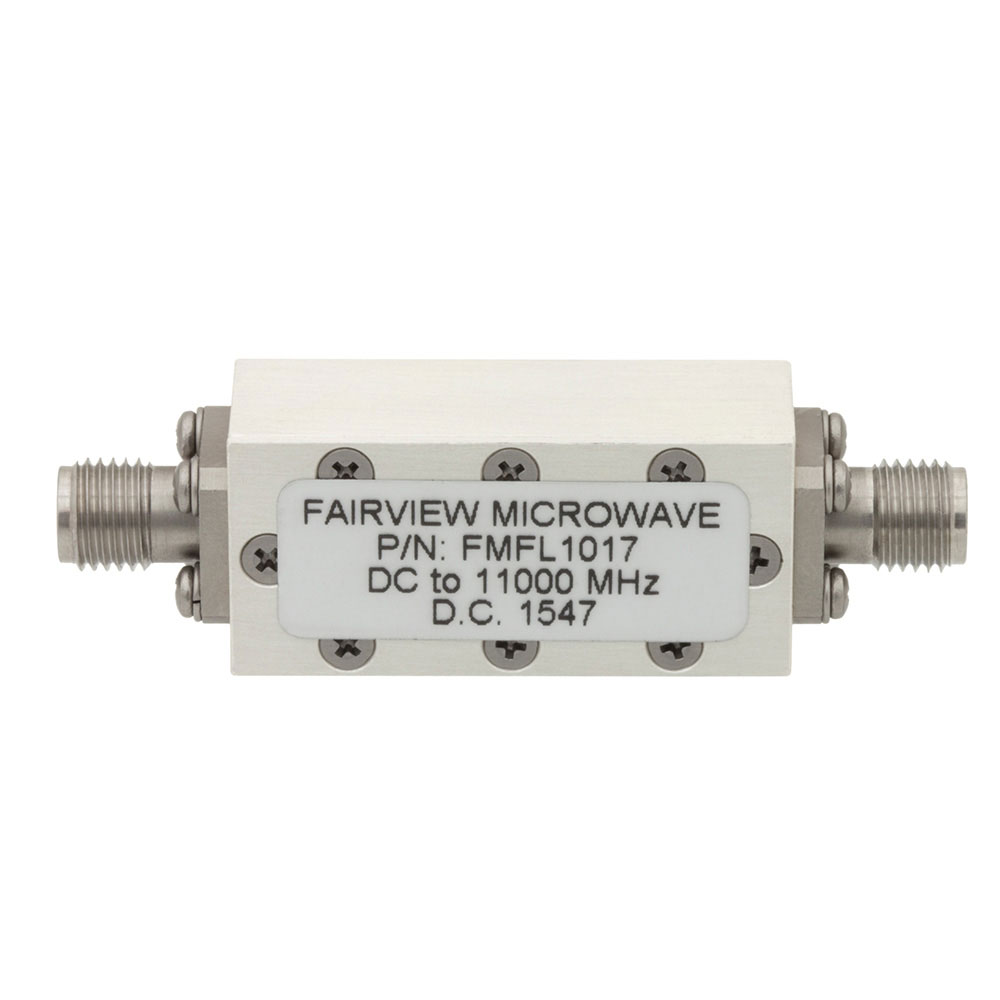

The FMFL1017 is a low-pass RF filter manufactured by Fairview Microwave. It features a center frequency of 5.5 GHz and is designed for signal conditioning applications in radio frequency systems. The component is RoHS compliant, ensuring adherence to environmental standards for restricted hazardous substances. This filter serves as a specialized passive device intended to attenuate frequencies above the specified cutoff while maintaining passband integrity.
Feature Summary
- Low-pass filtering capability centered at 5.5 GHz
- RoHS3 compliant construction for environmental safety
- Designed for RF signal conditioning tasks
Applications
- RF signal conditioning circuits
- Frequency selective attenuation systems
- Radio frequency test and measurement equipment
Procurement Notes
Verify the exact datasheet specifications directly from Fairview Microwave or authorized distributors before procurement. Confirm that the 5.5 GHz center frequency aligns with system requirements. Ensure compatibility with existing RF infrastructure and mounting constraints. Check for any specific handling instructions related to the component's sensitivity.
Selection Notes
Select this component when a fixed 5.5 GHz low-pass response is required. Evaluate insertion loss and stopband rejection characteristics against system noise floor requirements. Consider physical size and connector type if integrated into a larger assembly. Verify thermal stability if operating in varying environmental conditions.
Part Context
Fairview Microwave provides a broad portfolio of RF and microwave components. The FMFL1017 belongs to their line of passive filters used for spectrum management. It complements their adapters and connectors by offering frequency control capabilities within RF chains.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMFL1017. Users must source new units or redesign around equivalent specifications from other manufacturers if obsolescence occurs.
FAQ
What is the primary function of the FMFL1017?
It functions as a low-pass RF filter with a center frequency of 5.5 GHz.
Is the FMFL1017 environmentally compliant?
Yes, it is RoHS3 compliant.
