FMFL1019

Overview

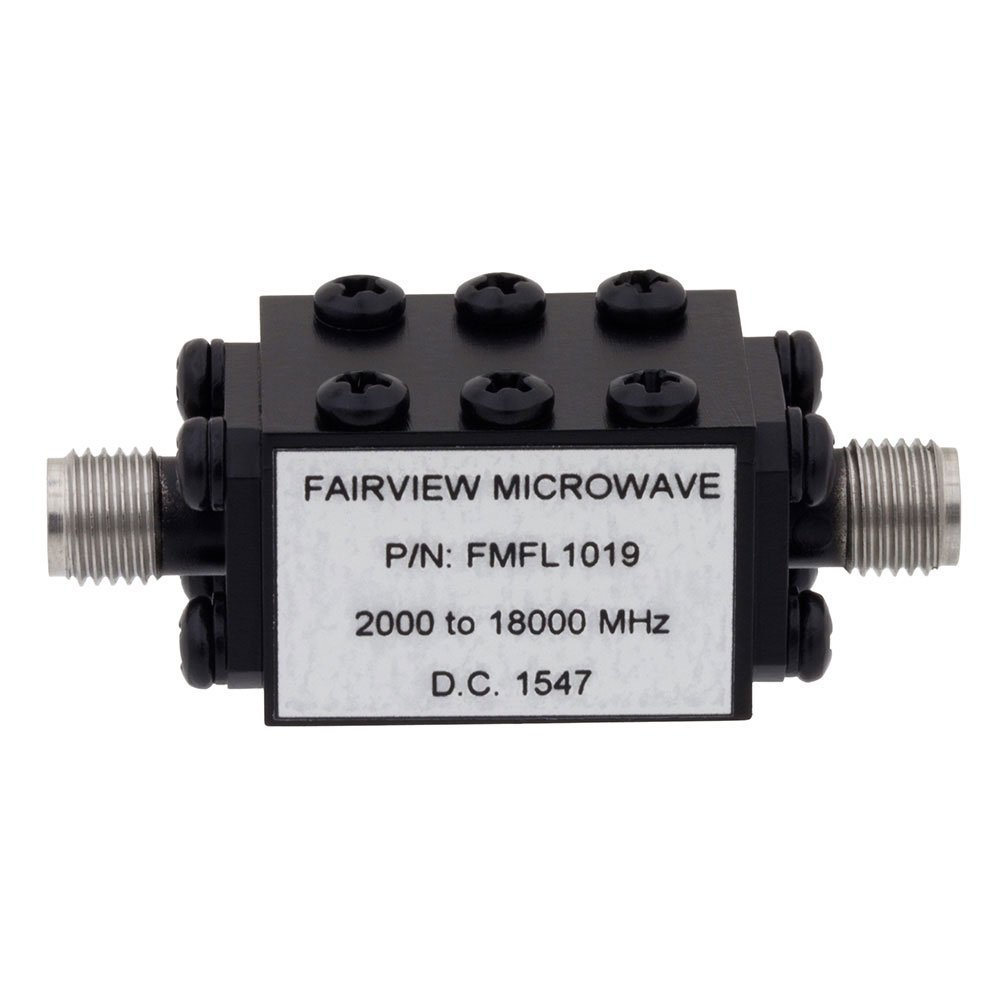

The FMFL1019 is a high-pass filter manufactured by Fairview Microwave. It features an SMA jack interface and operates within a frequency range of 2 GHz to 18 GHz. This component is designed for signal conditioning applications requiring specific frequency rejection characteristics above the cutoff point.

Feature Summary

• Provides high-pass filtering functionality with a defined cutoff at 2 GHz
• Utilizes SMA jack connector interface for integration
• Operates effectively up to 18 GHz

Applications

• RF signal conditioning circuits
• Frequency selective filtering in wireless systems
• Test and measurement equipment

Procurement Notes

Verify the SMA jack configuration and frequency specifications against system requirements before procurement. Confirm availability status as distribution data may indicate limited regional sales or new product status. Ensure compatibility with existing RF infrastructure interfaces.

Selection Notes

Select this component when a high-pass filter is required between 2 GHz and 18 GHz. The SMA jack interface dictates mechanical compatibility. Consider insertion loss and power handling if detailed datasheet parameters are available, though these are not explicitly listed in the provided summary.

Part Context

Fairview Microwave produces various RF components including filters, antennas, and cable assemblies. The FMFL1019 belongs to their filter category, specifically addressing high-frequency signal management needs in the UHF and microwave bands using standard SMA connectors.

FAQ

What is the operating frequency range of the FMFL1019?

The FMFL1019 operates as a high-pass filter from 2 GHz to 18 GHz.

What type of connector does the FMFL1019 use?

The component utilizes an SMA jack interface.
