FMFL8701A

Overview

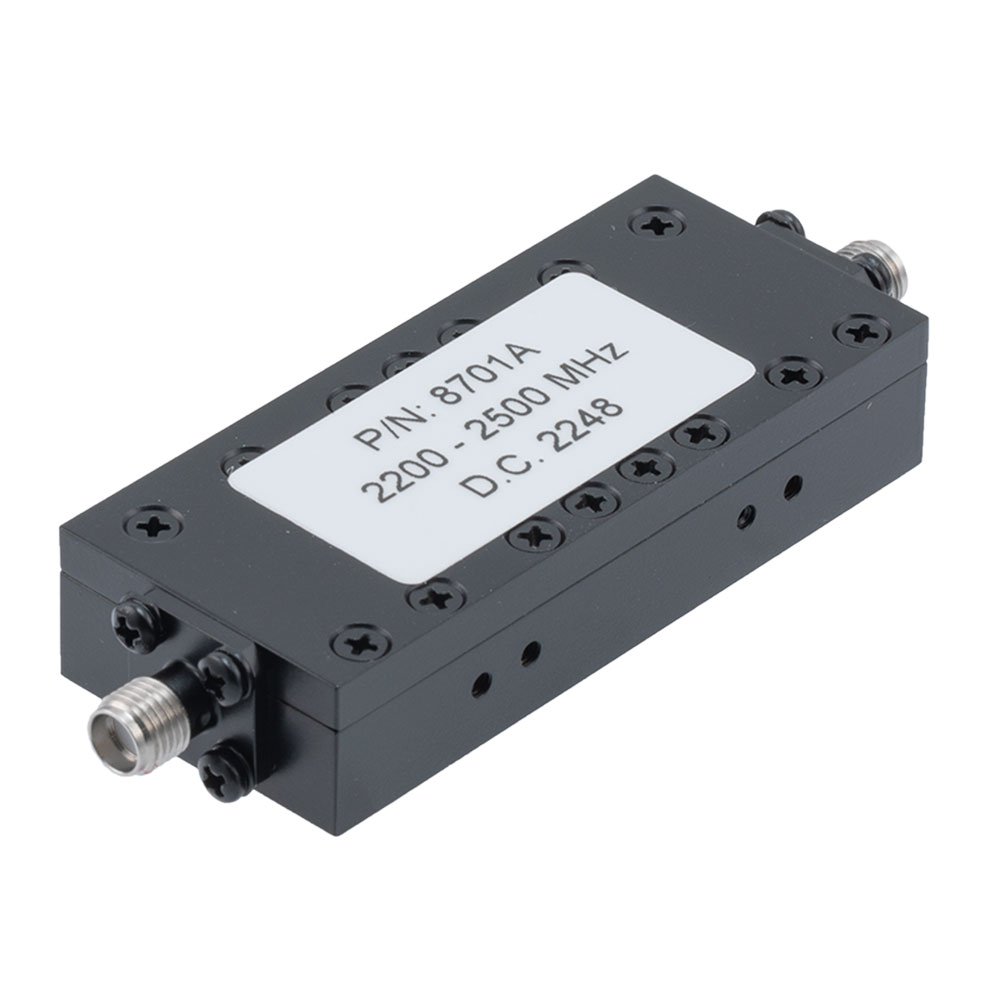

The FMFL8701A is a bandpass cavity filter manufactured by Fairview Microwave, designed for operation within the 2.2 GHz to 2.5 GHz frequency range. This component utilizes SMA connectors and is engineered for RF filtering applications requiring precise signal selection in this specific UHF/L-band spectrum.

Feature Summary

• Bandpass filtering capability restricted to the 2.2-2.5 GHz operational range
• Constructed using cavity filter technology for high performance
• Equipped with SMA connector interfaces

Applications

• RF signal processing systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the SMA connector gender and flange configuration against system requirements before procurement. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors, as availability may vary. Ensure the operating frequency aligns strictly with the 2.2-2.5 GHz specification.

Selection Notes

Select this component when a fixed bandpass response between 2.2 GHz and 2.5 GHz is required. The SMA interface dictates compatibility with standard coaxial connections. Consider physical size and mounting constraints associated with cavity filter designs compared to planar alternatives.

Part Context

Fairview Microwave produces specialized RF components including filters and cables. The FMFL8701A belongs to their RF Filters category, specifically utilizing cavity construction methods to achieve desired selectivity and rejection characteristics within the specified frequency band.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and electrical specifications carefully if considering alternative manufacturers.
