FMFX2002

Overview

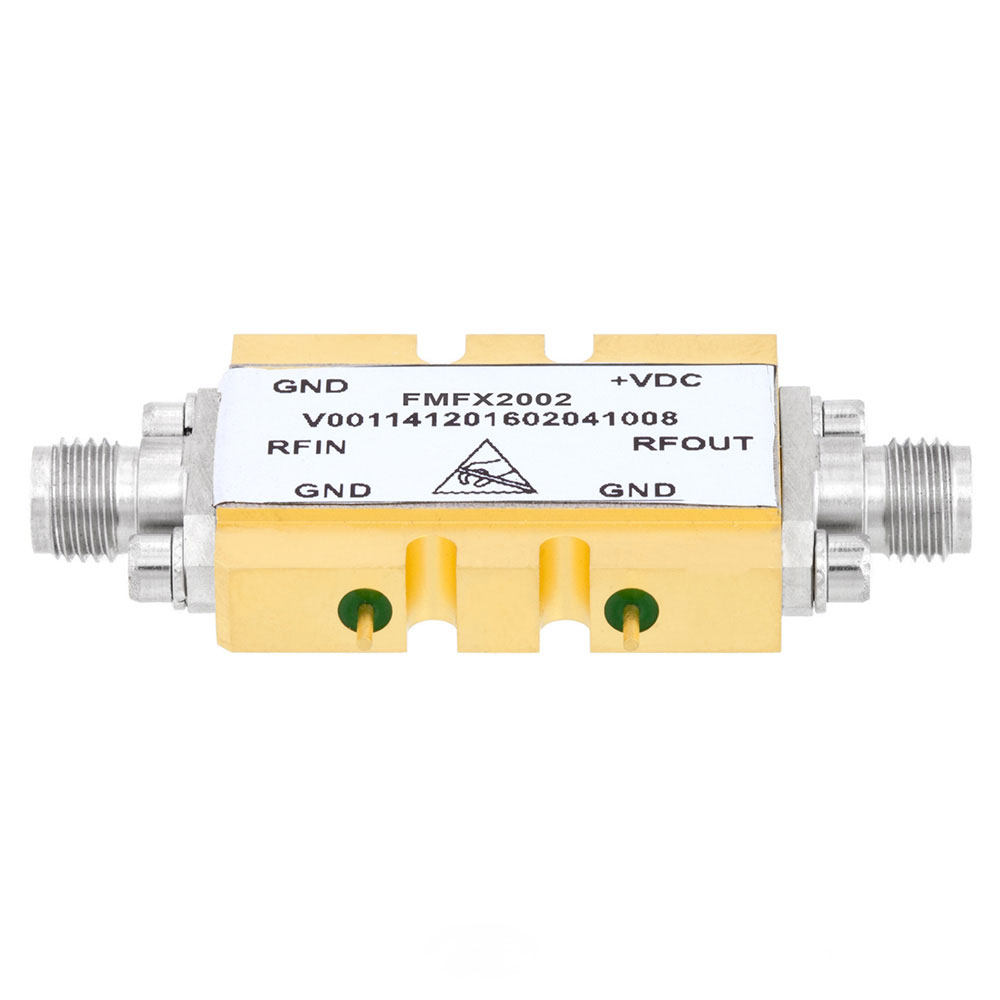

The FMFX2002 is a low noise X2 active broadband frequency multiplier module manufactured by Fairview Microwave. It operates with a 5V supply and covers an output frequency bandwidth from 32 GHz to 46 GHz. The device features a rugged 3.5-millimeter connectorized design, suitable for high-power environments with maximum power ratings up to 2 Watts. This component functions as a signal conditioning element within RF and microwave systems.

Feature Summary

• Active broadband frequency multiplication with X2 gain factor
• Wide output frequency coverage spanning 32 GHz to 46 GHz
• Rugged 3.5mm connectorized interface design

Applications

• VSAT communication systems
• High-power RF environment testing
• Microwave signal generation and conditioning

Procurement Notes

Verify the specific datasheet version and technical specifications directly from Fairview Microwave official documentation before integration. Confirm that the 3.5mm connector type aligns with system requirements. Ensure the 5V supply voltage and 2W power rating are compatible with the target application infrastructure. Cross-reference part numbers to avoid confusion with similar passive components or different connector variants.

Selection Notes

Select this module when a wideband frequency doubling solution is required in the 32-46 GHz range. The choice depends on the need for an active multiplier rather than passive harmonic generators. Consider the 3.5mm interface compatibility and the requirement for high-power handling capabilities up to 2 Watts. Verify that the low noise characteristic meets the system's signal integrity standards.

Part Context

Fairview Microwave specializes in RF, microwave, and wireless passive and active components. The FMFX2002 belongs to their family of signal conditioning devices, specifically designed for frequency multiplication applications. It complements their portfolio of connectors and cable assemblies by providing essential active functionality for complex microwave systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must consult Fairview Microwave directly for equivalent products or cross-references.
