FMFX2010

Overview

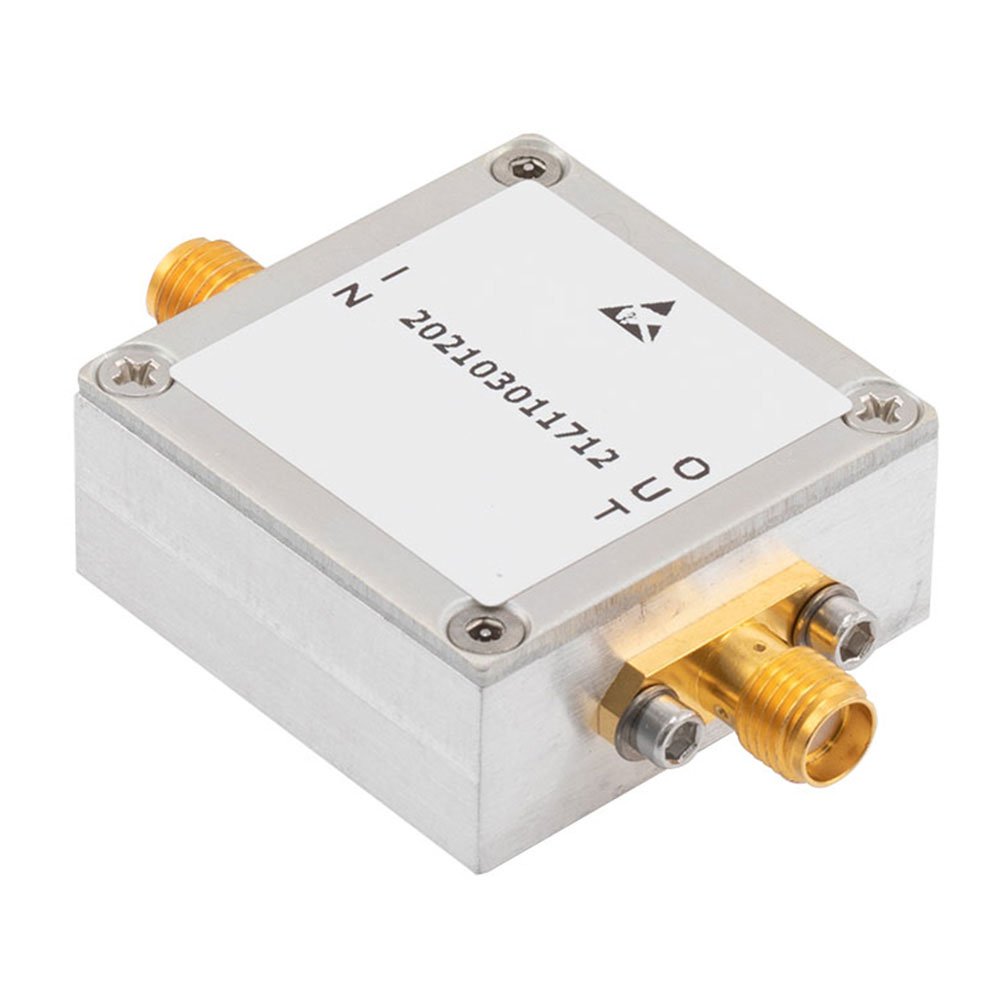

The FMFX2010 is a general-purpose RF frequency multiplier manufactured by Fairview Microwave. It operates within two distinct frequency bands: 10 MHz to 1 GHz and 20 MHz to 2 GHz. The component utilizes SMA connectors for interface connectivity. This device is designed for versatile applications requiring frequency multiplication in wireless and RF integrated circuit systems.

Feature Summary

• General-purpose frequency multiplication functionality
• Dual-band operational capability covering low and high microwave ranges
• SMA connector interface for standard integration

Applications

• Wireless communication systems
• RF test and measurement equipment
• Signal generation modules

Procurement Notes

Verify the specific SMA connector gender and mating requirements against your system design before procurement. Confirm that the operating environment falls within the specified frequency ranges of 10 MHz to 1 GHz and 20 MHz to 2 GHz. Ensure compatibility with the manufacturer's current production status and lead times, as these may vary based on manufacturing schedules.

Selection Notes

Select this component when dual-band frequency multiplication is required without complex custom design. The SMA interface simplifies integration into existing RF setups. Consider the power handling and linearity specifications if not explicitly detailed in the primary datasheet, as these are critical for signal integrity in multiplier applications.

Part Context

Fairview Microwave specializes in RF and microwave components, including mixers, attenuators, and cable assemblies. The FMFX2010 fits within their portfolio of active RF integrated circuits and modules, complementing passive components like the SA18H-20 attenuator and FMMX1010 mixer.

FAQ

What are the specific frequency bands for the FMFX2010?

The FMFX2010 operates in two bands: 10 MHz to 1 GHz and 20 MHz to 2 GHz.

What type of connectors does the FMFX2010 use?

The component is equipped with SMA connectors for input and output interfaces.
