Product Detailed Parameters
- Description：FREQ MULT SMA JACK 8-16 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Frequency Multiplier
- Frequency：4GHz ~ 8GHz, 8GHz ~ 16GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

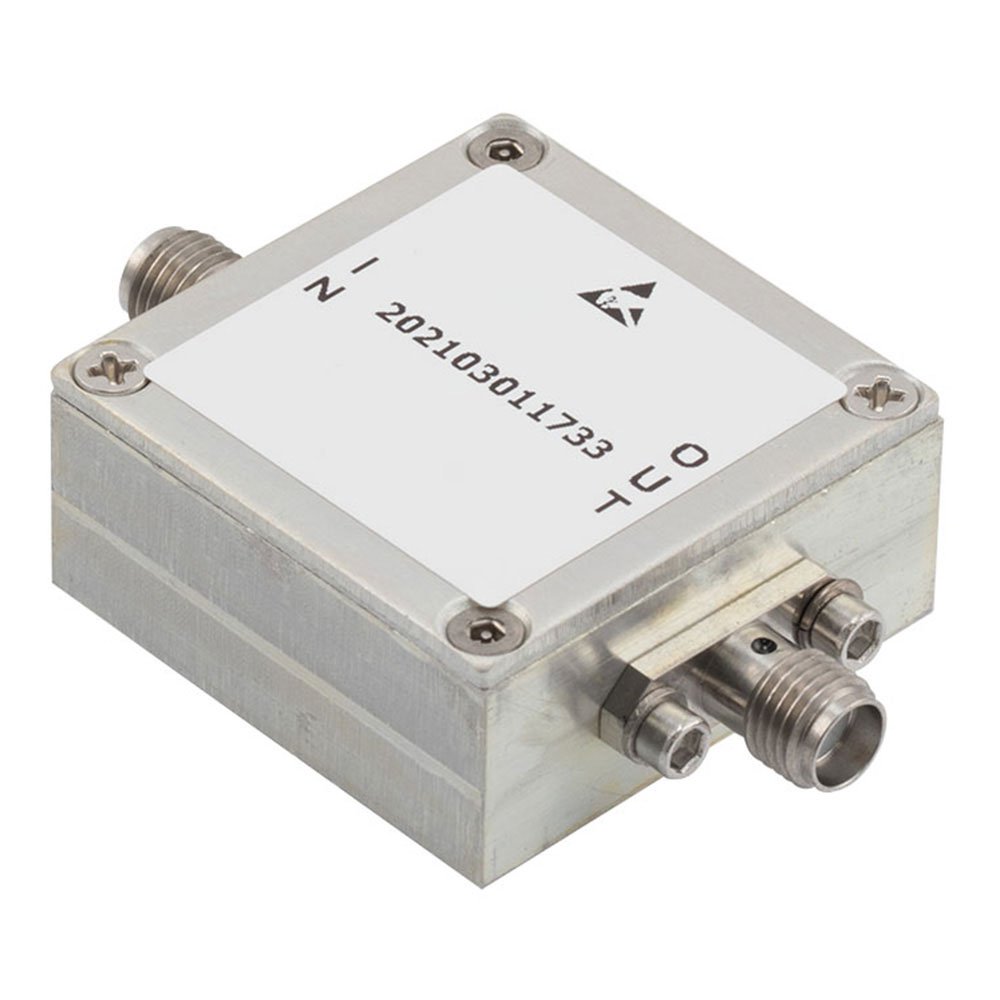

The FMFX2014 is a frequency multiplier manufactured by Fairview Microwave, designed for signal processing applications. It operates with an input frequency range of 4 GHz to 8 GHz and produces an output frequency range of 8 GHz to 16 GHz. The device features SMA female connectors for interface connectivity. Key electrical specifications include a conversion loss of 17 dB and a maximum output power rating of 20 Watts. The unit is constructed with stainless steel housing and utilizes solder termination methods.
Feature Summary
- Provides 2x frequency multiplication functionality
- Utilizes SMA female connector interfaces
- Features stainless steel construction
Applications
- RF signal generation systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the current availability status as the component is listed as discontinued in some sources. Confirm technical compatibility with existing system requirements before acquisition. Check for authorized distributor channels to ensure product authenticity. Review datasheet specifications for any updates regarding performance characteristics or environmental ratings.
Selection Notes
Select this component when a 2x frequency multiplier is required for converting 4-8 GHz signals to 8-16 GHz outputs. Ensure the system can accommodate the specified 17 dB conversion loss. Verify that SMA female connectors match the board layout or cable assembly interfaces. Consider the stainless steel housing for environmental durability.
Part Context
This part belongs to the RF IC Frequency Multipliers category within Fairview Microwave's portfolio. It serves as a general-purpose module for microwave frequency synthesis. The device is distinct from attenuators and directional couplers offered by the same manufacturer, focusing specifically on frequency conversion tasks.
Replacement Considerations
No public confirmed substitute part numbers are available. As the component is listed as discontinued, alternative solutions may require custom design or selection of different manufacturers offering similar frequency multiplication capabilities.
