FMFX2015

Overview

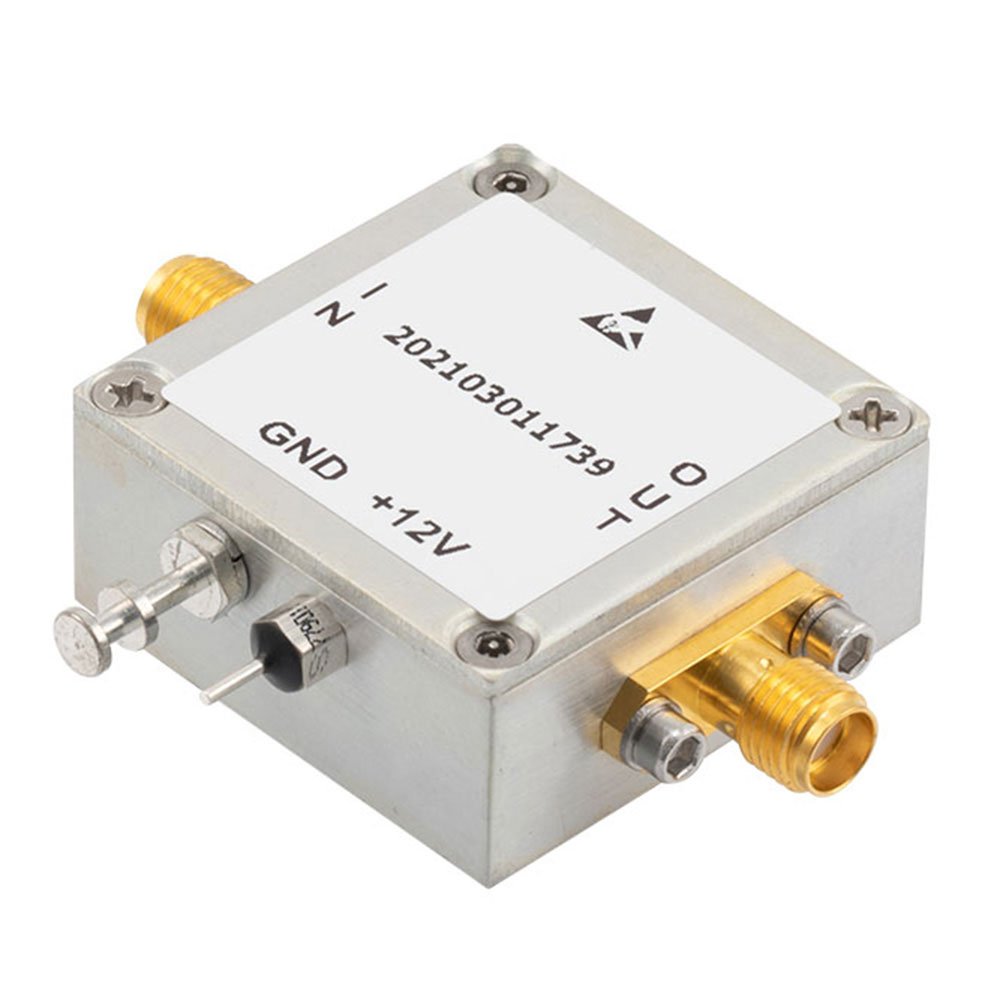

The FMFX2015 is an active signal conditioning component manufactured by Fairview Microwave, classified as a frequency multiplier. It features SMA female connectors and operates with an input frequency range of 250 MHz to 350 MHz. The device provides a 3x multiplication factor, resulting in an output frequency range of 750 MHz to 1.05 GHz. Designed for general-purpose RF applications, this module facilitates frequency conversion within specified microwave bands.

Feature Summary

• Active frequency multiplication functionality
• SMA female connector interface
• General-purpose RF signal conditioning

Applications

• Microwave communication systems
• Signal generation circuits
• Frequency synthesis modules

Procurement Notes

Verify the specific datasheet version for accurate electrical characteristics before integration. Confirm that the SMA female interface aligns with system requirements. Ensure operating temperatures and power supply conditions match the official specifications. Check for any recent updates to the product status or pinout configuration.

Selection Notes

Select this component when a fixed 3x frequency multiplication is required from the 250-350 MHz input band. The SMA interface suits standard test and measurement setups. Consider thermal management and supply voltage stability for reliable operation in general-purpose RF environments.

Part Context

This part belongs to Fairview Microwave's signal conditioning portfolio, specifically designed for RF frequency translation tasks. It serves as a dedicated multiplier module rather than a passive filter or amplifier, addressing specific spectral conversion needs in microwave engineering applications.
