Product Detailed Parameters
- Description：FREQ MULT SMA JACK 1.8-2.25 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Frequency Multiplier
- Frequency：600MHz ~ 750MHz, 1.8GHz ~ 2.25GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

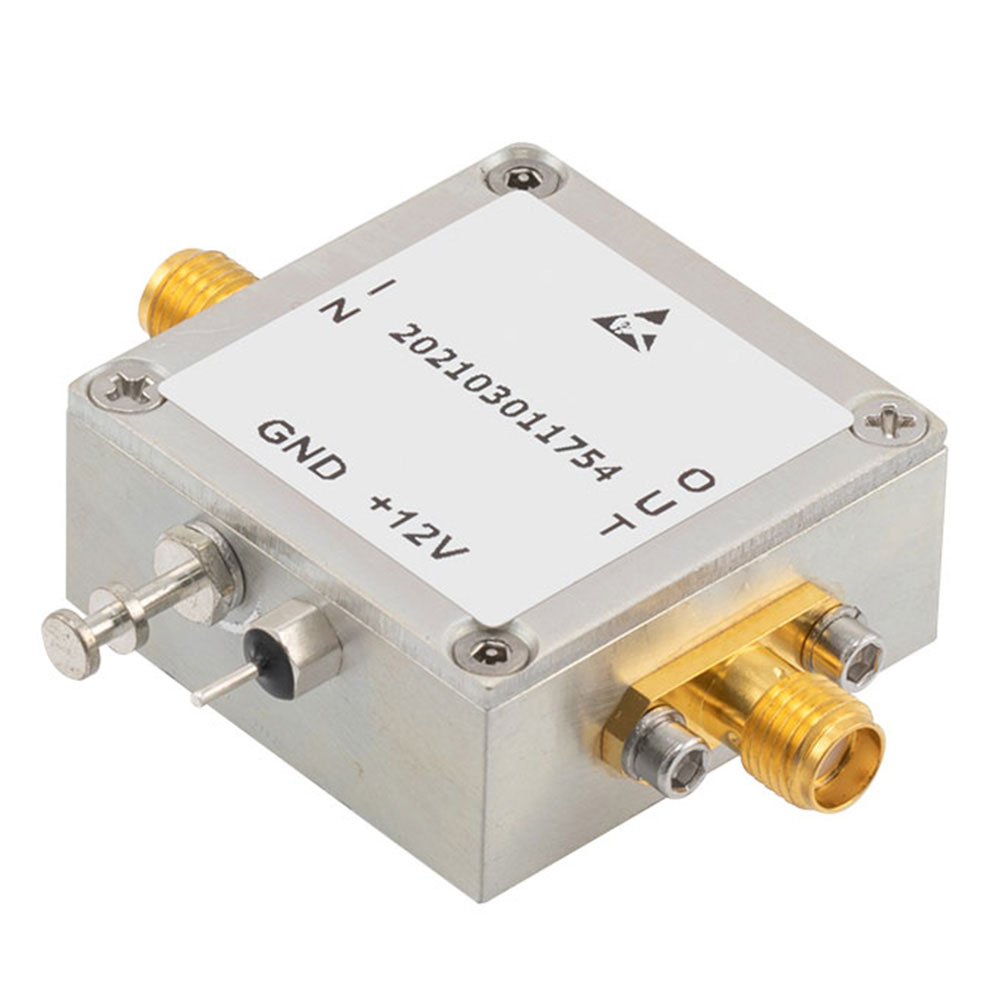

The FMFX2018 is a general-purpose RF frequency multiplier module manufactured by Fairview Microwave. It operates within a frequency range of 600 MHz to 750 MHz and 1.8 GHz to 2.25 GHz, utilizing SMA connectors for signal interfacing. This component is designed for signal conditioning applications requiring frequency multiplication in radio frequency systems.
Feature Summary
- Provides frequency multiplication functionality for general-purpose RF applications
- Features SMA connectors for reliable signal interfacing
- Supports operation across dual frequency bands
Applications
- General-purpose RF signal conditioning
- Frequency conversion in radio systems
- Signal processing modules
Procurement Notes
Verify the specific SMA connector gender and mating requirements against system interface specifications. Confirm that the input and output frequency ranges align with the target application's operational bandwidth. Ensure environmental conditions meet the module's operating limits. Cross-reference the manufacturer datasheet for detailed electrical performance characteristics before integration.
Selection Notes
Select this module when a fixed frequency multiplication solution is required for general RF applications. Consider the SMA interface compatibility with existing circuitry. Evaluate the dual-band frequency coverage to ensure it meets both fundamental and harmonic requirements. Assess thermal management needs based on the expected power levels in the signal chain.
Part Context
Fairview Microwave specializes in high-quality RF and microwave components, including attenuators, adapters, and amplifiers. The FMFX2018 fits within their portfolio of precision RF interconnect devices and modules, supporting industries that require reliable signal integrity and consistent performance across various frequency ranges.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMFX2018. Verify functional equivalence carefully if considering alternative frequency multipliers from other manufacturers.
