FMFX2019

Overview

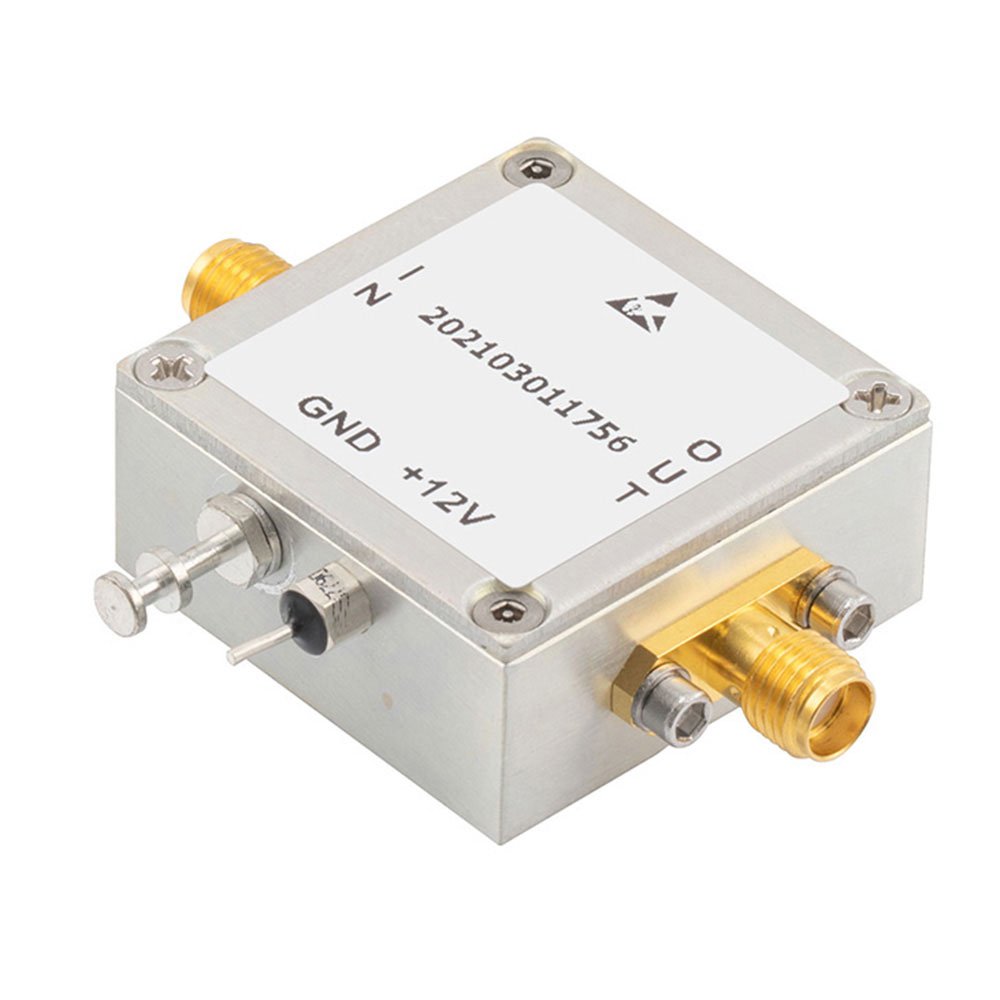

The FMFX2019 is a general-purpose frequency multiplier manufactured by Fairview Microwave. It operates with an input frequency range of 700 MHz to 1 GHz and provides an output in the 2.1 GHz to 3 GHz band. The device utilizes SMA female connectors for signal interfacing. This active component functions as a 3x frequency multiplier, designed for signal conditioning applications within the specified microwave frequency spectrum.

Feature Summary

• Active frequency multiplication functionality
• SMA female connector interface
• General-purpose RF signal conditioning

Applications

• Microwave signal generation systems
• Frequency synthesis circuits
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version when ordering, as technical specifications may be subject to revision. Confirm that the SMA female connector type aligns with your system requirements. Ensure the input frequency range of 700 MHz to 1 GHz matches your source signal before procurement. Check for any updated compliance documentation or environmental certifications required for your specific deployment region.

Selection Notes

Select this component when a fixed 3x multiplication ratio is required between the 700 MHz to 1 GHz and 2.1 GHz to 3 GHz bands. The SMA interface suits standard benchtop or modular RF setups. Consider thermal management if operating near maximum power limits. Evaluate alternative multipliers if different harmonic orders or connector types are necessary for the design.

Part Context

Fairview Microwave specializes in passive and active RF components, including attenuators, adapters, and modules. The FMFX2019 belongs to their line of active signal conditioning devices. These products support various wireless and microwave applications requiring precise frequency conversion. The manufacturer focuses on ruggedized designs suitable for demanding operational environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
