FMFX2020

Overview

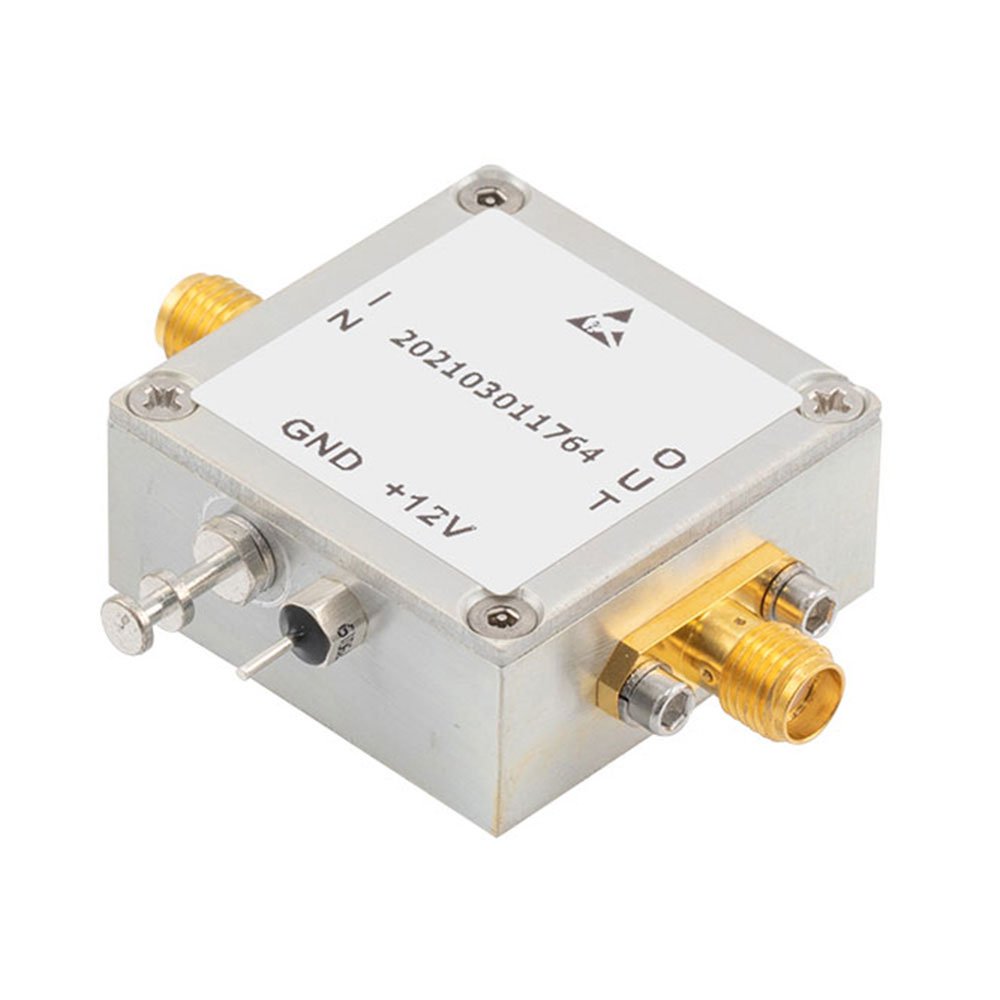

The FMFX2020 is an active frequency multiplier module manufactured by Fairview Microwave. It operates within a fundamental input frequency range of 950 MHz to 1.5 GHz and generates an output in the 2.85 GHz to 4.5 GHz band, utilizing SMA female connectors for interface.

Feature Summary

• Active frequency multiplication functionality
• SMA female connector interfaces

Applications

• RF signal generation systems
• Frequency synthesis applications
• Microwave test equipment

Procurement Notes

Verify the specific datasheet for electrical performance metrics such as conversion loss, harmonic suppression, and power handling capabilities. Confirm that the SMA connector gender and mating requirements align with system design specifications before procurement.

Selection Notes

Select this component when a compact solution is required to upconvert signals from the sub-2 GHz range to the microwave spectrum. Ensure the host system supports the necessary drive levels for the active multiplier circuit to function correctly within the specified frequency bands.

Part Context

This module belongs to Fairview Microwave's RF ICs and Modules category, designed for general-purpose frequency multiplication tasks. It provides a standardized interface solution for integrating frequency conversion capabilities into broader RF architectures.

Replacement Considerations

No public confirmed substitute part numbers are available.
