FMFX2023

Overview

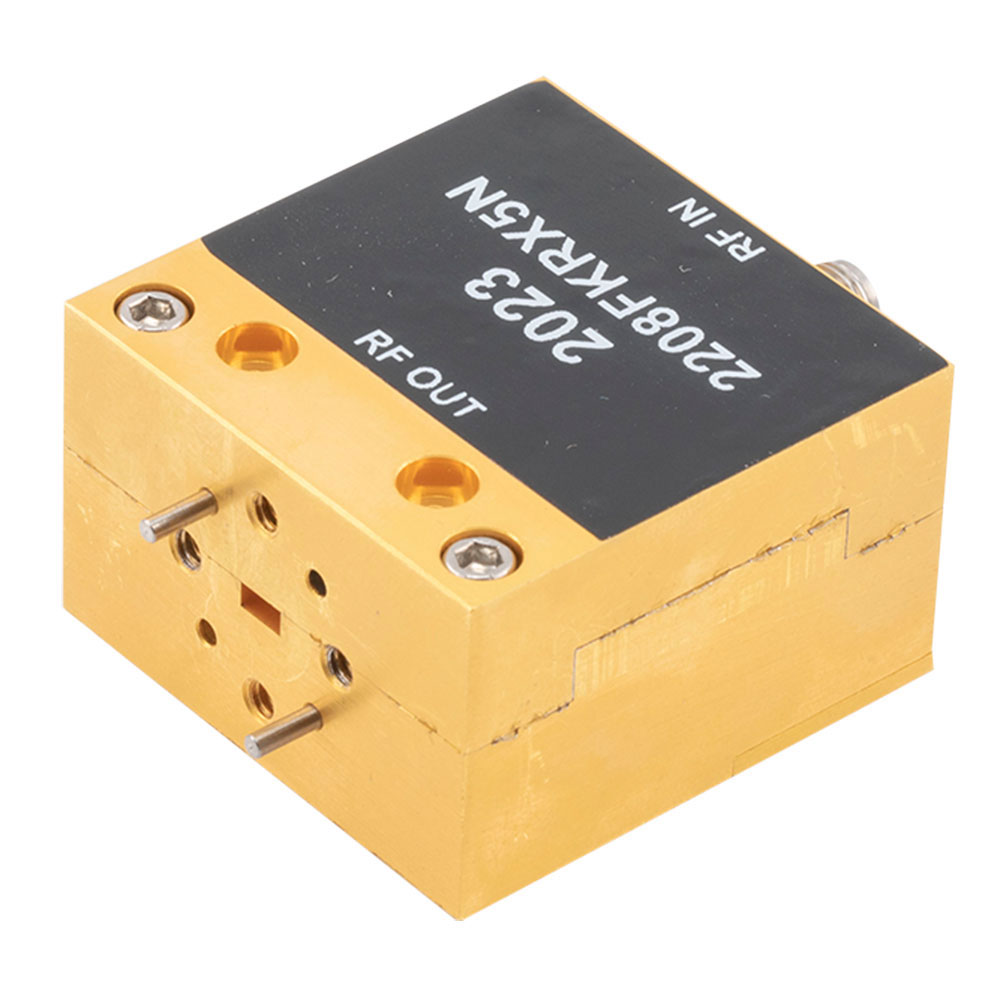

The FMFX2023 is an RF IC multiplier module manufactured by Fairview Microwave. It operates within a frequency range of 12.5GHz to 18.75GHz. The component utilizes SMA connectors for interface connectivity. This module is designed for radar applications requiring signal multiplication functions.

Feature Summary

• Integrated RF IC multiplier functionality
• SMA connectorized design for standard interfacing

Applications

• Radar systems
• RF signal processing modules

Procurement Notes

Verify the specific datasheet provided by Fairview Microwave or authorized distributors for complete electrical specifications and mechanical drawings. Confirm that the SMA connector type matches system requirements. Ensure environmental ratings align with operational conditions. Check for any specific handling instructions related to the RF IC module integrity during installation.

Selection Notes

Select this module when a fixed-frequency multiplier solution is required within the 12.5GHz to 18.75GHz band. Consider the SMA interface compatibility with existing PCB or cable assemblies. Evaluate the thermal management needs for the enclosed module format compared to discrete components. Verify that the output power levels meet the downstream stage requirements without additional amplification.

Part Context

Fairview Microwave specializes in RF, microwave, and wireless passive components. The FMFX2023 falls under their RF miscellaneous ICs and modules category. This product line typically includes specialized active and passive elements for high-frequency testing and communication systems, offering integrated solutions rather than discrete bare dies.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMFX2023. Due to the proprietary nature of RF IC multipliers, direct functional equivalents may not exist. Custom design adaptation may be necessary if replacement is required.
