FMFX2026

Overview

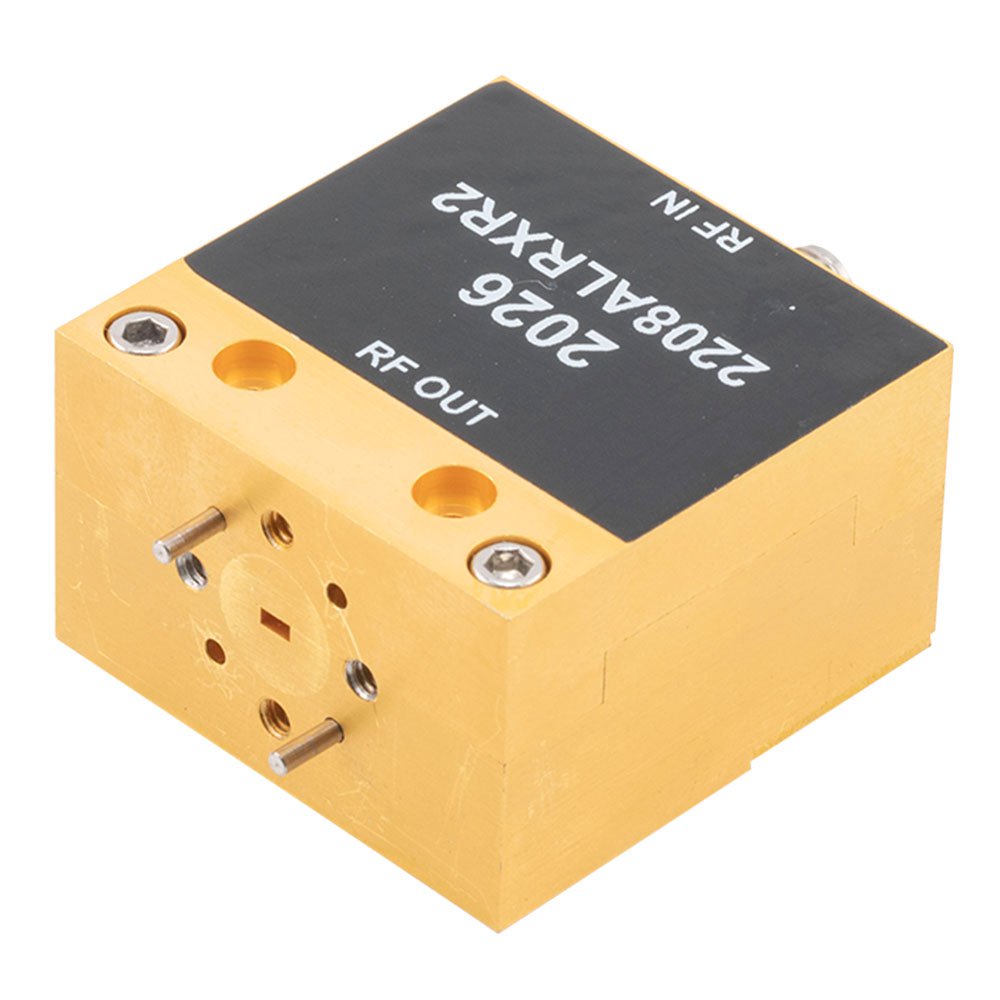

The FMFX2026 is a signal conditioning component classified as an active frequency multiplier module. It utilizes WR-10 waveguide interfaces equipped with UG-387/U-M flanges for secure mechanical connection and alignment. The device operates within a frequency range of 75 GHz to 110 GHz, providing output signals in this millimeter-wave spectrum. It delivers a maximum output power of +10 dBm. The unit weighs 90.718 grams and is packaged in a bag for distribution.

Feature Summary

• Active frequency multiplication functionality integrated into a compact module design
• WR-10 waveguide interface configuration ensures precise high-frequency signal transmission
• UG-387/U-M flange mounting system provides robust mechanical stability and alignment

Applications

• Millimeter-wave communication systems requiring frequency synthesis
• Radar test and measurement equipment operating in the 75-110 GHz band
• Scientific research instruments utilizing high-frequency signal generation

Procurement Notes

Verify the specific datasheet version and technical specifications directly from Fairview Microwave before procurement. Confirm that the WR-10 waveguide dimensions and UG-387/U-M flange standards match your system requirements. Ensure handling procedures comply with electrostatic discharge protocols for sensitive active components. Check current availability status as supply may be restricted or subject to production lead times.

Selection Notes

Select the FMFX2026 when a dedicated active frequency multiplier is required for the 75 GHz to 110 GHz range. This module is suitable for applications needing +10 dBm output power without external amplification stages. Consider the WR-10 waveguide form factor if space constraints favor integrated waveguide solutions over coaxial alternatives. Evaluate thermal management needs based on the active nature of the multiplier circuitry.

Part Context

Fairview Microwave produces specialized RF and microwave components for testing and industrial applications. The FMFX2026 belongs to their signal conditioning product line, specifically focusing on frequency conversion technologies. This module addresses the need for reliable millimeter-wave signal generation in professional environments where standard coaxial connectors cannot support such high frequencies.
