FMHFL0001

Overview

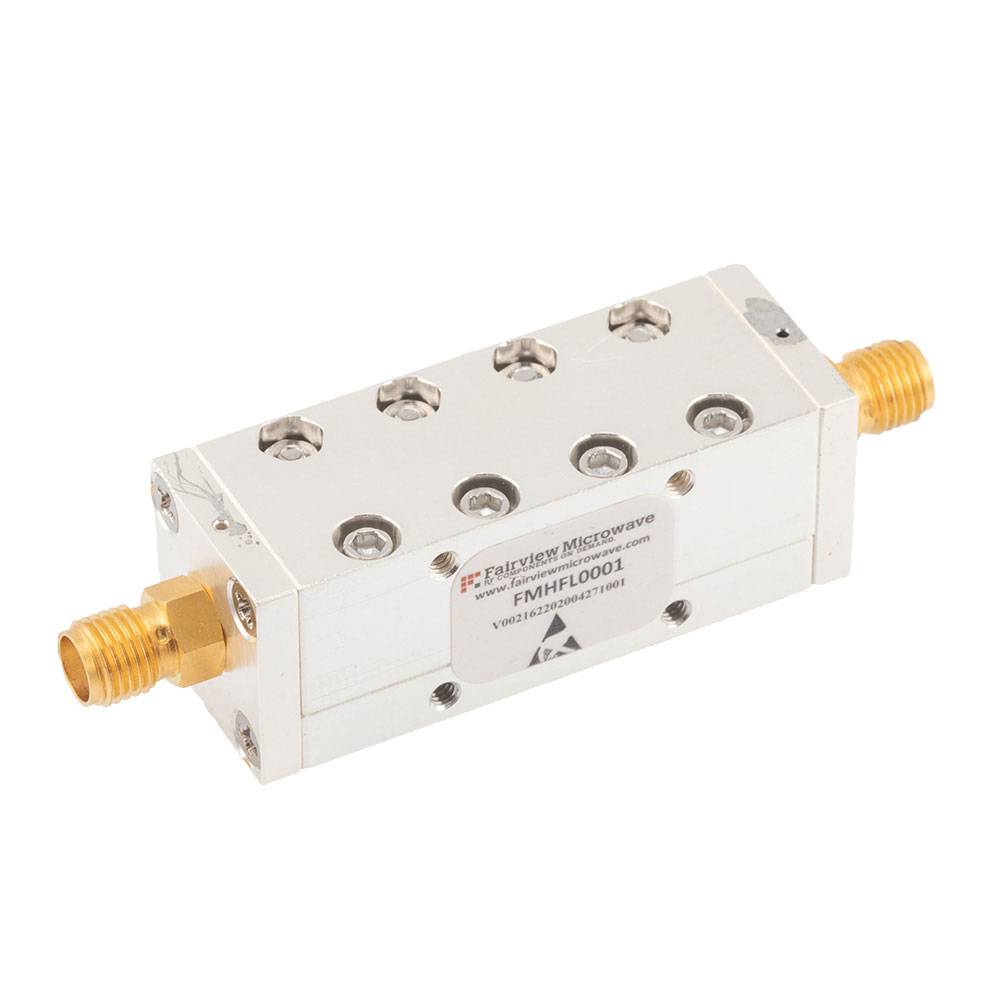

The Fairview Microwave FMHFL0001 is an SMA low-pass harmonic filter designed for C-band applications. It operates within a frequency range of 2500 MHz to 6000 MHz and features a 50W pin configuration. The component exhibits a maximum insertion loss of 0.3 dB and provides greater than 20 dB rejection for harmonic signals.

Feature Summary

• Provides effective harmonic suppression through high rejection capabilities
• Engineered specifically for C-band signal processing requirements
• Utilizes SMA connector interface for standard integration

Applications

• C-band communication systems
• Harmonic filtering in RF signal chains
• Signal conditioning modules requiring low insertion loss

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the SMA interface and 50W pin configuration align with system requirements. Ensure environmental ratings meet operational standards for the intended deployment environment.

Selection Notes

Select this component when C-band operation between 2500 MHz and 6000 MHz is required. Consider the 0.3 dB insertion loss and >20 dB rejection specifications for signal integrity needs. Verify compatibility with existing SMA connectors and mounting constraints.

Part Context

This part belongs to Fairview Microwave's line of signal conditioning components, specifically filters. It serves as a specialized solution for managing harmonic content in microwave frequencies, distinct from general-purpose interconnects or passive components.
