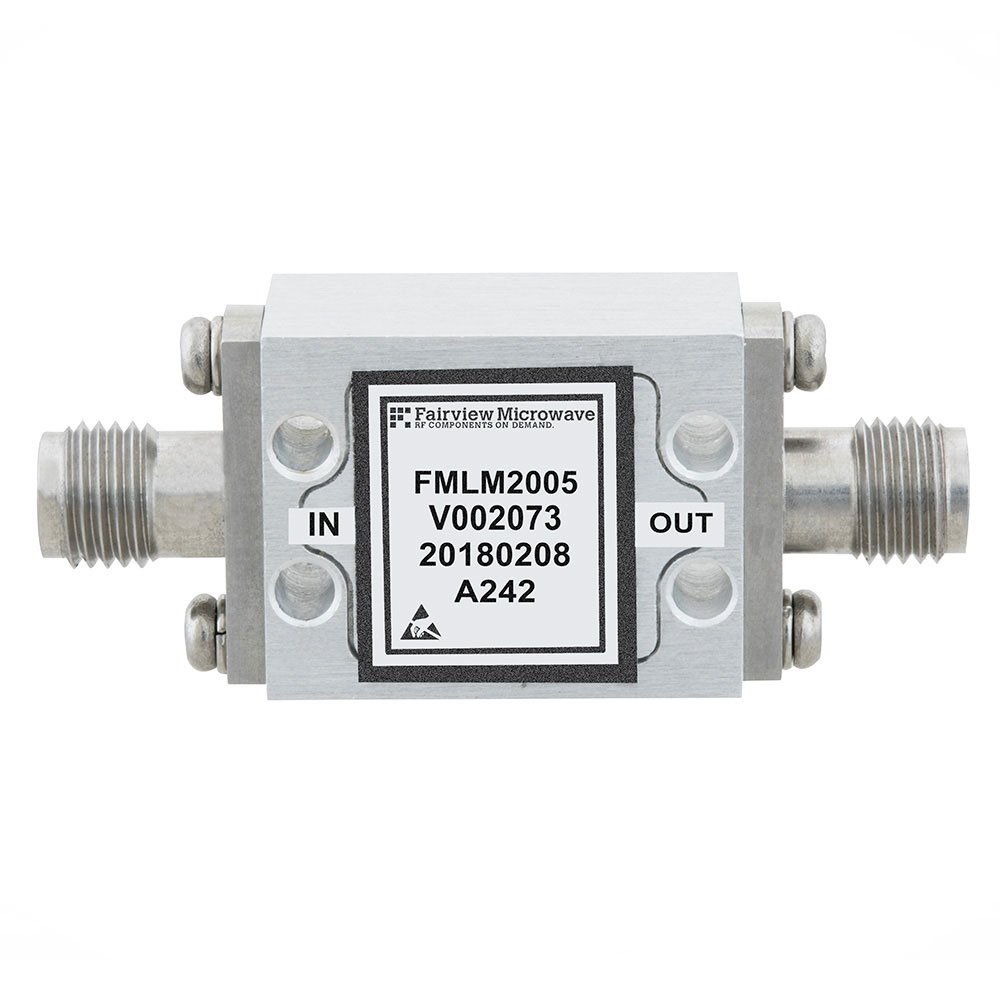

FMLM2005

$1,887.75

Description：LIMITER SMA 0.5-18 GHZ 18 DBM
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:5fb810441084 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LIMITER SMA 0.5-18 GHZ 18 DBM
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Limiter
Frequency：500MHz ~ 18GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：SMA In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMLM2005

Overview

The FMLM2005 is a high-power RF limiter manufactured by Fairview Microwave, designed for signal protection in radio frequency systems. It features SMA connectors and operates within a frequency range of 500 MHz to 18 GHz. The component supports a peak power handling capacity of 100 Watts and exhibits a recovery time of 15 microseconds. This field-replaceable unit is engineered to safeguard sensitive downstream equipment from excessive input power levels across its specified bandwidth.

Feature Summary

Provides high-power signal limiting to protect sensitive RF components
Features field-replaceable SMA interface connections
Operates effectively across a wide frequency spectrum up to 18 GHz

Applications

RF system signal protection
Transmitter output stage safeguarding
Test and measurement equipment input protection

Procurement Notes

Verify the specific SMA connector gender and mating requirements against your system interface before procurement. Confirm that the 100W peak power rating and 15us recovery time align with your operational duty cycle and transient requirements. Ensure the 500MHz to 18GHz frequency coverage matches your application bandwidth needs to guarantee effective limiting performance.

Selection Notes

Select this model when high peak power handling is required alongside rapid recovery times. The SMA interface offers compatibility with standard RF test and communication setups. Consider the 18GHz upper frequency limit to ensure adequate performance for wideband applications without introducing insertion loss or impedance mismatches at higher frequencies.

Part Context

This component belongs to Fairview Microwave's lineup of RF misc ICs and modules, specifically categorized as general-purpose limiters. It serves as a protective element within broader RF signal chains, distinguishing itself through its high peak power tolerance and fast recovery characteristics compared to standard passive components.
