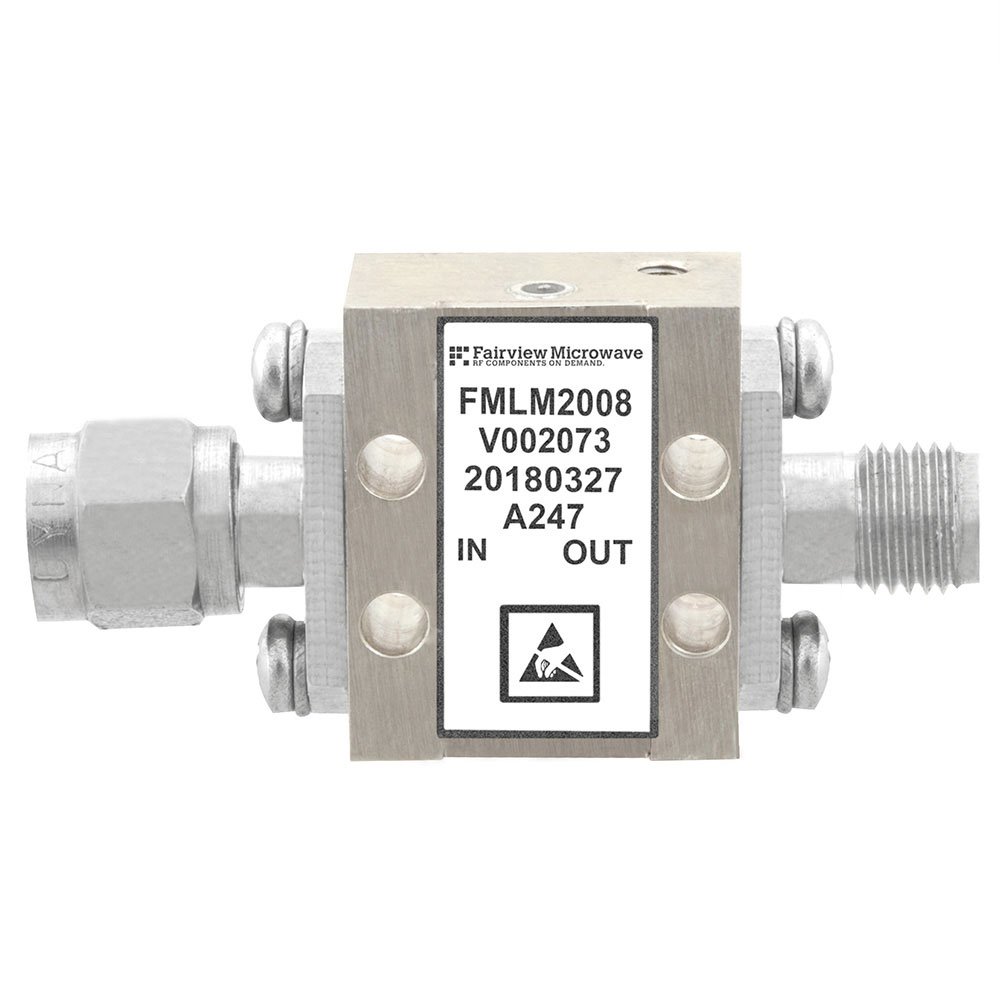

FMLM2008

$1,133.60

Description：LIMITER 2.92MM 26.5-40 GHZ 13 DB
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:4c019711e26c Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LIMITER 2.92MM 26.5-40 GHZ 13 DB
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Limiter
Frequency：26.5GHz ~ 40GHz
RF Type：General Purpose
Secondary Attributes：1W
Mounting Type：Chassis Mount
Package / Case：2.92mm In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMLM2008

Overview

The FMLM2008 is a high-power signal conditioning limiter manufactured by Fairview Microwave. It operates within the frequency range of 26.5 GHz to 40 GHz and features a 2.92mm interface. The device supports a continuous wave input power of 1 W with a peak input power capacity of 100 W (50 dBm). Key electrical specifications include a CW flat leakage of 13 dBm (0.02 W) and a recovery time of 15 microseconds.

Feature Summary

Field replaceable design for high-power applications
Signal conditioning functionality in the 26.5 GHz to 40 GHz band
High peak power handling capability up to 100 W

Applications

Space-based RF systems
General purpose RF signal conditioning
High power limiter circuits requiring field replacement

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the 2.92mm connector interface matches the system requirements. Ensure thermal management strategies align with the 1 W continuous wave operation limits. Check for any specific handling instructions related to the field-replaceable nature of the component.

Selection Notes

Select this component when operating frequencies fall between 26.5 GHz and 40 GHz. Choose the FMLM2008 if a peak power rating of 100 W is required alongside a 1 W continuous limit. Consider its field-replaceable form factor for maintenance-heavy environments. Evaluate the 13 dBm leakage specification against system noise floor requirements.

Part Context

This part belongs to Fairview Microwave's portfolio of RF misc ICs and modules, specifically categorized as general-purpose limiters. It serves as a specialized solution for high-frequency signal protection, distinct from their standard cable assemblies or passive components.
