FMMT10033

Overview

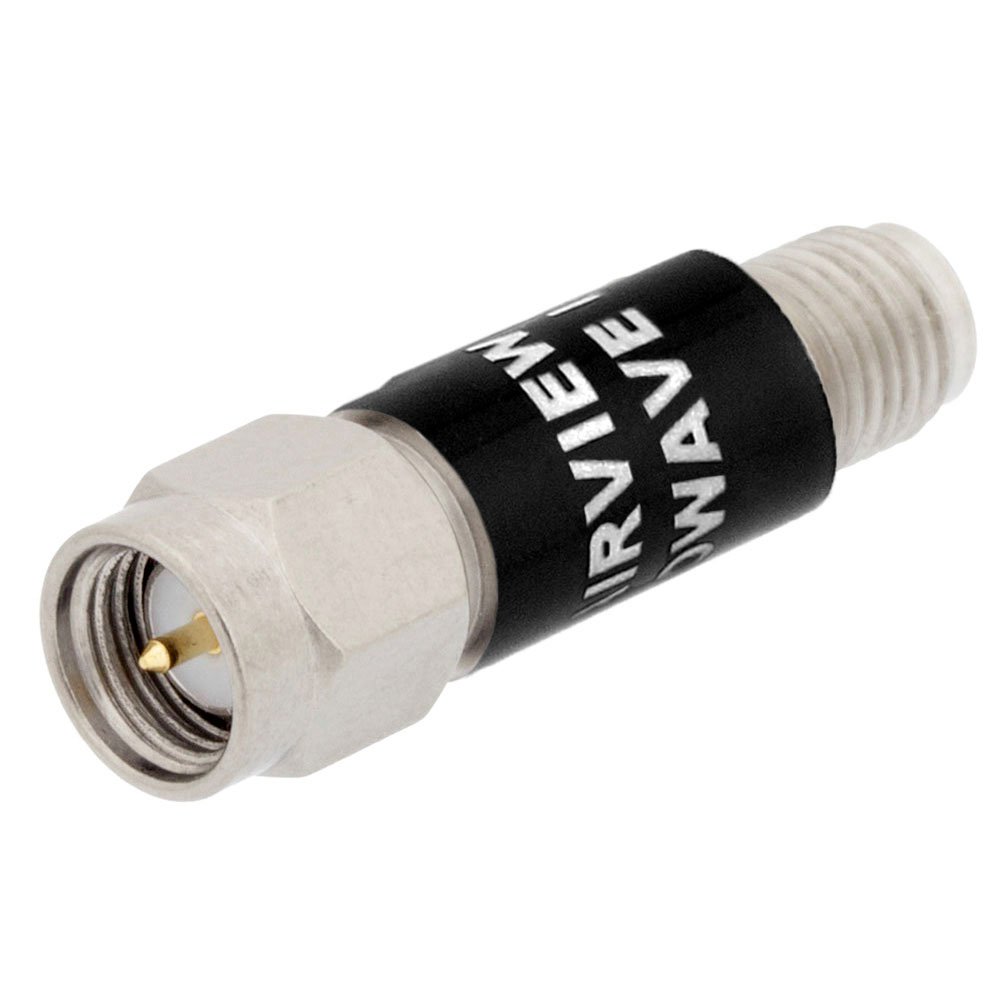

The FMMT10033 is a signal conditioning component manufactured by Fairview Microwave, classified as a high power limiter. It utilizes SMA connectors and is engineered to handle peak power levels of 100 watts. The device operates within a frequency range spanning from 2 GHz to 18 GHz. Key performance specifications include a recovery time of 200 microseconds and a flat leakage characteristic of 18 dBm. This assembly is designed for robust signal management in demanding RF environments.

Feature Summary

• High power limiting capability with 100W peak power handling
• Broadband operation covering 2 GHz to 18 GHz frequencies
• Fast recovery time of 200 microseconds for rapid signal restoration
• Flat leakage specification of 18 dBm ensuring consistent signal attenuation

Applications

• RF signal protection in communication systems
• Test and measurement equipment signal conditioning
• Defense and aerospace radar subsystems
• Wireless infrastructure transmitter protection

Procurement Notes

Verify the specific SMA connector gender and interface orientation required for your system integration before procurement. Confirm that the 100W peak power rating aligns with your maximum expected signal levels to prevent component damage. Ensure the 2GHz-18GHz operational bandwidth covers your entire application spectrum. Check for any environmental sealing requirements if the unit will be deployed in harsh conditions.

Selection Notes

Select this model when broadband high-power limiting is required across the UHF through K-band ranges. The 200 microsecond recovery time makes it suitable for applications requiring rapid signal re-engagement after limiting events. Consider the physical SMA interface compatibility with existing PCB or panel mount designs. Evaluate the 18 dBm leakage level against your system's noise floor and sensitivity requirements to ensure adequate protection without excessive signal degradation.

Part Context

This component belongs to Fairview Microwave's signal conditioning portfolio, specifically designed for high-power RF applications. It serves as a protective element within larger RF chains, safeguarding sensitive downstream components from over-power conditions. The SMA interface ensures broad compatibility with standard test and communication hardware found in industrial and military sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
