FMMT1018

Overview

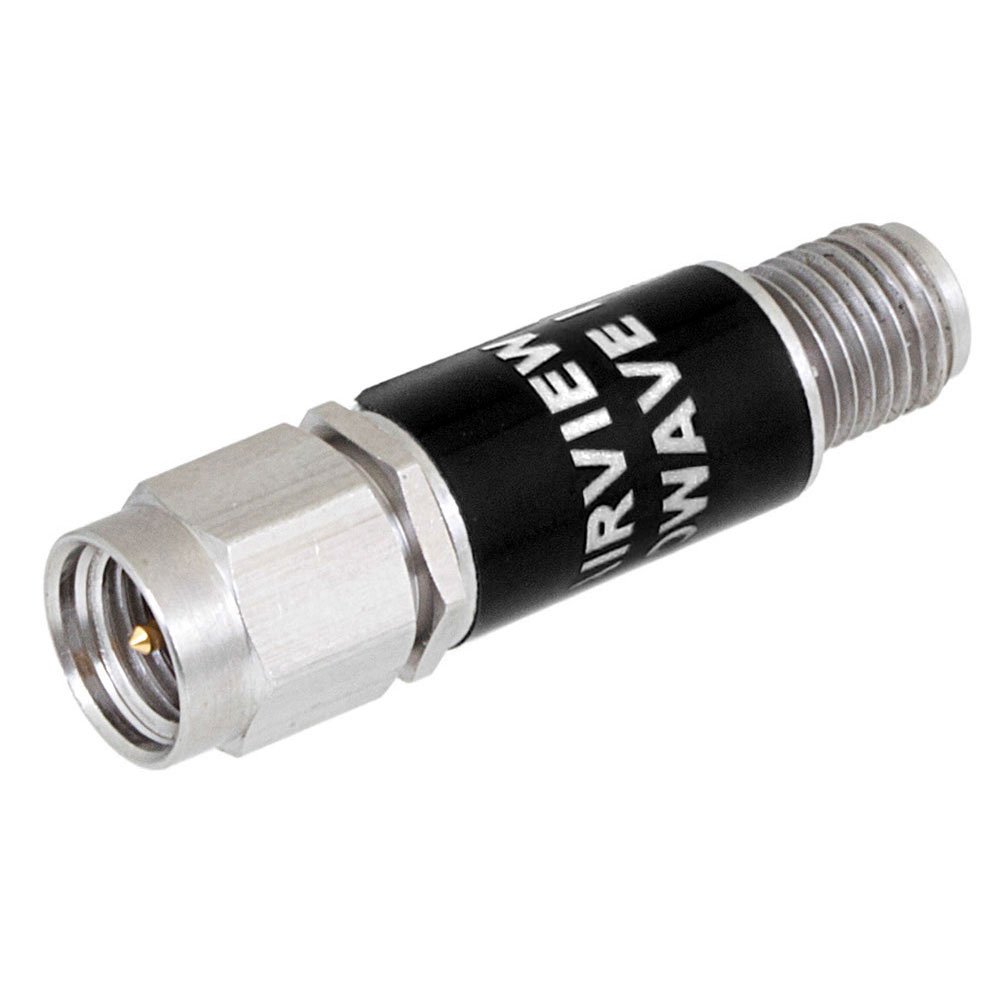

The FMMT1018 is a high power limiter manufactured by Fairview Microwave, designed for signal conditioning applications within the radio frequency spectrum. It operates effectively in the frequency range of 500 MHz to 2 GHz, utilizing SMA connectors for interface compatibility. The device supports a peak power handling capacity of 100 Watts, ensuring robust performance under high-energy conditions. Key electrical specifications include a flat leakage level of 19 dBm and a recovery time of 20 nanoseconds. These parameters define its capability to protect downstream components from power surges while maintaining signal integrity across the specified bandwidth.

Feature Summary

• Provides high power limiting protection with a 100W peak power rating
• Features a fast 20 ns recovery time for rapid signal restoration
• Maintains a consistent 19 dBm flat leakage level during operation

Applications

• Protection of sensitive RF receiver front-ends from high power signals
• Signal conditioning in radar systems requiring surge protection
• Test and measurement setups involving high power RF sources

Procurement Notes

Verify component authenticity through official Fairview Microwave channels or authorized distributors. Confirm that the SMA connector type matches system requirements. Ensure operational limits regarding peak power and frequency range are strictly observed to prevent device failure. Request current datasheets for precise electrical characteristics before integration into final designs.

Selection Notes

Select this model when high power handling and fast recovery are critical for system reliability. The 500 MHz to 2 GHz range suits general purpose RF applications. Consider the 19 dBm leakage specification for noise floor constraints. Evaluate the 100W peak rating against expected signal amplitudes to ensure adequate protection margins without compromising normal signal transmission.

Part Context

This component belongs to the category of RF limiters and signal conditioning modules produced by Fairview Microwave. It is engineered for wireless and RF integrated circuit environments where transient over-power events must be mitigated. The design focuses on durability and speed, addressing common challenges in high-frequency electronic systems that require immediate response to power spikes.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility based on frequency range, connector type, and power ratings if considering alternative models.
