Product Detailed Parameters
- Description：NOISE GEN 10 MHZ - 6 GHZ 28 VDC
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Noise Source
- Frequency：10MHz ~ 6GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

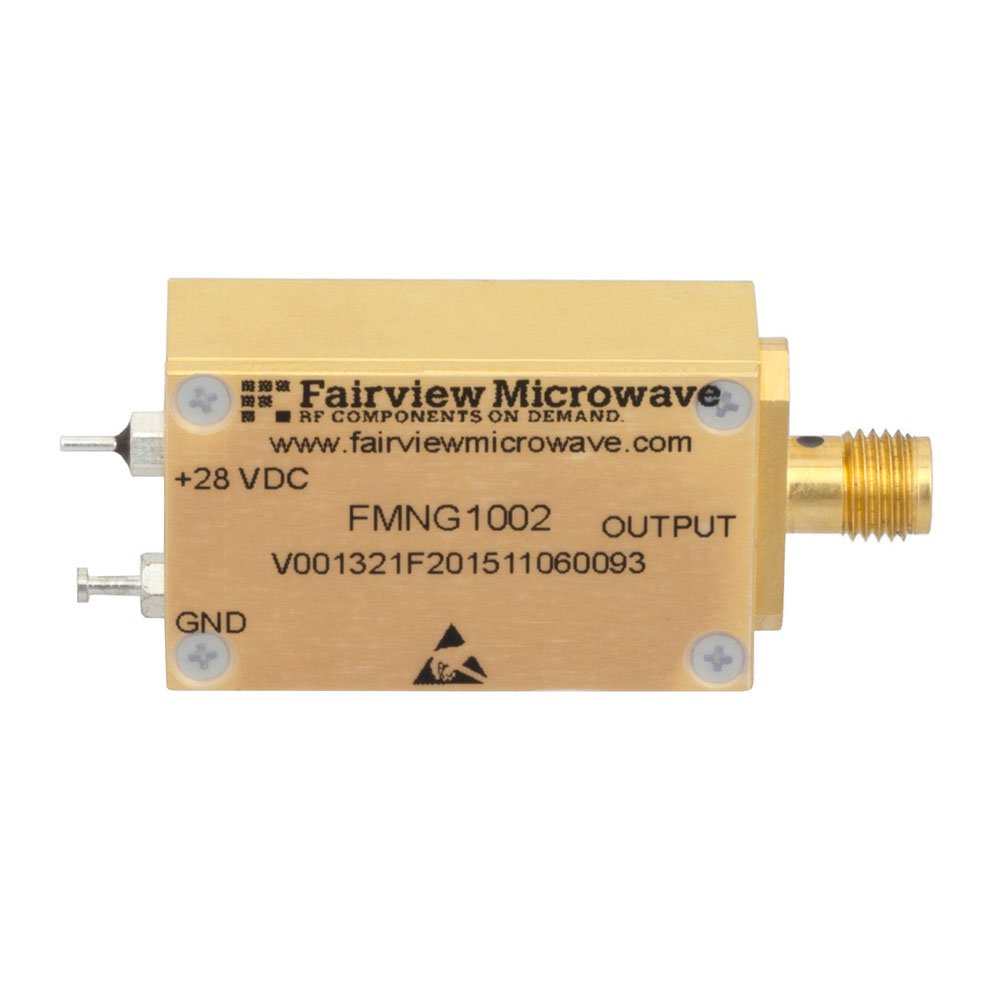

The FMNG1002 is a calibrated noise source module manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 6 GHz and provides a noise output excess noise ratio (ENR) of 15 dB. The device requires a supply voltage of +28 VDC for operation. It features SMA connectors for interface connectivity. The component is packaged in a bag and belongs to the RF Modules product category.
Feature Summary
- Provides calibrated noise generation across a wide microwave frequency spectrum
- Delivers consistent 15 dB excess noise ratio performance
- Utilizes standard SMA connector interfaces for integration
Applications
- Receiver sensitivity testing
- Noise figure measurement systems
- RF component characterization
Procurement Notes
Verify the specific datasheet version and electrical tolerances directly with Fairview Microwave or authorized distributors before procurement. Confirm that the required +28 VDC power supply matches system capabilities. Ensure SMA connector compatibility with existing test fixtures. Check current availability status as supply conditions may vary.
Selection Notes
Select this module when a broad bandwidth noise source from 10 MHz to 6 GHz is required. The 15 dB ENR level suits general-purpose RF testing applications. Verify that the SMA interface aligns with the measurement setup. Ensure the +28 VDC power requirement is supported by the host equipment infrastructure.
Part Context
The FMNG1002 falls under the RF Modules category from Fairview Microwave, a provider of RF, microwave, and mmWave components. This specific part serves as a calibrated noise generator, distinct from their passive components like antennas or amplifiers. It supports electronic design automation workflows through available ECAD models.
Replacement Considerations
No public confirmed substitute part numbers are identified in the provided documentation. Users should consult Fairview Microwave technical support for equivalent alternatives if this specific model is unavailable.
FAQ
What is the operating frequency range of the FMNG1002?
The FMNG1002 operates from 10 MHz to 6 GHz.
What is the excess noise ratio (ENR) specification?
The module provides a calibrated noise output ENR of 15 dB.
What type of connectors does the FMNG1002 use?
The device utilizes SMA connectors for signal interface.
