FMNG1021

Overview

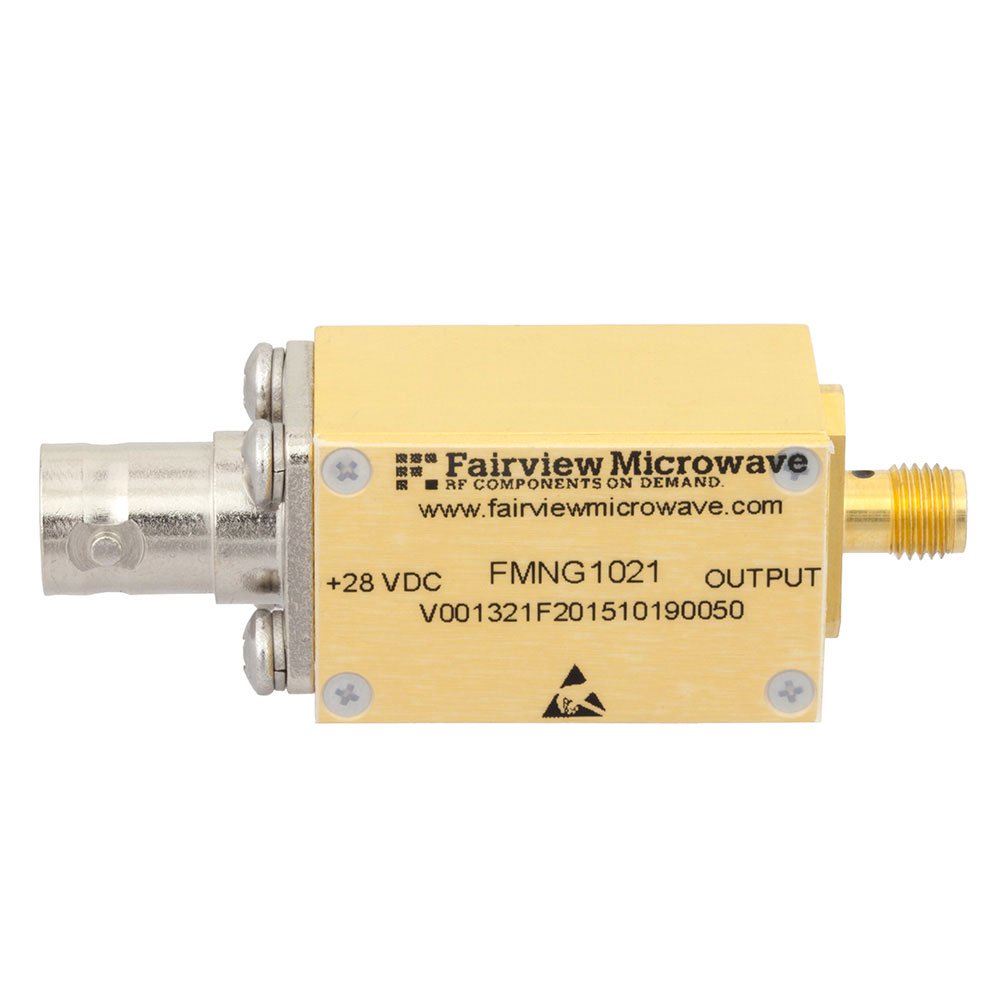

The FMNG1021 is a radar noise source module manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 6 GHz. The device provides an Excess Noise Ratio (ENR) of 15 dB with a flatness specification of ±2 dB. It utilizes SMA connectors for interface connections and is packaged in a bag.

Feature Summary

• Generates calibrated noise signals for radar system testing
• Operates across a wide frequency spectrum from 10 MHz to 6 GHz
• Provides stable excess noise ratio performance

Applications

• Radar receiver sensitivity testing
• Noise figure measurement of RF components
• Calibration of signal analysis equipment

Procurement Notes

Verify the specific datasheet version for the FMNG1021 to confirm connector polarity and exact ENR tolerances. Ensure the receiving environment supports the operational frequency range. Check for any specific handling requirements regarding the SMA interfaces during installation.

Selection Notes

Select this component when a broadband noise source is required for frequencies up to 6 GHz. The 15 dB ENR level is suitable for standard sensitivity measurements. Verify that the SMA interface matches the test setup requirements before procurement.

Part Context

This module belongs to the Fairview Microwave line of RF miscellaneous integrated circuits and modules. It serves as a specialized test instrument component designed for high-frequency applications, distinct from passive cable assemblies or active mixers in the same catalog.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 10 MHz to 6 GHz frequency range and 15 dB ENR specifications.

FAQ

What is the operating frequency range of the FMNG1021?

The FMNG1021 operates from 10 MHz to 6 GHz.

What is the Excess Noise Ratio (ENR) of this module?

The module provides an Excess Noise Ratio of 15 dB.
