Product Detailed Parameters
- Description：NOISE GEN 10 MHZ - 18 GHZ 28 VDC
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Noise Source
- Frequency：10MHz ~ 18GHz
- RF Type：ATE, Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：BNC In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

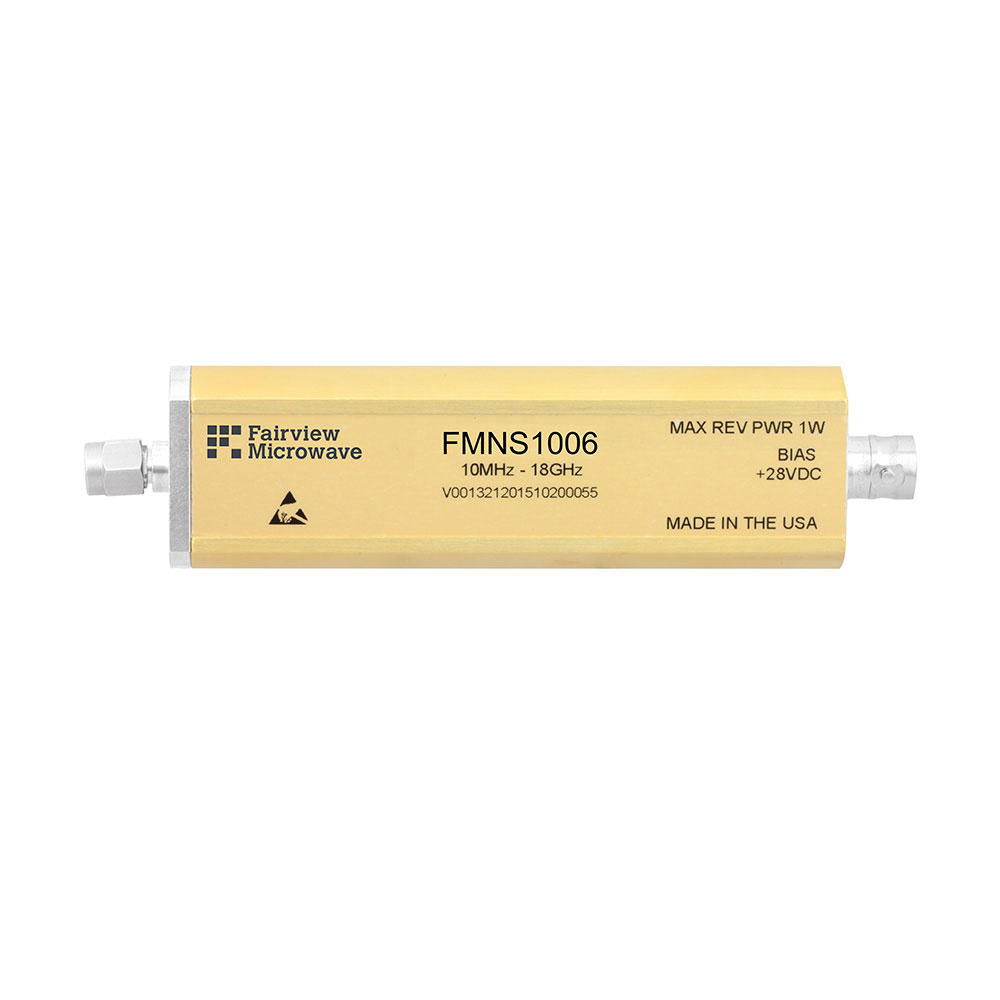

The FMNS1006 is an SMA precision calibrated noise source module manufactured by Fairview Microwave. It provides a stable excess noise ratio (ENR) of 14 dB for RF system characterization. The device operates with a maximum supply voltage of +28 VDC and utilizes an SMA connector interface. Designed for high-precision applications, this component serves as a reference signal generator in measurement setups requiring accurate noise figure analysis.
Feature Summary
- Precision calibrated noise source for accurate RF measurements
- Provides 14 dB excess noise ratio (ENR)
- Operates on +28 VDC maximum supply voltage
- Features SMA connector interface
Applications
- Noise figure analyzer calibration
- RF receiver sensitivity testing
- Communication system performance verification
Procurement Notes
Verify the specific ENR value and operating voltage requirements against your test equipment specifications before procurement. Ensure the SMA connector type matches your existing setup. Confirm availability through authorized distributors as stock levels may vary. Check for any required calibration certificates if traceability is needed for your quality standards.
Selection Notes
Select the FMNS1006 when a precise 14 dB ENR noise source is required for RF testing. Consider the +28 VDC power requirement to ensure compatibility with your power supply units. The SMA interface dictates the necessary cabling and adapters. Evaluate whether the precision level meets your specific measurement uncertainty tolerances compared to other available noise sources.
Part Context
This component belongs to Fairview Microwave's line of RF modules and noise sources. It is designed for laboratory and industrial environments where reliable and repeatable noise signals are essential. The module supports standard SMA connections, integrating easily into common RF test benches and automated test equipment configurations.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for alternative models or cross-reference options based on specific ENR and frequency requirements.
