FMNS5001

Overview

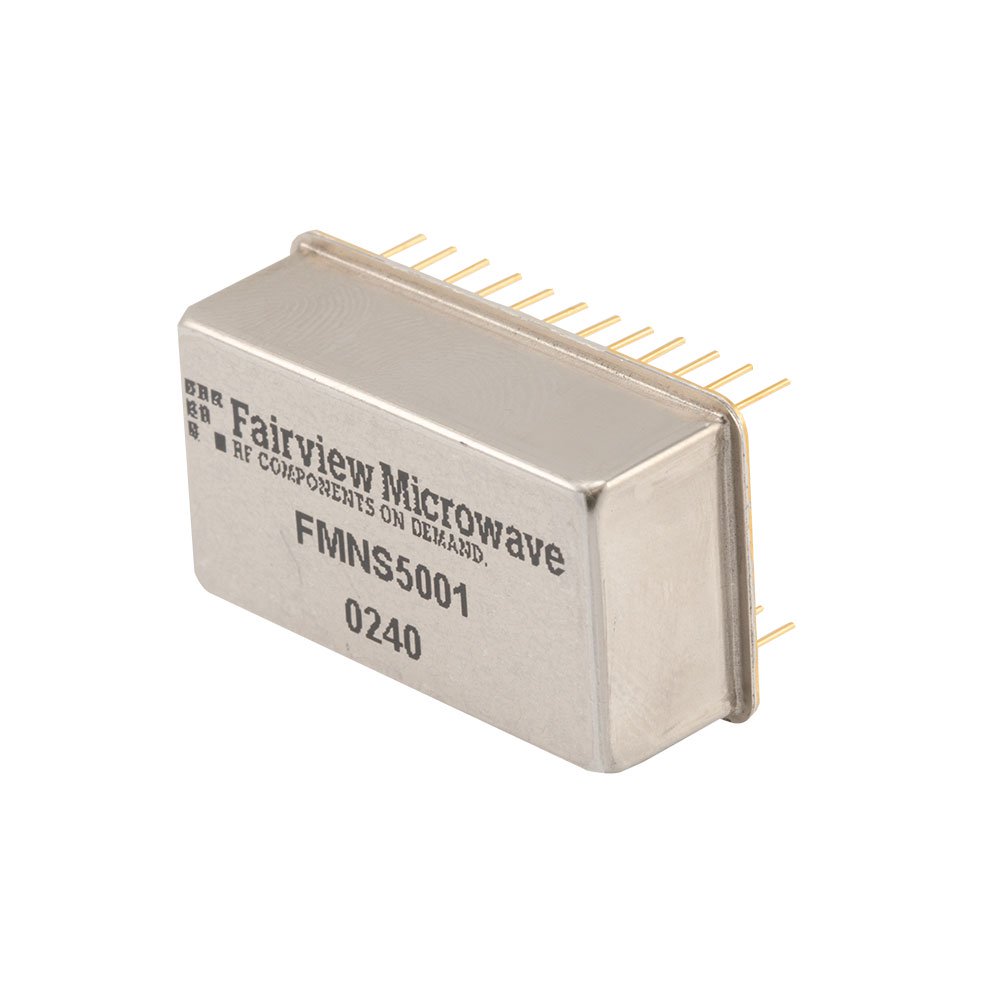

The FMNS5001 is a general-purpose RF noise source manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 3 GHz, providing an output power of -5 dBm. The device features a flatness specification of ±2 dB and a temperature coefficient of 0.025. It requires a supply voltage of 15V for operation. This component is designed for use in signal integrity testing and calibration applications requiring stable noise generation across the specified microwave frequency band.

Feature Summary

• Generates calibrated noise signals for system testing
• Operates with a standard 15V supply voltage
• Maintains consistent performance across wide frequency ranges

Applications

• RF receiver sensitivity testing
• Noise figure measurement systems
• Signal integrity verification

Procurement Notes

Verify that the specific part number matches the required frequency range and output power specifications for your application. Confirm supply voltage requirements align with your system design. Ensure compatibility with existing test equipment interfaces. Review manufacturer documentation for detailed electrical characteristics and operational limits before integration into final designs.

Selection Notes

Select this component when a broad bandwidth noise source is required for calibration or testing purposes. Consider the operating frequency range and output power levels relative to your specific measurement needs. Evaluate the temperature stability characteristics if environmental variations are expected during operation. Compare specifications against alternative sources to ensure optimal performance for your particular application scenario.

Part Context

Fairview Microwave specializes in high-quality RF and microwave components, including adapters, connectors, amplifiers, attenuators, coaxial cables, waveguides, and terminations. The company maintains extensive inventory to support rapid delivery for various industries. Their product portfolio includes specialized modules like noise sources designed to meet rigorous performance standards for professional testing environments.
