FMPH1000

Overview

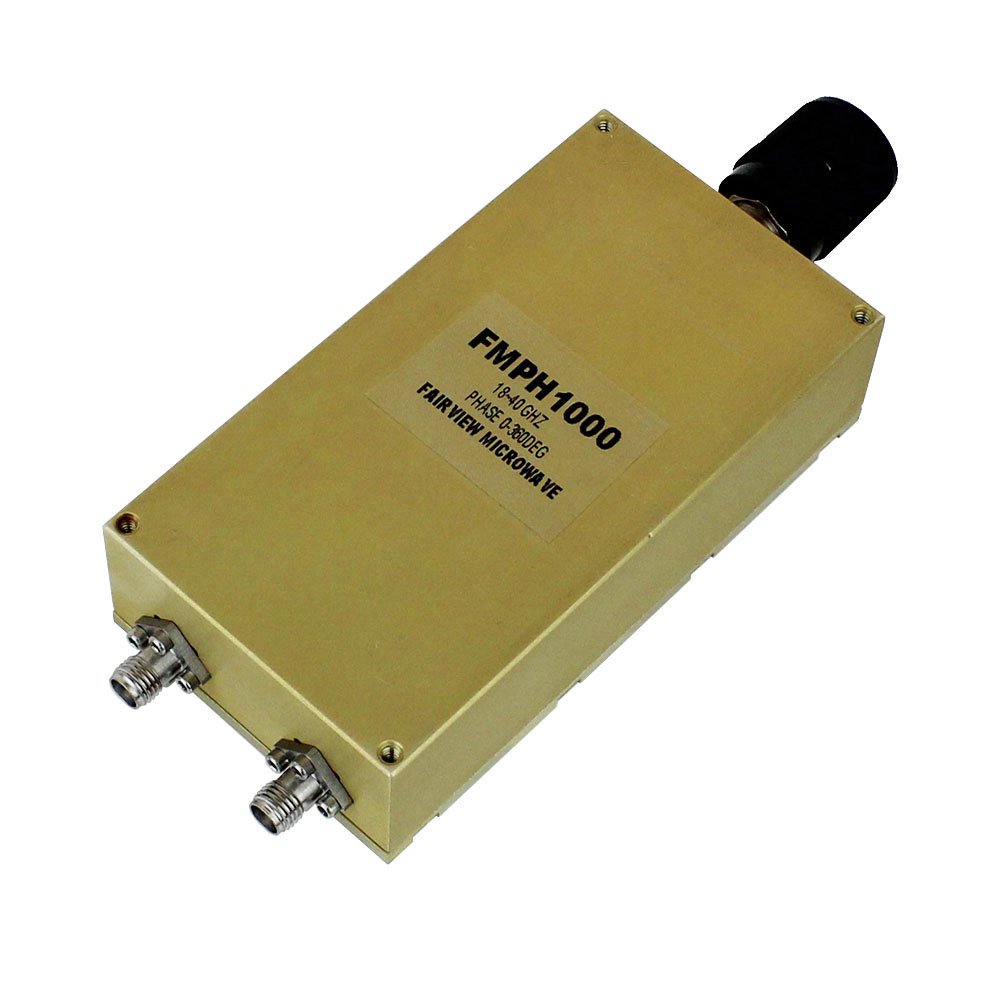

The FMPH1000 is a signal conditioning component manufactured by Fairview Microwave, specifically designed as a variable phase shifter. It operates within the frequency range of 18 GHz to 40 GHz and features a 2.92mm interface. The device provides an adjustable phase range spanning from 0 to 360 degrees. Constructed with stainless steel body and gold-plated contacts, it utilizes Teflon dielectric material. The operational temperature range extends from -55°C to +125°C.

Feature Summary

• Provides continuous variable phase shifting capability across a full 360-degree range
• Engineered for high-frequency operation up to 40 GHz using 2.92mm connectors
• Features durable construction with gold-plated BeCu center contacts and stainless steel housing

Applications

• High-frequency radar systems requiring precise phase control
• Test and measurement equipment operating in the E-band
• Satellite communication ground stations

Procurement Notes

Verify the specific suffix 'A' when ordering, as distributor listings may reference FMPH1000A. Confirm availability status directly with suppliers, as some regions may have shipping restrictions. Ensure compatibility with 2.92mm connector interfaces before integration. Check for RoHS compliance documentation if required for your project specifications.

Selection Notes

Select this component for applications requiring wideband phase adjustment between 18 GHz and 40 GHz. Consider the thermal operating limits of -55°C to +125°C for environmental suitability. The 2.92mm interface dictates mating connector requirements. Evaluate the physical dimensions and weight against space constraints in the assembly design.

Part Context

This part belongs to Fairview Microwave's signal conditioning portfolio, specifically within the phase shifter subcategory. It serves as a critical component for manipulating signal phase in microwave circuits. The product line focuses on high-performance RF solutions for demanding industrial and defense applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify direct compatibility or consult manufacturer guidelines for alternative solutions.
