FMSN3908

Overview

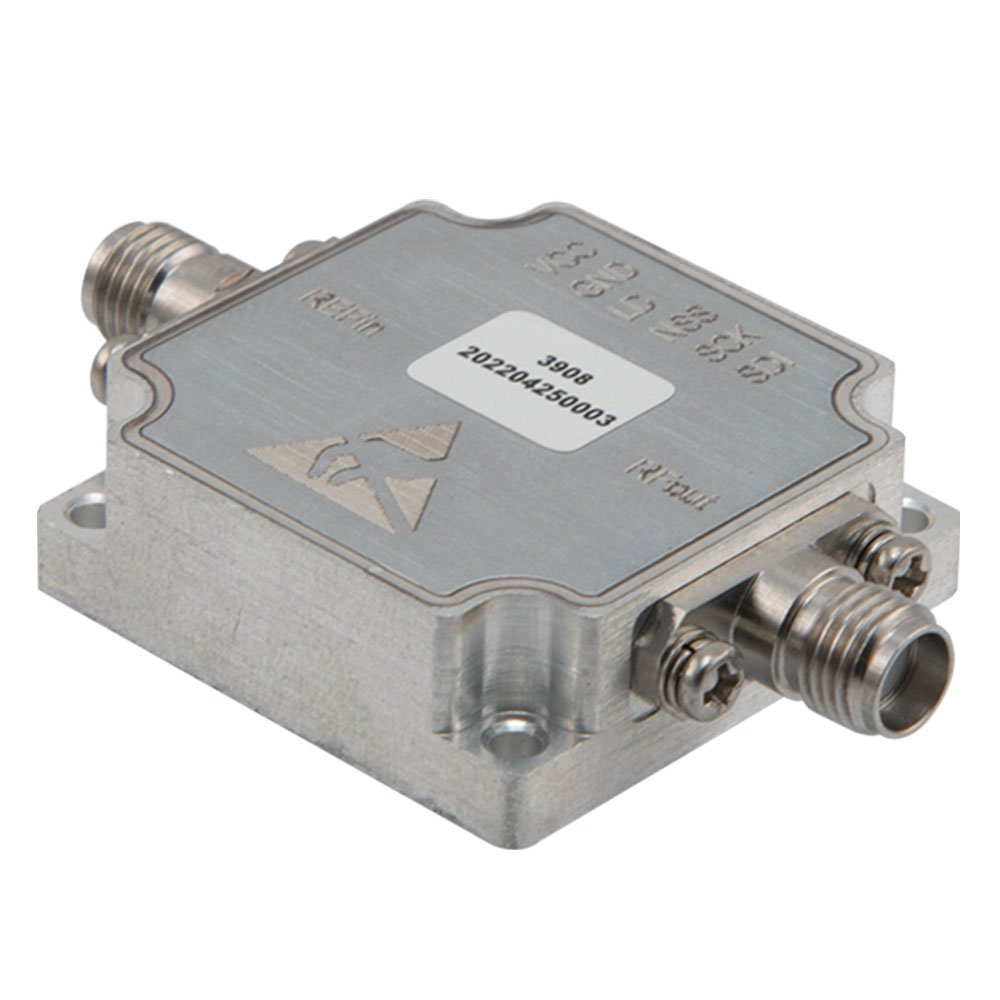

The FMSN3908 is an RF synthesizer module manufactured by Fairview Microwave, designed for radar applications. It operates within a frequency range of 1 GHz to 6.4 GHz and features SMA connectors for interface connectivity. This component functions as a phase-locked loop (PLL) based frequency synthesizer, providing stable signal generation capabilities suitable for integration into radar systems requiring precise frequency control across the specified UHF and SHF bands.

Feature Summary

• Integrated phase-locked loop architecture for frequency synthesis
• SMA connector interfaces for direct system integration
• Optimized design for radar application environments

Applications

• Radar signal generation systems
• Frequency synthesis modules
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version and electrical characteristics prior to procurement. Confirm that the SMA connector type matches the system requirements. Ensure the operating temperature range aligns with the intended deployment environment. Cross-reference the part number with official Fairview Microwave documentation to confirm current production status and availability constraints.

Selection Notes

Select this module when a wide tuning range from 1 GHz to 6.4 GHz is required for radar applications. The integrated SMA connectors simplify board-level or chassis-level integration without additional adapter components. Consider the power supply requirements and thermal management needs associated with PLL synthesizer modules in dense RF assemblies.

Part Context

This component belongs to the Fairview Microwave RF Integrated Circuits and Modules category. It serves as a specialized frequency source within the broader portfolio of radio frequency components. The module addresses the need for compact, high-performance synthesizers in professional radar and communication infrastructure.

FAQ

What is the primary function of the FMSN3908?

It functions as a phase-locked loop frequency synthesizer designed for radar applications.

What type of connectors does the FMSN3908 utilize?

The module is equipped with SMA connectors for signal input and output.
