FMVC002

Overview

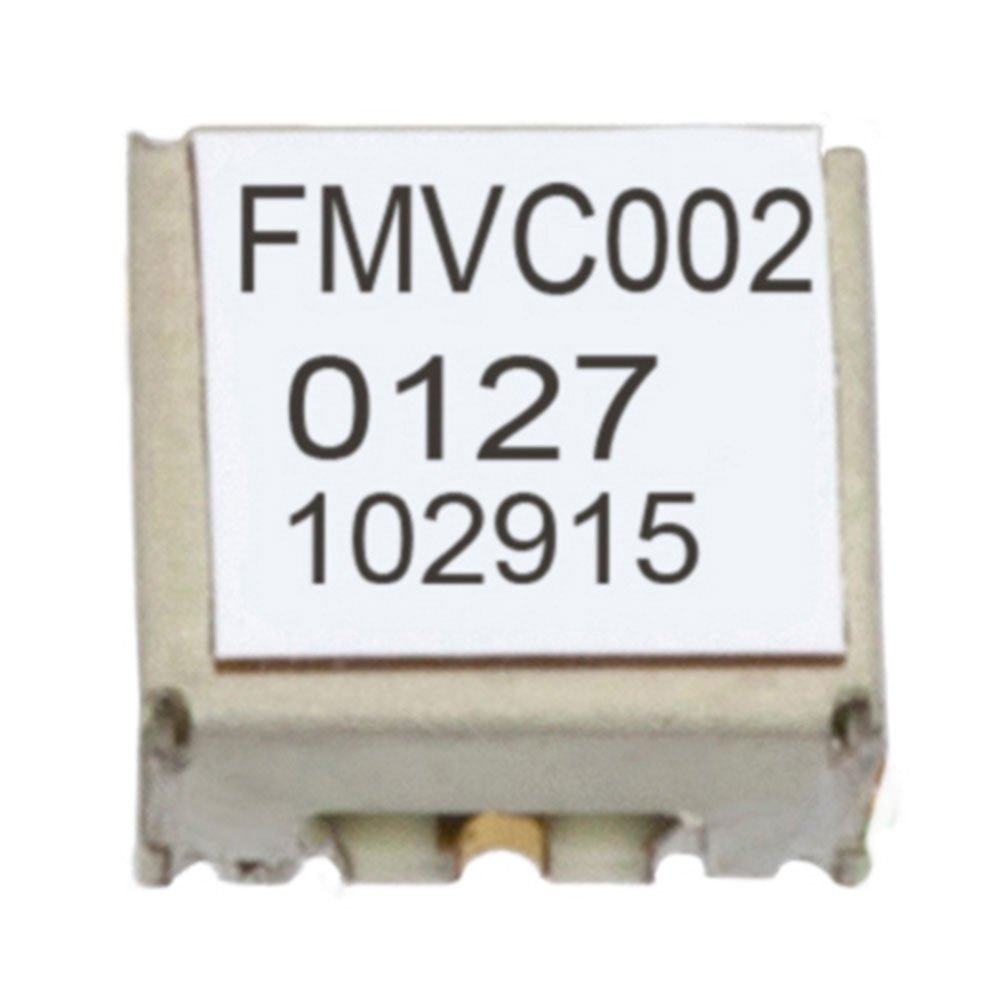

The FMVC002 is a voltage-controlled oscillator (VCO) manufactured by Fairview Microwave. It features a center frequency of 375 MHz and operates within a tuning voltage range of 0 V to 20 V DC. The device requires a supply voltage of 5 V and has a maximum current consumption of 20 mA. It delivers an output power of -8 dBm with a typical second harmonic level of -8 dBc. The component is housed in an 8-SMD surface-mount package.

Feature Summary

• Provides precise frequency control via external voltage input
• Designed for surface-mount integration into compact circuits
• Delivers stable RF output at the specified center frequency

Applications

• Frequency synthesis systems
• Local oscillator stages in receivers
• Signal generation modules

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturers may update specifications without notice. Confirm that the 8-SMD package dimensions align with your PCB footprint requirements. Ensure the design supports the required 5 V supply and 0-20 V tuning range. Check for any recent product change notices regarding material or performance updates.

Selection Notes

Select this component when a fixed 375 MHz center frequency is required with wide voltage tuning capability. Consider the -8 dBm output power and -8 dBc harmonic levels against system noise and interference budgets. The SMD form factor suits automated assembly processes. Evaluate thermal management needs based on the 20 mA current draw.

Part Context

Fairview Microwave specializes in RF, microwave, and millimeter-wave components. The FMVC002 belongs to their oscillator catalog, providing essential signal sources for communication and test equipment. This part complements their broader portfolio of connectors, cables, and passive components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative VCOs.
