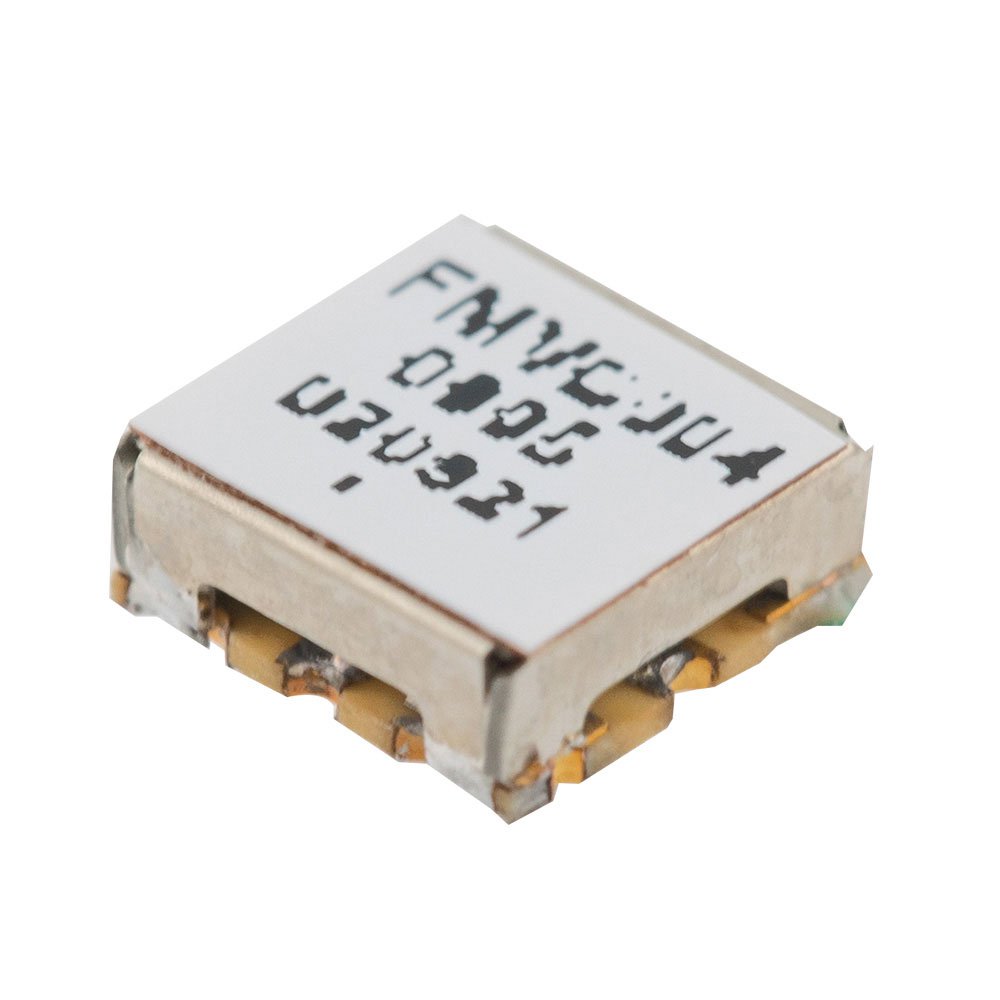

FMVC004

$65.17

Description：VOLT CONTROL OSC 800MHZ-1.6GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:4c3d307a8be8 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 800MHZ-1.6GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：800 ~ 1600MHz
Frequency - Center：1.2GHz
Voltage - Supply：5V
Tuning Voltage (VDC)：0 V ~ 18 V
2nd Harmonic, Typ (dBc)：-17
Icc Max：25mA
Pushing (MHz/V)：70
Power (dBm)：11 -1, +2
Phase Noise Typ (dBc/Hz)：-93
Operating Temperature：-40°C ~ 85°C
Package / Case：8-SMD Module
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height：0.075" (1.90mm)

Download product information

FMVC004

Overview

The Fairview Microwave FMVC004 is a voltage-controlled oscillator (VCO) designed for RF applications. It operates within a frequency range of 800 MHz to 1.6 GHz. The component features a phase noise specification of -93 dBc, indicating its signal purity characteristics. This VCO is manufactured by Fairview Microwave and is categorized under VCO oscillators in their product lineup.

Feature Summary

Voltage-controlled operation for frequency tuning
Operates in the 800 MHz to 1.6 GHz range
Specified phase noise performance

Applications

RF signal generation
Frequency synthesis systems
Communication equipment local oscillators

Procurement Notes

Verify availability through authorized distributors as lead times may vary. Confirm technical specifications against current datasheets before integration. Ensure environmental conditions match operational requirements for stable VCO performance.

Selection Notes

Select this model when an 800 MHz to 1.6 GHz tuning range is required. Consider the -93 dBc phase noise metric for applications sensitive to spectral purity. Evaluate thermal management needs based on power dissipation data in the official datasheet.

Part Context

The FMVC004 belongs to Fairview Microwave's portfolio of voltage-controlled oscillators. It serves as a core frequency source component in radio frequency circuits, providing tunable output signals for various electronic systems requiring precise frequency control within the specified UHF band.

How to buy

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
