Product Detailed Parameters
- Description：VOLT CONTROL OSC 1GHZ-2GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：1 ~ 2GHz
- Frequency - Center：1.5GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-7
- Icc Max：25mA
- Pushing (MHz/V)：82
- Power (dBm)：10 -1, +2
- Phase Noise Typ (dBc/Hz)：-90
- Operating Temperature：-40°C ~ 85°C
- Package / Case：8-SMD Module
- Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
- Height：0.075" (1.90mm)
Download product information
Overview

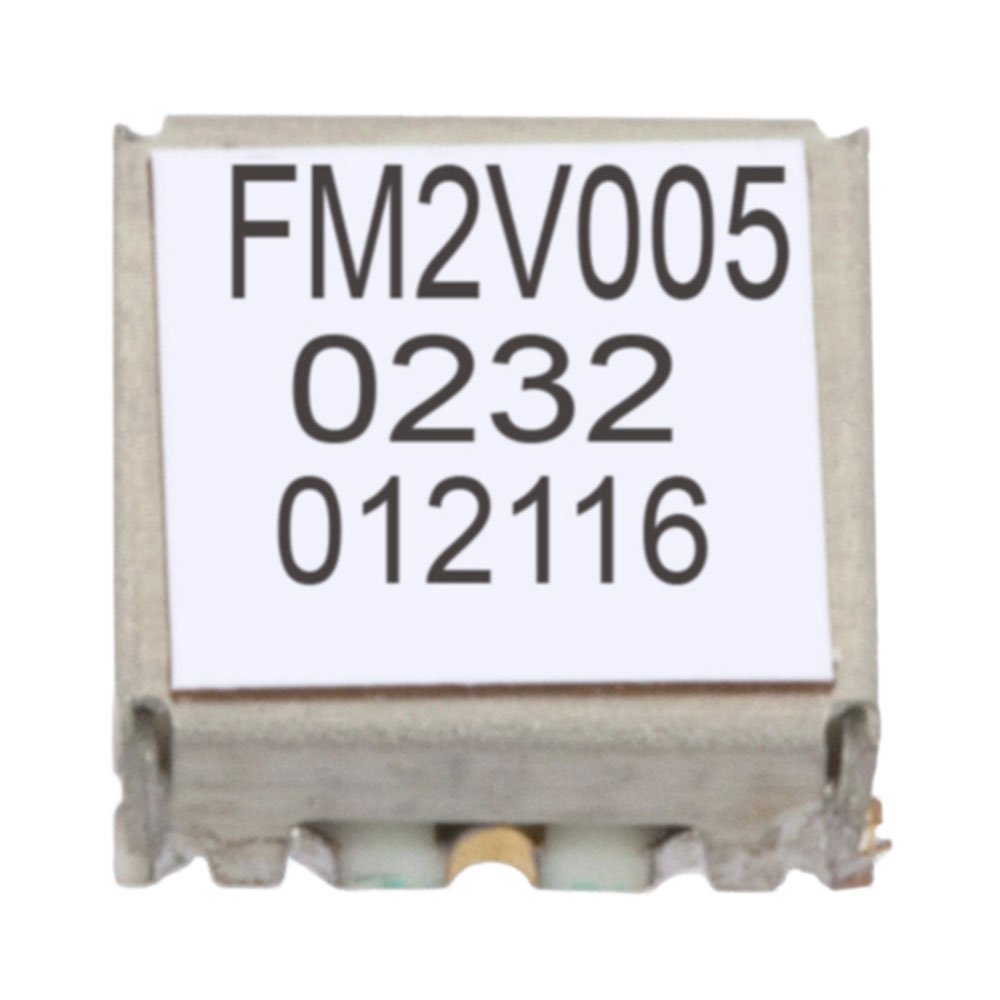

The FMVC005 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 2 GHz. The device delivers an output power of 15.849 mW, which corresponds to approximately 12 dBm. Tuning sensitivity ranges from 36 MHz/V to 82 MHz/V. The component utilizes a surface mount package configuration suitable for integration into RF and microwave circuits requiring precise frequency generation capabilities.
Feature Summary
- Generates stable RF signals across the 1 GHz to 2 GHz band
- Features voltage-controlled tuning with defined sensitivity parameters
- Provides consistent output power for signal chain applications
Applications
- RF signal generation modules
- Frequency synthesis systems
- Communication equipment local oscillators
Procurement Notes
Verify the specific datasheet version for the FMVC005 to confirm pinout assignments and electrical tolerances before integration. Ensure that the supply voltage and control interface requirements align with the system design specifications. Cross-reference the manufacturer's documentation for any recent product change notices or environmental compliance updates relevant to this component.
Selection Notes
Select the FMVC005 when a VCO covering the 1 GHz to 2 GHz spectrum is required. Consider the tuning sensitivity range and output power level against system noise and gain requirements. Evaluate the surface mount package type for compatibility with PCB layout constraints and thermal management strategies in the target application environment.
Part Context
Fairview Microwave specializes in high-quality RF, microwave, and millimeter-wave components. The FMVC005 belongs to their portfolio of active electronic devices designed for precision signal generation. This oscillator complements passive components like filters and cables often used in similar test and measurement or communication setups.
FAQ
What is the operating frequency range of the FMVC005?
The FMVC005 operates within a frequency range of 1 GHz to 2 GHz.
What is the typical output power of this VCO?
The device provides an output power of 15.849 mW.
