FMVC006

Overview

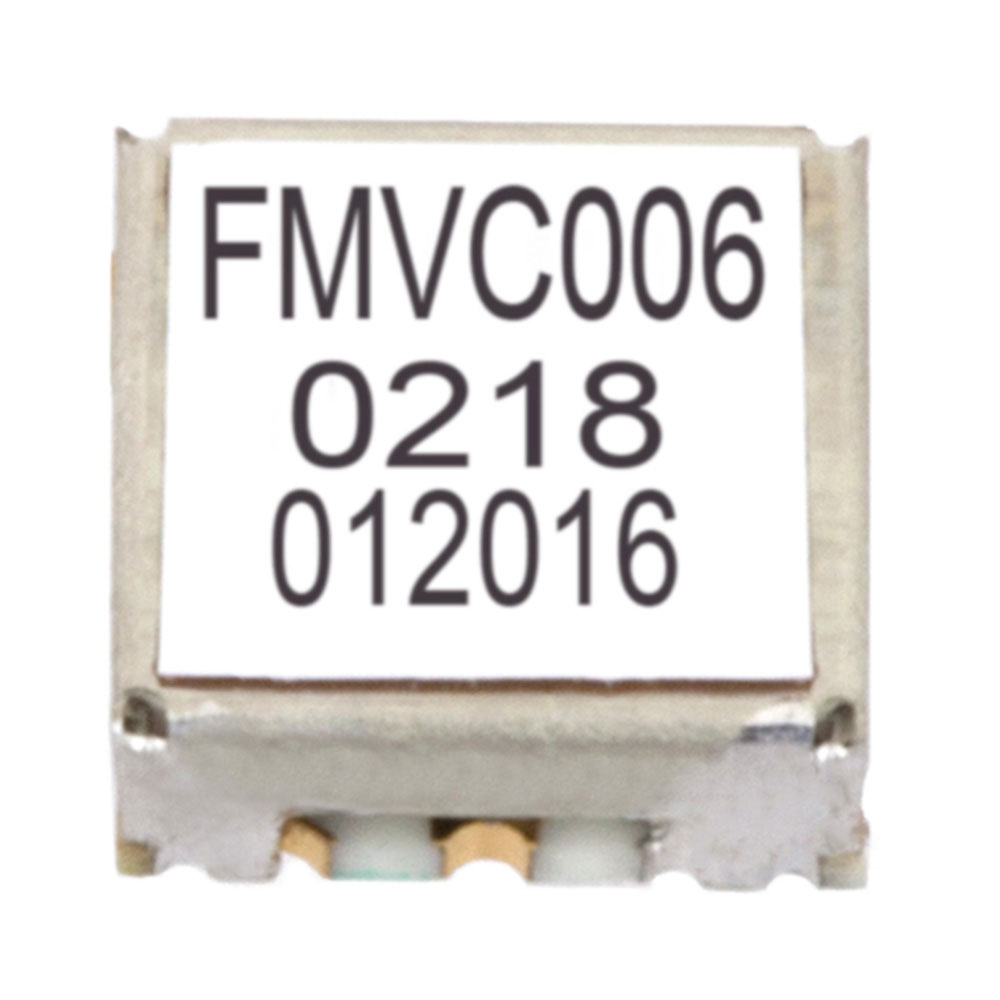

The FMVC006 is a voltage-controlled oscillator manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 2.75 GHz, with a center frequency of 2.375 GHz. The device utilizes a tuning voltage range of 0 V to 19 V for frequency modulation. It features a typical phase noise performance of -97 dBc/Hz and exhibits a second harmonic level of -10 dBc. The component is housed in an 8-SMD module package with dimensions of 4.40mm x 4.40mm x 1.90mm. It supports a supply voltage of 10V and maintains operation across a temperature range of -40°C to 85°C.

Feature Summary

• Voltage-controlled oscillation capability within the 2 GHz to 2.75 GHz spectrum
• Compact 8-SMD surface-mount module construction
• Wide tuning voltage input range from 0 V to 19 V
• Operational stability across extended industrial temperature ranges

Applications

• Frequency synthesis in communication systems
• Local oscillator sources in radio frequency receivers
• Signal generation in test and measurement equipment
• Phase-locked loop implementations

Procurement Notes

Verify the specific datasheet version and electrical characteristics against current manufacturer documentation before integration. Confirm that the 8-SMD package dimensions and pinout align with the target PCB layout. Ensure thermal management strategies accommodate the operating temperature range of -40°C to 85°C. Validate supply voltage requirements and tuning linearity for the intended application environment.

Selection Notes

Select this component when a stable voltage-controlled signal source is required between 2 GHz and 2.75 GHz. Consider the -97 dBc/Hz phase noise specification for applications sensitive to spectral purity. Evaluate the 0 V to 19 V tuning range against available control circuitry. The compact SMD form factor suits space-constrained designs requiring direct board mounting without additional connectorization.

Part Context

The FMVC006 belongs to Fairview Microwave's portfolio of voltage-controlled oscillators designed for RF and microwave applications. This series provides reliable frequency generation capabilities for various electronic systems. The component complements other RF modules and cable assemblies offered by the manufacturer, supporting complete system integration needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential cross-references or updated model equivalents.
