Product Detailed Parameters
- Description：VOLT CONTROL OSC 3.57GHZ-4.58GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：3.57 ~ 4.58GHz
- Frequency - Center：4.075GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0 V ~ 11.5 V
- 2nd Harmonic, Typ (dBc)：-17
- Icc Max：25mA
- Pushing (MHz/V)：145
- Power (dBm)：8 ±1
- Phase Noise Typ (dBc/Hz)：-83
- Operating Temperature：-40°C ~ 85°C
- Package / Case：8-SMD Module
- Size / Dimension：0.175" L x 0.175" W (4.40mm x 4.40mm)
- Height：0.075" (1.90mm)
Download product information
Overview

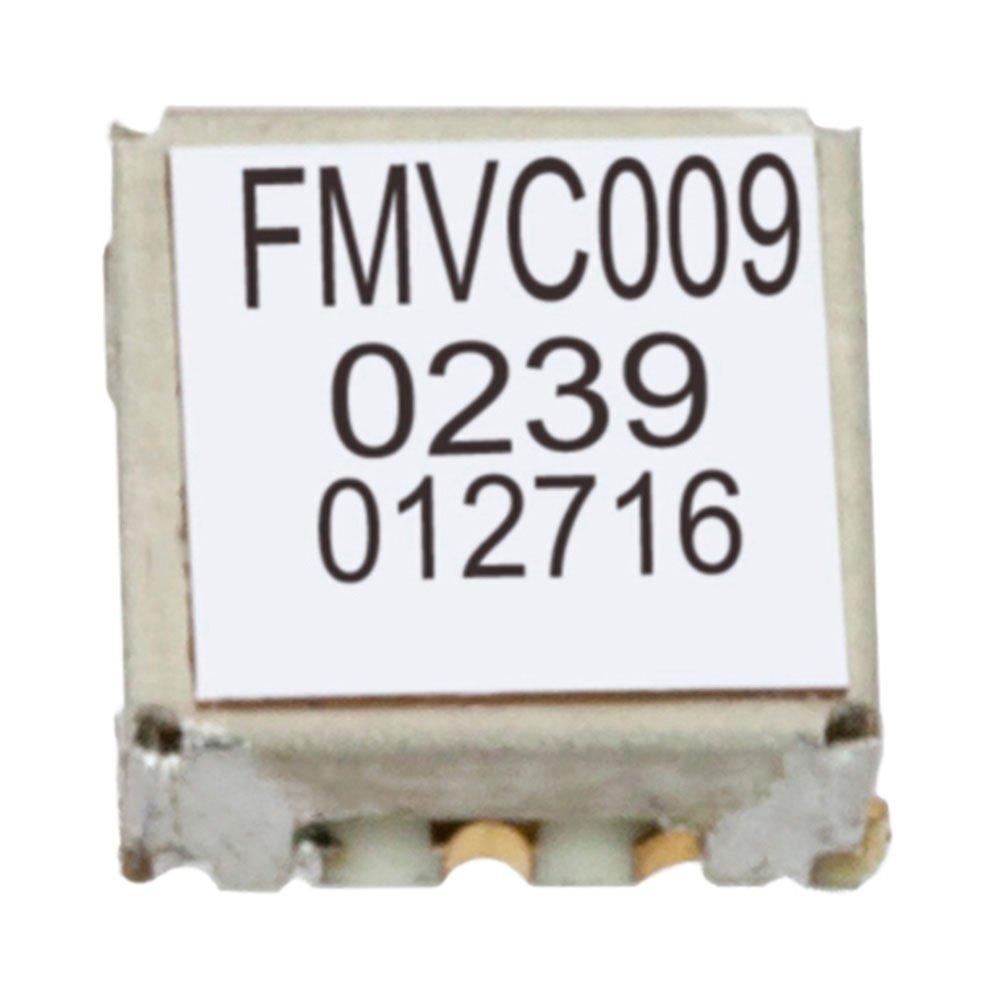

The FMVC009 is a voltage-controlled oscillator manufactured by Fairview Microwave, designed for high-frequency signal generation applications. It operates within a frequency range of 3.57 GHz to 4.58 GHz, providing a center frequency capability suitable for advanced RF systems. The device delivers an output power of 7.943 mW and exhibits a tuning sensitivity between 95 MHz/V and 145 MHz/V. It utilizes a surface-mount package with dimensions of 0.175 inches, facilitating integration into compact electronic designs requiring precise frequency control.
Feature Summary
- Voltage-controlled operation enabling precise frequency adjustment across the specified band
- Surface-mount construction optimized for automated assembly and space-constrained layouts
- High-frequency performance tailored for demanding RF and microwave signal generation tasks
Applications
- RF signal generation in communication systems
- Frequency synthesis modules
- Test and measurement equipment
Procurement Notes
Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received part matches the FMVC009 designation and packaging specifications. Review the official datasheet for handling instructions and storage conditions to maintain device integrity. Ensure compatibility with system voltage and interface requirements before integration.
Selection Notes
Select the FMVC009 when a voltage-controlled oscillator is required within the 3.57 GHz to 4.58 GHz range. Consider its 7.943 mW output power and specific tuning sensitivity characteristics against system noise and linearity requirements. Evaluate the 0.175-inch surface-mount footprint for PCB layout constraints compared to alternative oscillator packages.
Part Context
The FMVC009 belongs to the Fairview Microwave family of voltage-controlled oscillators, which includes models such as FMVC002, FMVC003, and FMVC004. This series provides various frequency ranges and performance metrics for different RF design needs. The FMVC009 specifically targets higher frequency applications compared to some lower-frequency counterparts in the lineup.
FAQ
What is the tuning sensitivity range of the FMVC009?
The tuning sensitivity ranges from 95 MHz/V to 145 MHz/V.
What is the physical package type for this component?
It uses a 0.175-inch surface-mount (SMT) package.
