FMVC011

Overview

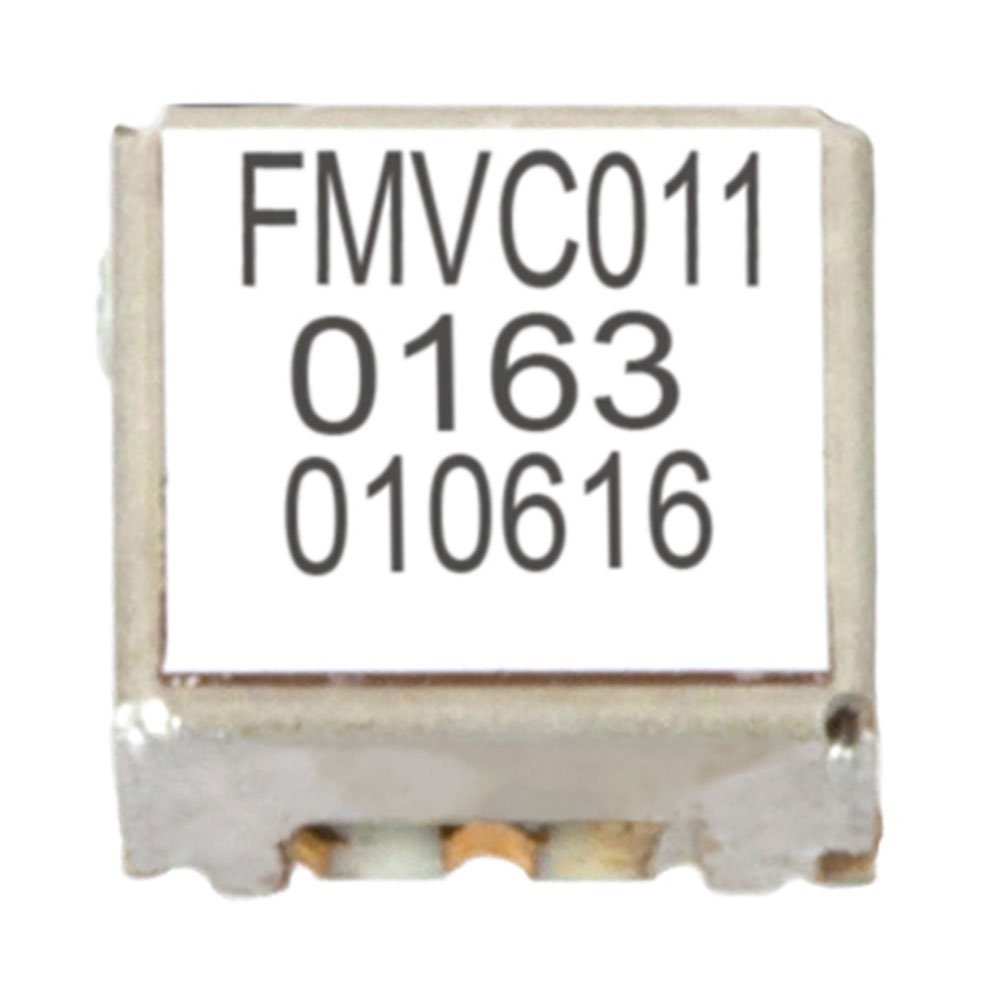

The FMVC011 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 4.8 GHz to 5.2 GHz, centered at approximately 5.0 GHz. The device delivers an output power of 2.512 mW and exhibits a typical phase noise of -80 dBc/Hz. Tuning sensitivity ranges from 160 MHz/V to 300 MHz/V. It utilizes a surface-mount package with dimensions of 0.175 inches.

Feature Summary

• Surface-mount voltage controlled oscillator design
• High-frequency operation in the C-band range
• Low phase noise performance characteristics

Applications

• Wireless communication systems
• Test and measurement equipment
• Signal generation modules

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels. Confirm datasheet revisions match production batches. Ensure storage conditions comply with moisture sensitivity levels for surface-mount devices. Validate electrical parameters against specific lot testing reports prior to integration into high-reliability circuits.

Selection Notes

Select this VCO for applications requiring precise frequency synthesis between 4.8 GHz and 5.2 GHz. Consider tuning sensitivity requirements when designing control loops. Evaluate thermal management needs due to surface-mount construction. Compare phase noise specifications against system jitter budgets to ensure signal integrity compliance.

Part Context

This component belongs to Fairview Microwave's portfolio of RF oscillators. It serves as a core frequency source for microwave circuits. The product line focuses on compact, high-performance solutions for modern electronic systems requiring stable signal generation at higher frequencies.

Replacement Considerations

No public substitute part numbers are documented.
