FMVC012

Overview

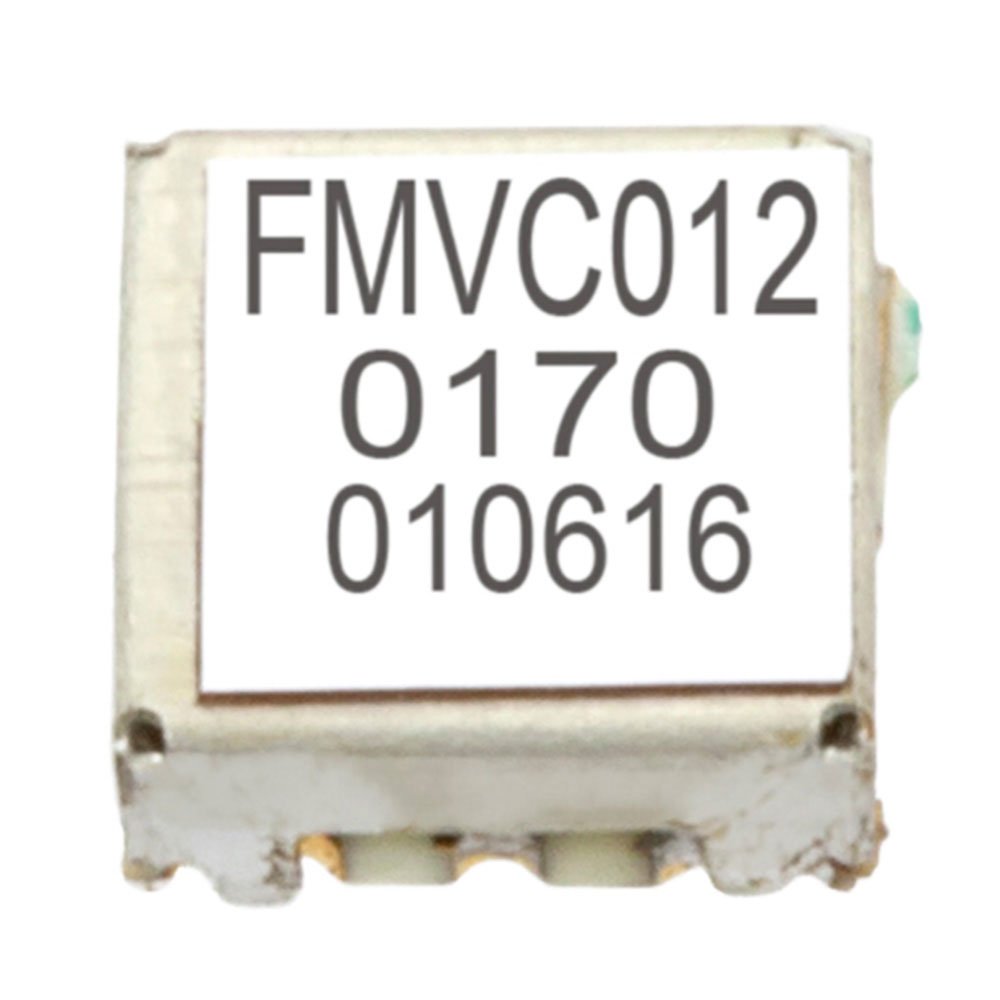

The Fairview Microwave FMVC012 is a voltage-controlled oscillator (VCO) designed for surface-mount applications. It operates within a frequency range of 4.8 GHz to 5.7 GHz, with a center frequency of 5.25 GHz. The device features a typical phase noise performance of -84 dBc/Hz and requires a supply voltage of 12 V. It utilizes an SMT package format suitable for automated assembly processes.

Feature Summary

• Surface-mount technology implementation for compact circuit integration
• Voltage-controlled operation across a defined microwave frequency band
• Optimized phase noise characteristics for signal purity

Applications

• Microwave communication systems
• Signal generation modules
• Test and measurement equipment

Procurement Notes

Verify the active status and availability directly with authorized distributors or the manufacturer. Confirm that the specific surface-mount package dimensions align with your PCB footprint requirements. Ensure the 12 V supply voltage matches your system design constraints before procurement.

Selection Notes

Select this component when a surface-mount VCO is required for the 4.8 GHz to 5.7 GHz range. Consider the -84 dBc/Hz phase noise specification against your system's sensitivity requirements. Verify compatibility with standard SMT reflow processes during the design phase.

Part Context

The FMVC012 belongs to the Fairview Microwave VCO product line, which provides voltage-controlled oscillators for various RF and microwave applications. This series supports both through-hole and surface-mount configurations, offering flexibility in board layout and manufacturing methods for different electronic designs.
