FMVC018

Overview

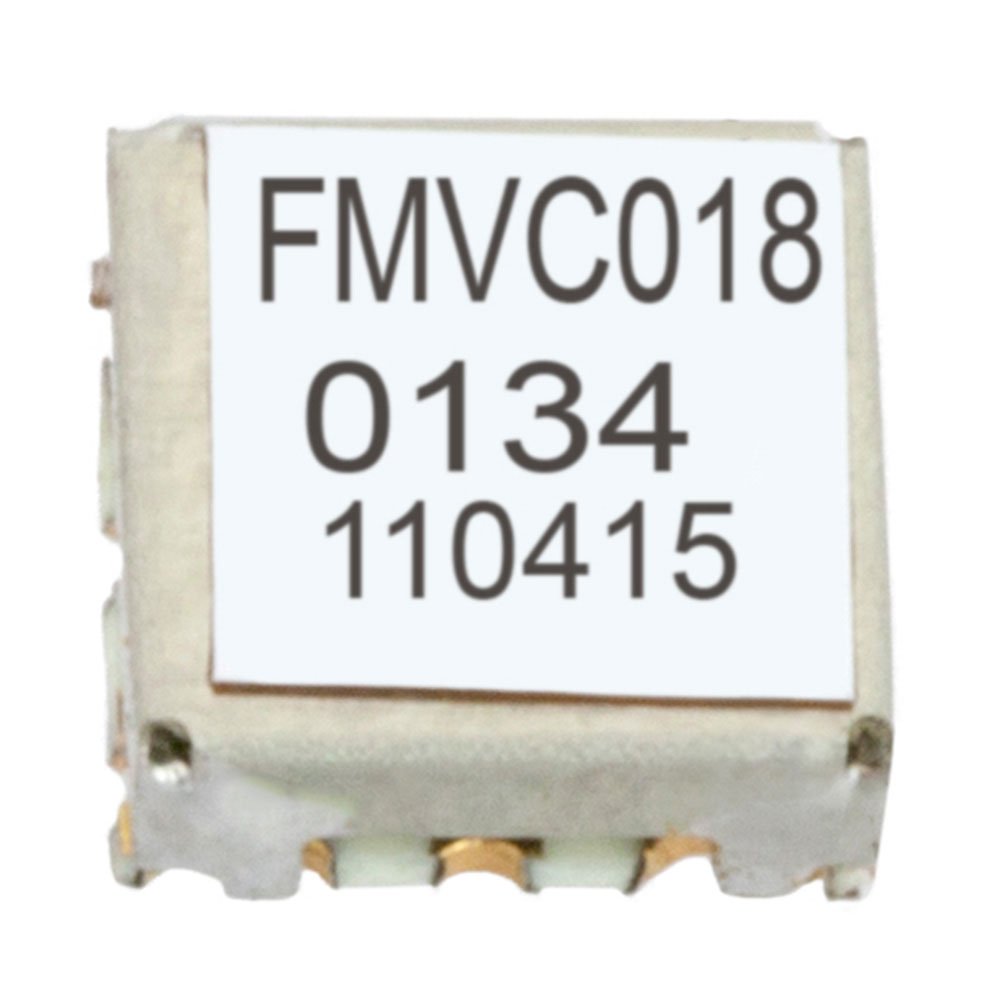

The Fairview Microwave FMVC018 is a voltage-controlled oscillator operating within the 9 GHz to 10 GHz frequency range. It features a center frequency of 9.5 GHz and accepts a tuning voltage from 0 V to 11 V. The device delivers an output power of approximately 8.913 mW, with a typical second harmonic level of -30 dBc. Tuning sensitivity ranges between 50 MHz/V and 250 MHz/V.

Feature Summary

• Provides stable oscillation across the 9 GHz to 10 GHz microwave spectrum
• Offers precise frequency control via a 0 V to 11 V tuning voltage input
• Delivers consistent output power with suppressed secondary harmonics

Applications

• Microwave communication systems requiring local oscillator signals
• Frequency synthesis circuits in test and measurement equipment
• Radar system signal generation modules

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances before integration. Confirm that the required tuning voltage range aligns with your system's supply capabilities. Ensure thermal management meets the component's operational requirements for sustained performance at high frequencies.

Selection Notes

Select this model when a fixed 9.5 GHz center frequency is required. Consider the tuning sensitivity range if linear frequency modulation is critical. Evaluate the output power level against downstream amplifier or mixer requirements to ensure proper signal integrity without additional gain stages.

Part Context

This component belongs to Fairview Microwave's voltage-controlled oscillator series designed for high-frequency applications. It complements other RF modules by providing essential signal generation capabilities. The design focuses on reliability and spectral purity for demanding microwave environments.

Replacement Considerations

No public substitute part numbers are documented.
