FMVC019

Overview

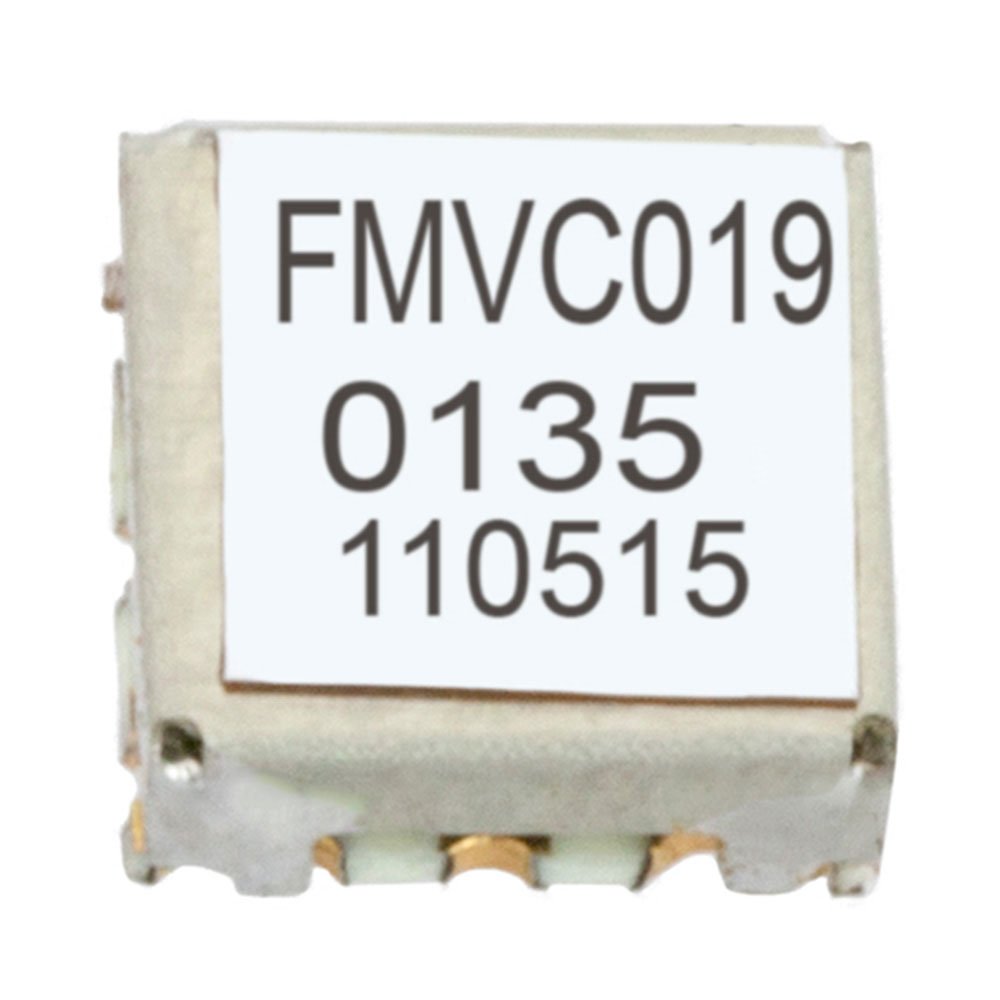

The Fairview Microwave FMVC019 is a voltage-controlled oscillator (VCO) designed for high-frequency applications. It operates within the 10 GHz to 11 GHz frequency range, providing a center frequency of 10.5 GHz. The device utilizes a tuning voltage input ranging from 0 V to 19 V to adjust the output frequency. It features a typical phase noise performance of -97 dBc/Hz and maintains a secondary harmonic level of -10 dBc. The component is housed in an 8-SMD module package with dimensions of 4.40 mm x 4.40 mm x 1.90 mm. It supports a supply voltage of 10 V and draws a maximum current of 15 mA. The unit is rated for operation between -40°C and +85°C.

Feature Summary

• Provides stable microwave signal generation across the 10 GHz to 11 GHz band
• Enables precise frequency adjustment via a 0 V to 19 V control voltage input
• Delivers low phase noise characteristics suitable for sensitive RF systems
• Offers compact surface-mount packaging for efficient board integration

Applications

• Microwave communication transceivers
• Test and measurement instrumentation
• Satellite navigation systems
• Radar subsystems

Procurement Notes

Verify the specific manufacturing lot date code upon receipt to ensure compliance with project timelines. Confirm that the received units match the FMVC019 designation exactly. Inspect the 8-SMD package for physical integrity before soldering. Ensure that the handling procedures adhere to electrostatic discharge protocols. Validate that the supplier documentation aligns with the official Fairview Microwave specifications.

Selection Notes

Select this component when a fixed 10.5 GHz center frequency is required within the specified bandwidth. Consider the 8-SMD form factor for space-constrained designs. Evaluate the -97 dBc/Hz phase noise against system sensitivity requirements. Verify that the available 0 V to 19 V tuning range matches the control circuit capabilities. Assess the thermal operating range for environmental compatibility.

Part Context

The FMVC019 belongs to the Fairview Microwave family of voltage-controlled oscillators. It complements other RF modules by providing dedicated microwave frequency generation. Unlike passive components, it actively generates signals based on control inputs. This part fills the role of a local oscillator or carrier generator in high-frequency circuits.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
