Product Detailed Parameters
- Description：VOLT CONTROL OSC 25MHZ-50MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：-
- Frequency - Center：-
- Voltage - Supply：-
- Tuning Voltage (VDC)：-
- 2nd Harmonic, Typ (dBc)：-
- Icc Max：-
- Pushing (MHz/V)：-
- Power (dBm)：-
- Phase Noise Typ (dBc/Hz)：-
- Operating Temperature：-
- Package / Case：-
- Size / Dimension：-
- Height：-
Download product information
Overview

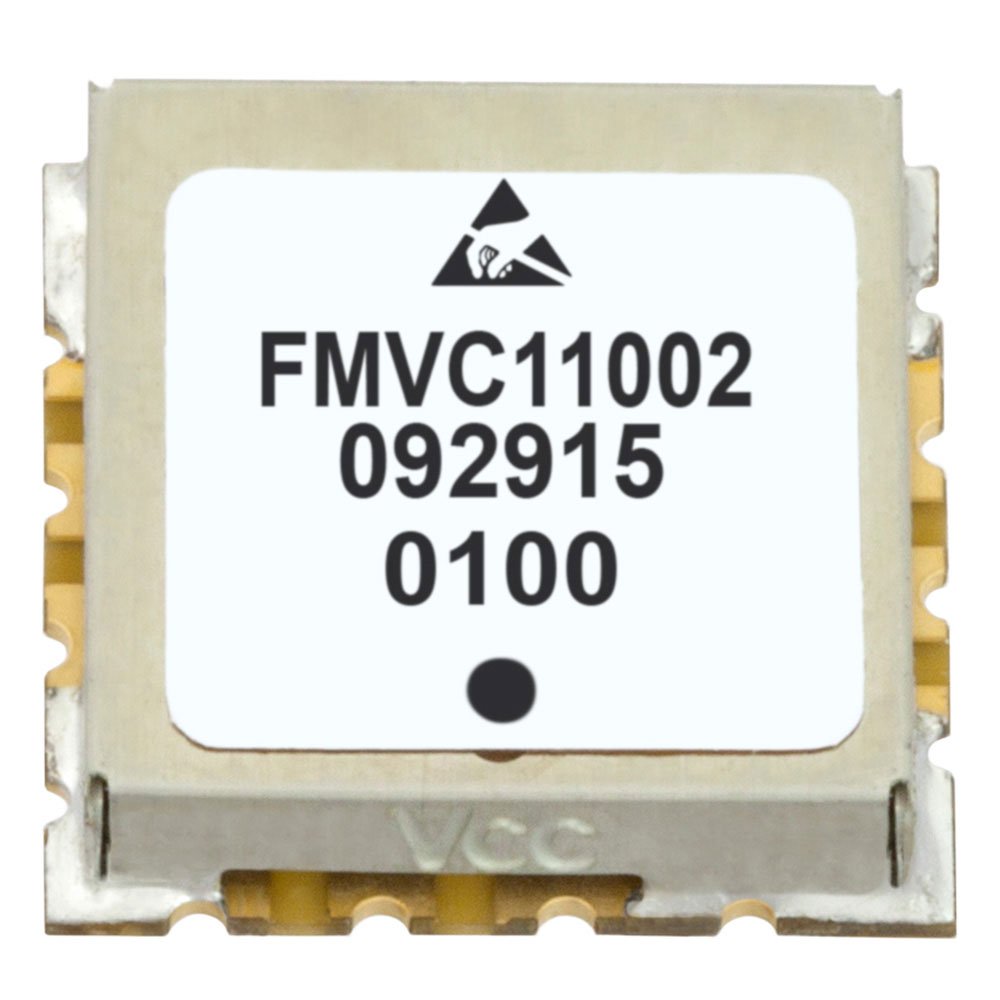

The FMVC11002 is a center frequency voltage controlled oscillator (VCO) manufactured by Fairview Microwave. This component belongs to the category of crystals, oscillators, and resonators. It is designed for applications requiring precise frequency generation with voltage control capabilities. The device integrates active components to produce stable RF signals adjustable via an input control voltage.
Feature Summary
- Voltage-controlled operation for dynamic frequency adjustment
- Designed as a center frequency oscillator module
- Integrated active circuitry for signal generation
Applications
- RF signal generation systems
- Frequency synthesis circuits
- Communication equipment local oscillators
Procurement Notes
Verify the specific frequency range and output power specifications against the official Fairview Microwave datasheet before integration. Confirm that the supply voltage requirements match your system design. Ensure thermal management provisions are adequate for continuous operation. Check for any required calibration procedures upon installation.
Selection Notes
Select this VCO when a tunable center frequency source is required within the specified operational band. Evaluate the phase noise and spurious performance characteristics against system sensitivity requirements. Consider the control voltage linearity and tuning range compatibility with your modulation scheme. Verify interface impedance matching for optimal signal integrity.
Part Context
Fairview Microwave provides a broad portfolio of RF and microwave components, including over one million SKUs. The FMVC11002 falls under their active component offerings, specifically in the oscillator and resonator category. The company emphasizes high-quality manufacturing and global distribution capabilities for these specialized electronic parts.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or updated series replacements if discontinuation occurs.
