FMVC11005

Overview

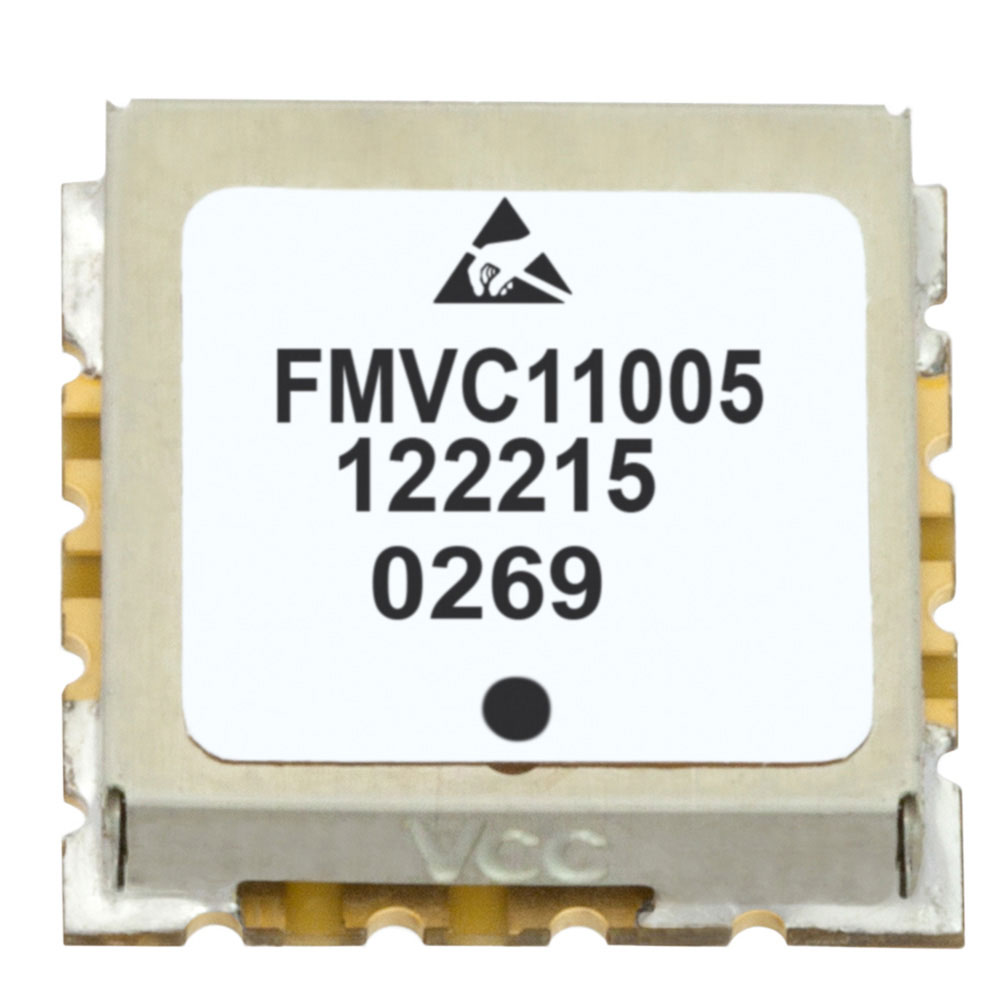

The FMVC11005 is a Voltage Controlled Oscillator manufactured by Fairview Microwave, designed for frequency synthesis applications. It operates within a frequency range of 40 MHz to 100 MHz, with a center frequency of 70 MHz. The device delivers an output power of 17.783 mW and features a tuning sensitivity of 2 to 5 MHz/V. It requires a supply voltage of 15V and accepts a tuning voltage between 0 V and 20 V. Typical second harmonic performance is -14 dBc, while phase noise is specified at -118 dBc.

Feature Summary

• Voltage-controlled operation with defined tuning sensitivity
• Stable output power delivery in milliwatt range
• Low phase noise characteristics for signal purity

Applications

• Frequency synthesis systems
• Signal generation modules
• RF test equipment

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors like Mouser to confirm electrical parameters such as phase noise and tuning sensitivity. Ensure supply voltage requirements match system design constraints before procurement.

Selection Notes

Select this component when a stable VCO in the 40-100 MHz range is required. Consider the 15V supply requirement and 0-20V tuning input range during circuit design. Evaluate phase noise specifications against application sensitivity needs.

Part Context

This part belongs to Fairview Microwave's oscillator portfolio, specifically focusing on voltage-controlled oscillators. It serves as a core frequency generation element in RF circuits where tunability and spectral purity are critical design factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for potential alternatives if this specific model becomes unavailable.

FAQ

What is the operating frequency range?

The FMVC11005 operates from 40 MHz to 100 MHz.

What is the typical phase noise specification?

The typical phase noise is -118 dBc.
