FMVC11006

Overview

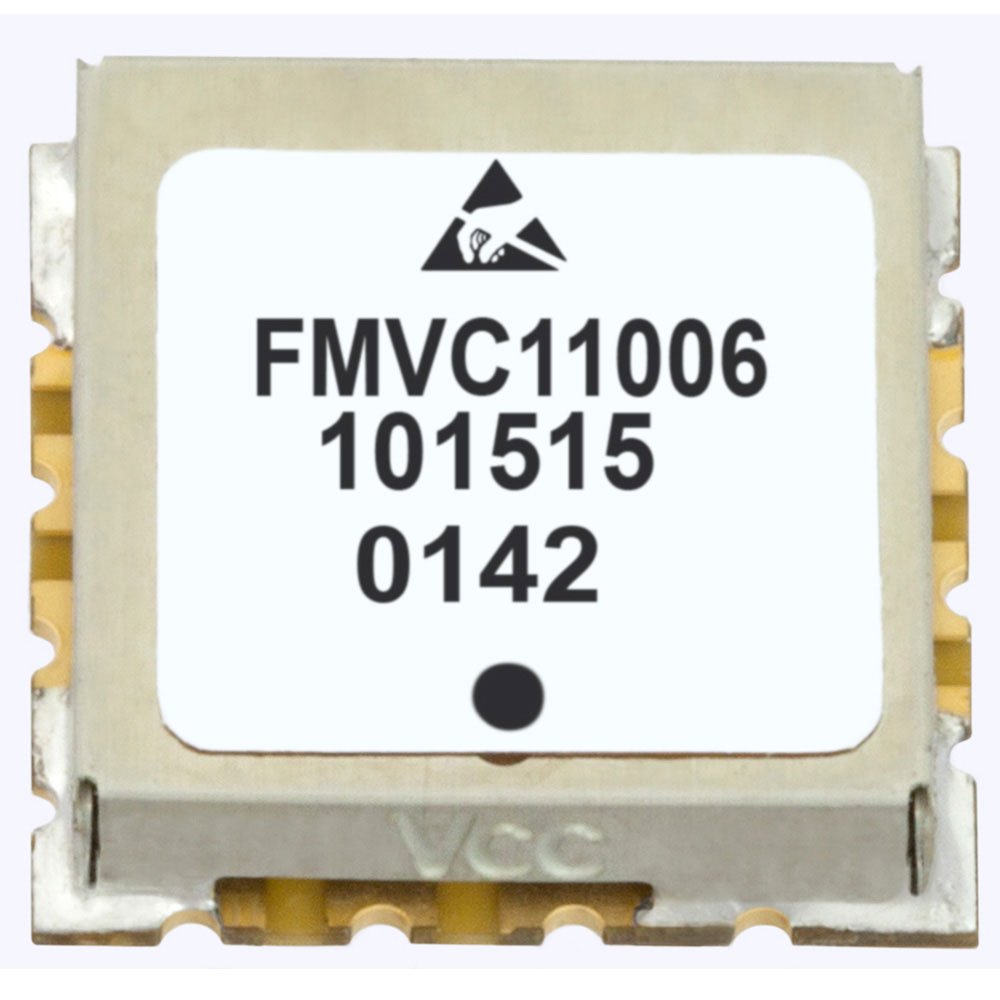

The FMVC11006 is a voltage-controlled oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 50 MHz to 100 MHz and delivers an output power of 12 ±2 dBm. The device exhibits a typical phase noise of -115 dBc/Hz. It functions reliably across an operating temperature range of -40°C to +85°C. The component is housed in a 16-SMD, no-lead package with dimensions of 0.500 inches in length and 0.500 inches in width.

Feature Summary

• Voltage-controlled oscillation capability within the 50 MHz to 100 MHz band
• Low phase noise performance specified at -115 dBc/Hz
• Robust thermal operation from -40°C to +85°C

Applications

• Frequency synthesis systems
• Signal generation modules
• Communication equipment local oscillators

Procurement Notes

Verify the specific datasheet for the FMVC11006 to confirm electrical tolerances and pinout configurations before integration. Ensure that the supply chain source provides authentic components matching the manufacturer specifications. Cross-reference the 16-SMD package dimensions against the target PCB layout to guarantee mechanical compatibility. Confirm operational temperature limits align with the intended environmental conditions of the final assembly.

Selection Notes

Select this VCO when a stable signal source is required between 50 MHz and 100 MHz. The -115 dBc/Hz phase noise specification makes it suitable for applications demanding high spectral purity. Consider the 12 dBm output power level for direct driving requirements without additional amplification. The wide operating temperature range supports deployment in varied environmental conditions.

Part Context

Fairview Microwave specializes in providing a broad portfolio of RF, microwave, and mmWave components. The FMVC11006 belongs to their Voltage Controlled Oscillator category, designed to offer precise frequency control. This product line supports engineers requiring reliable signal sources for complex electronic systems and test instrumentation setups.

Replacement Considerations

No public substitute part numbers are documented for the FMVC11006.
