Product Detailed Parameters
- Description：VOLT CONTROL OSC 75MHZ-150MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：75 ~ 150MHz
- Frequency - Center：112.5MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 18 V
- 2nd Harmonic, Typ (dBc)：-20
- Icc Max：20mA
- Pushing (MHz/V)：8
- Power (dBm)：11 ±1
- Phase Noise Typ (dBc/Hz)：-110
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

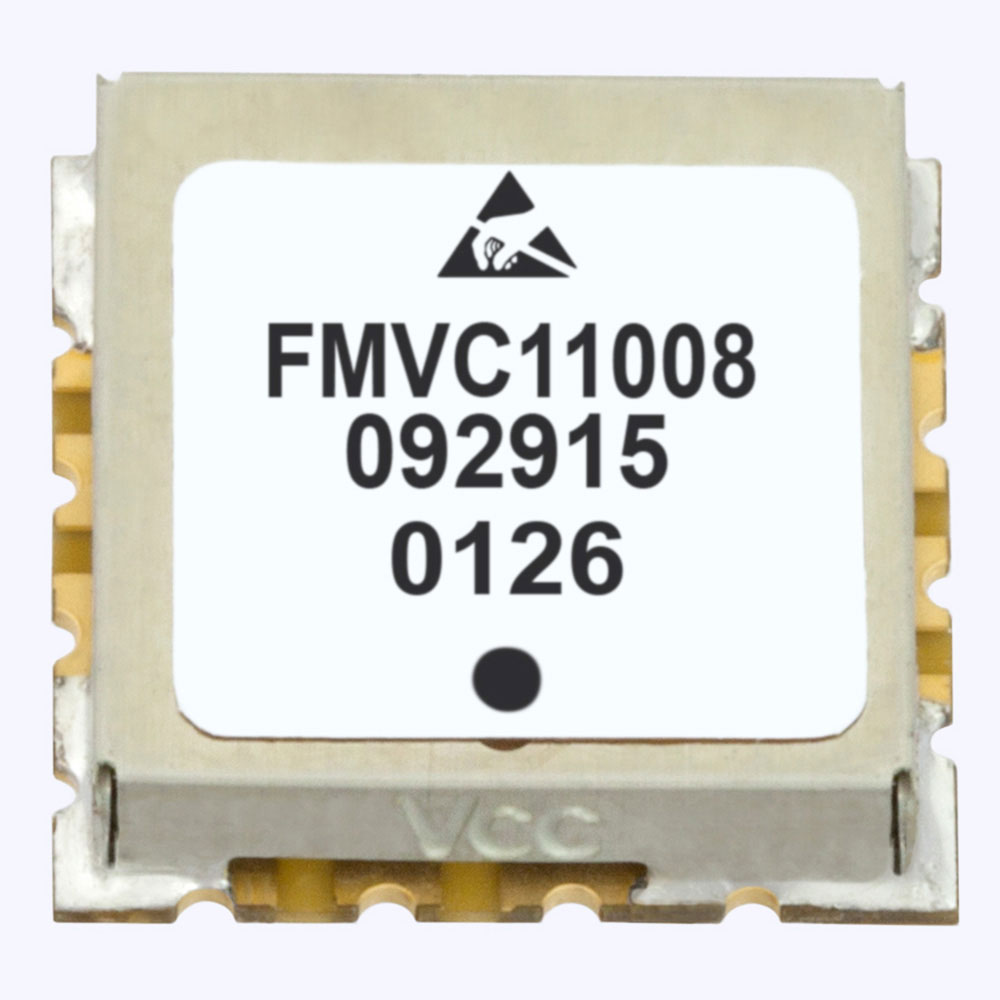

The FMVC11008 is a voltage-controlled oscillator manufactured by Fairview Microwave, designed for surface-mount technology applications. It operates within a frequency range of 75 MHz to 150 MHz. The device delivers an output power of 15.849 mW and features a tuning sensitivity of 3 to 8 MHz per volt. This component is housed in a compact 0.5-inch SMT package, suitable for integration into various RF systems requiring precise frequency control.
Feature Summary
- Voltage-controlled operation with defined tuning sensitivity
- Surface-mount technology (SMT) packaging for automated assembly
- Compact physical footprint suitable for space-constrained designs
Applications
- Frequency synthesis circuits
- RF signal generation modules
- Communication system local oscillators
Procurement Notes
Verify the specific datasheet version and electrical characteristics against current Fairview Microwave documentation before procurement. Confirm that the surface-mount package dimensions and pinout align with the target PCB layout. Ensure supply chain availability matches project timelines, as lead times may vary. Cross-reference part numbers to avoid confusion with similar models in the manufacturer's portfolio.
Selection Notes
Select the FMVC11008 when a low-frequency VCO in a small SMT package is required. Evaluate the 75-150 MHz range against system requirements. Consider the 15.849 mW output power and tuning sensitivity for signal integrity needs. Compare thermal performance and phase noise specifications if available in the official datasheet against alternative components.
Part Context
This component belongs to Fairview Microwave's voltage-controlled oscillator series. It serves as a frequency source in RF designs. The model distinguishes itself through its specific 75-150 MHz range and SMT form factor. It complements other passive and active RF components in complete system solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Fairview Microwave directly for equivalent or cross-reference options.
