Product Detailed Parameters
- Description：VOLT CONTROL OSC 100MHZ-200MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：100 ~ 200MHz
- Frequency - Center：150MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 18 V
- 2nd Harmonic, Typ (dBc)：-12
- Icc Max：19mA
- Pushing (MHz/V)：8
- Power (dBm)：11 ±0.5
- Phase Noise Typ (dBc/Hz)：-113
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

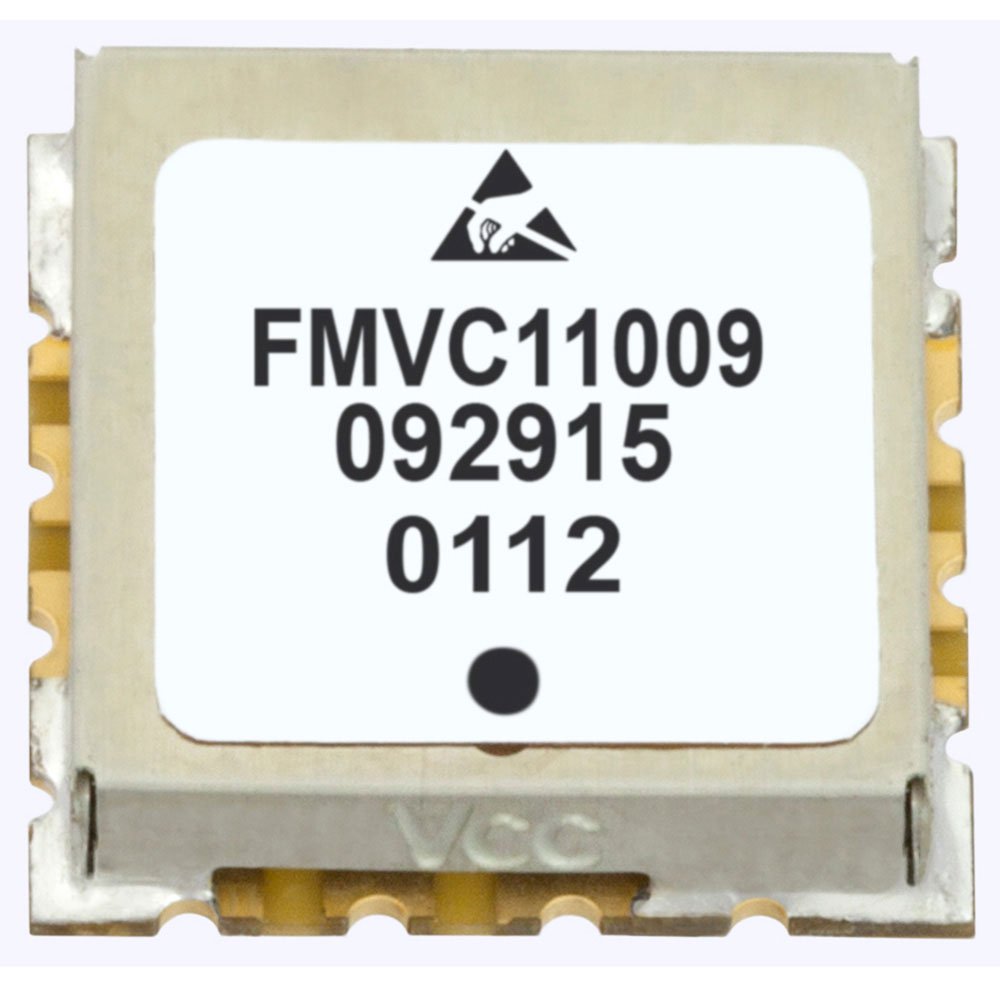

The FMVC11009 is a Voltage Controlled Oscillator manufactured by Fairview Microwave. It operates within a frequency range of 100 MHz to 200 MHz, with a center frequency of 150 MHz. The device provides an output power of 11 ±0.5 dBm and features a tuning sensitivity of 5 to 6 MHz/V. Control is achieved via a voltage input ranging from 0 V to 18 V. Harmonic suppression includes a -12 dB second harmonic level. This component is designed for applications requiring precise frequency generation within the specified band.
Feature Summary
- Voltage-controlled operation with defined tuning sensitivity
- Fixed center frequency at 150 MHz
- Controlled harmonic distortion levels
Applications
- Frequency synthesis systems
- Signal generation modules
- Communication equipment local oscillators
Procurement Notes
Verify availability status carefully as this product is listed as no longer manufactured. Confirm if existing stock or obsolete inventory channels are the only sources. Check datasheet revisions for any final technical specifications before procurement decisions. Ensure replacement components meet identical electrical requirements if new production units are unavailable.
Selection Notes
Select this component only if the specific 100 MHz to 200 MHz range and 150 MHz center frequency align with system requirements. Evaluate the 0 V to 18 V control voltage compatibility with existing circuitry. Consider the discontinued status when planning long-term supply chain stability and potential need for redesigning around alternative active oscillators.
Part Context
Fairview Microwave specializes in RF and microwave interconnects and modules. The FMVC11009 represents their historical offering in voltage-controlled oscillator technology. It fits within the broader category of wireless and RF modules used in test, measurement, and communication infrastructure where stable, tunable signal sources are required.
Replacement Considerations
FMVC11009 is marked as no longer manufactured. No public confirmed substitute part numbers are provided in the source data. Engineers must identify equivalent VCOs from other manufacturers that match the 100-200 MHz range, 11 dBm power, and 0-18V tuning voltage specifications.
