Product Detailed Parameters
- Description：VOLT CONTROL OSC 150MHZ-300MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：-
- Frequency - Center：-
- Voltage - Supply：-
- Tuning Voltage (VDC)：-
- 2nd Harmonic, Typ (dBc)：-
- Icc Max：-
- Pushing (MHz/V)：-
- Power (dBm)：-
- Phase Noise Typ (dBc/Hz)：-
- Operating Temperature：-
- Package / Case：-
- Size / Dimension：-
- Height：-
Download product information
Overview

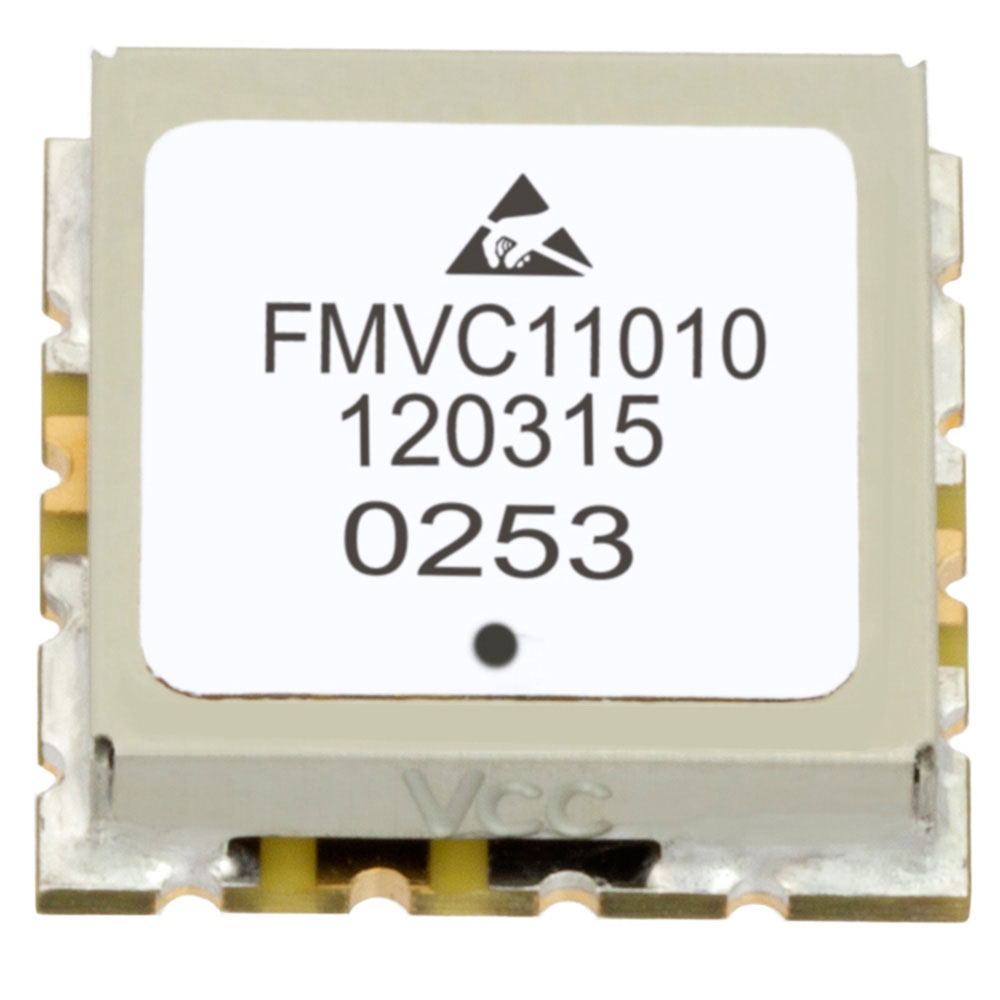

The FMVC11010 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 150 MHz to 300 MHz. The device delivers an output power of 15.849 mW and exhibits a tuning sensitivity between 5 MHz/V and 10 MHz/V. It utilizes a Surface Mount Technology (SMT) package with a footprint dimension of 0.5 inches.
Feature Summary
- Voltage-controlled operation for frequency modulation
- Surface mount technology construction
- Defined tuning sensitivity characteristics
Applications
- Frequency synthesis systems
- Signal generation circuits
- Communication transceivers
Procurement Notes
Verify the specific datasheet version for precise electrical tolerances and thermal management requirements. Confirm that the SMT pad layout matches your PCB design guidelines. Ensure supply chain channels provide authentic components from Fairview Microwave to guarantee performance reliability in RF applications.
Selection Notes
Select this component when a VCO operating between 150 MHz and 300 MHz is required. Consider the 15.849 mW output power level for system gain calculations. Evaluate the 0.5-inch SMT form factor against available board space constraints before integration into the final assembly.
Part Context
This VCO belongs to Fairview Microwave's portfolio of radio frequency signal generation components. It serves as a core element in systems requiring stable, tunable carrier frequencies. The device complements other passive and active RF modules provided by the manufacturer for complete circuit solutions.
Replacement Considerations
FMVC11010
FAQ
What is the frequency range of the FMVC11010?
The FMVC11010 operates within a frequency range of 150 MHz to 300 MHz.
What is the typical output power of this oscillator?
The device provides an output power of 15.849 mW.
