Product Detailed Parameters
- Description：VOLT CONTROL OSC 1.2GHZ-1.8GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：1.2 ~ 1.8GHz
- Frequency - Center：1.5GHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-12
- Icc Max：23mA
- Pushing (MHz/V)：85
- Power (dBm)：11 -1.5, +2.5
- Phase Noise Typ (dBc/Hz)：-89
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview

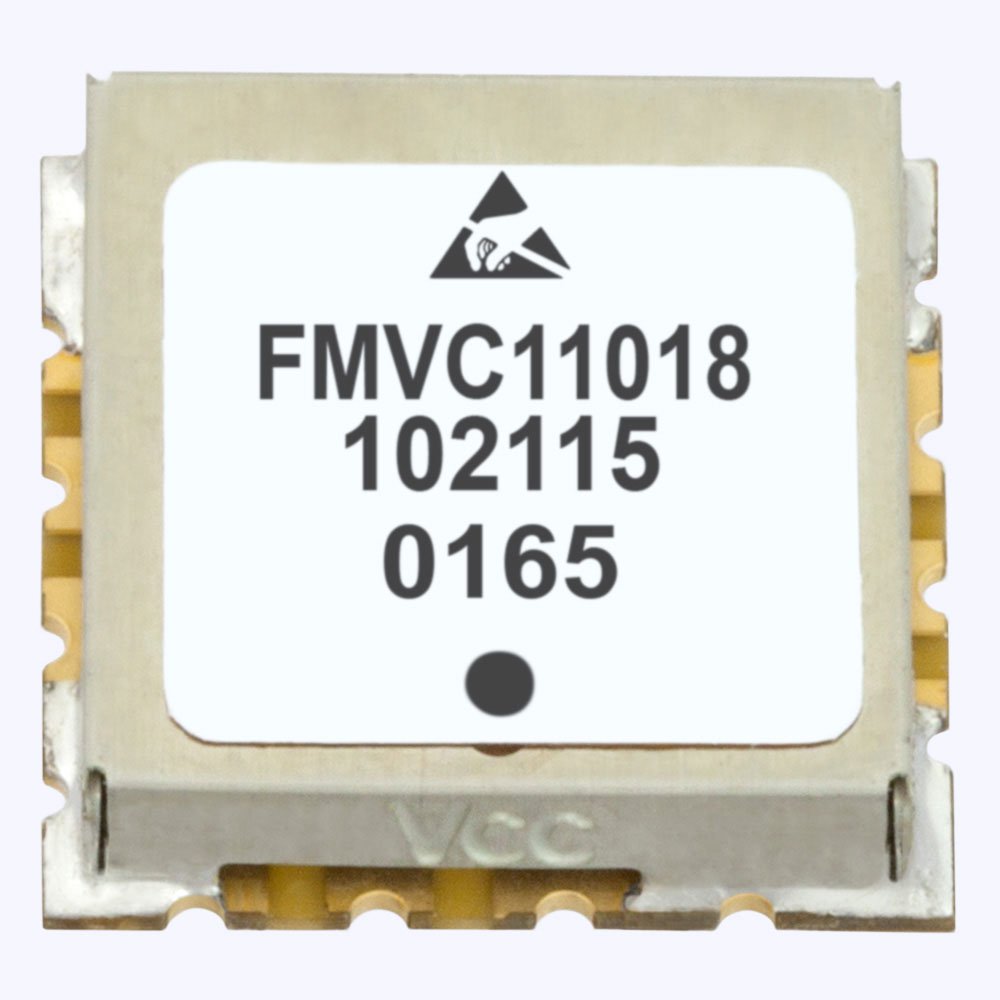

The FMVC11018 is a high-reliability, low-noise Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 1.2 GHz to 1.8 GHz and utilizes a surface-mount technology (SMT) package with dimensions of 0.5 inches. The device features a voltage tuning range across its specified band and exhibits a phase noise performance of -89 dBc/Hz.
Feature Summary
- High reliability construction suitable for demanding environments
- Low noise characteristics for signal integrity
- Voltage-controlled tuning across the operational bandwidth
Applications
- Chip evaluations
- Signal integrity measurements
- Coplanar waveguide testing
- Substrate characterization
Procurement Notes
Verify the specific datasheet version and manufacturing lot details before procurement. Confirm that the SMT footprint matches the design requirements. Ensure environmental compliance documentation aligns with project standards. Cross-reference the phase noise specifications against system sensitivity limits to guarantee adequate performance margins.
Selection Notes
Select this component when a stable, low-noise VCO is required for frequencies between 1.2 GHz and 1.8 GHz. The SMT form factor aids in compact circuit board layouts. Consider the -89 dBc/Hz phase noise figure for applications sensitive to spectral purity. Validate compatibility with existing voltage control circuits and power supply constraints.
Part Context
Fairview Microwave specializes in RF, microwave, and mmWave components. This VCO belongs to their portfolio of precision oscillators designed for test equipment and communication systems. The product line emphasizes high reliability and consistent performance metrics for professional engineering applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer channels for direct equivalents or updated series replacements.
