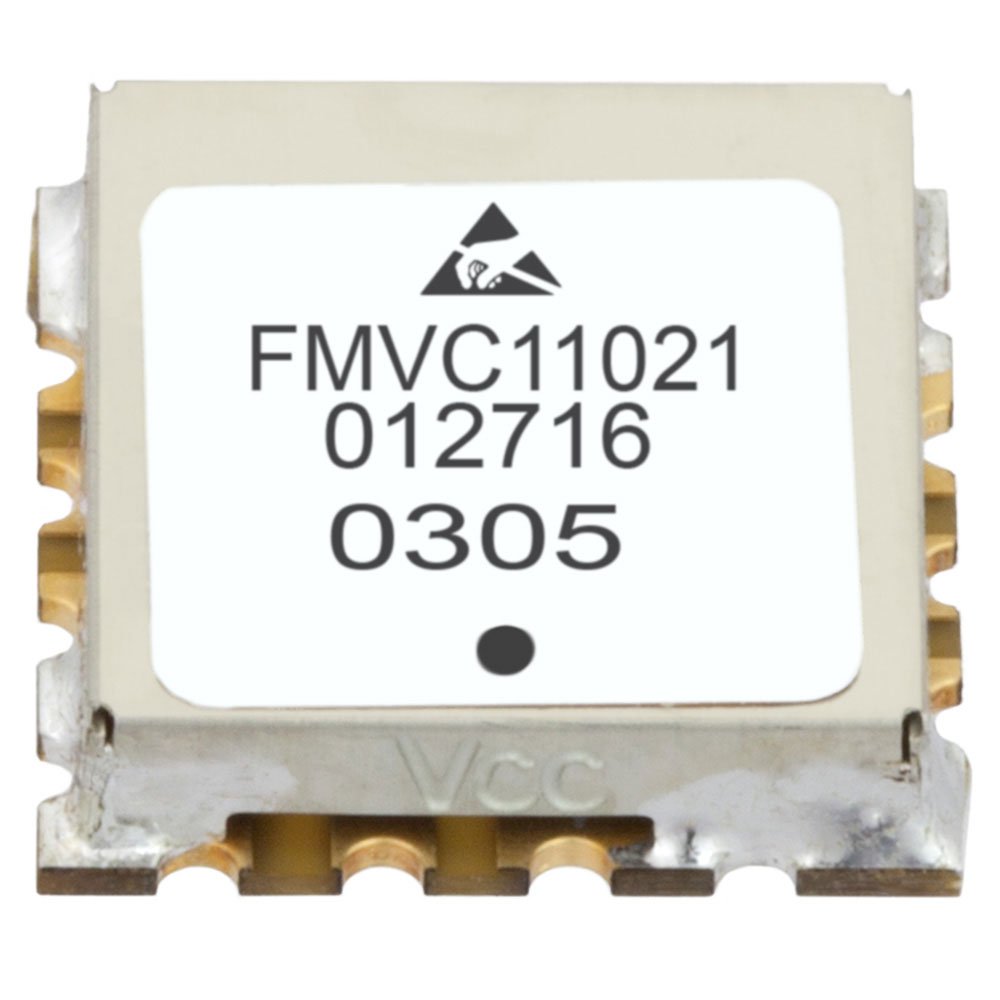

FMVC11021

$39.92

Description：VOLT CONTROL OSC 1.5GHZ-2.5GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:4089553734d6 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 1.5GHZ-2.5GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：1.5 ~ 2.5GHz
Frequency - Center：2GHz
Voltage - Supply：15V
Tuning Voltage (VDC)：0 V ~ 16 V
2nd Harmonic, Typ (dBc)：-12 (Max)
Icc Max：22mA
Pushing (MHz/V)：-
Power (dBm)：10 (min)
Phase Noise Typ (dBc/Hz)：-84 (Max)
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

FMVC11021

Overview

The FMVC11021 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 1.5 GHz to 2.5 GHz and features a phase noise specification of -84 dBc/Hz. The component utilizes a 0.5-inch Surface Mount Technology (SMT) package for integration into circuit boards.

Feature Summary

Surface mount design for automated assembly
Voltage controlled oscillation capability
Defined operational frequency bandwidth

Applications

RF signal generation circuits
Communication system local oscillators
Test and measurement equipment

Procurement Notes

Verify the specific datasheet from Fairview Microwave or authorized distributors to confirm electrical parameters and mechanical dimensions. Ensure compatibility with surface mount assembly processes and check for RoHS compliance status before procurement.

Selection Notes

Select this component when a surface-mount VCO is required for frequencies between 1.5 GHz and 2.5 GHz. Consider the -84 dBc/Hz phase noise requirement and the 0.5-inch footprint constraints during PCB layout and system design.

Part Context

This part belongs to the RF connector accessories and cable assemblies category offered by Fairview Microwave, specifically focusing on active microwave components like voltage controlled oscillators for high-frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for equivalent performance specifications if direct replacement is necessary.
