FMVC11022

$39.92

Description：VOLT CONTROL OSC 2GHZ-2.75GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:1d98f54c2ea9 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 2GHZ-2.75GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：2 ~ 2.75GHz
Frequency - Center：2.375GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-12 (Max)
Icc Max：21mA
Pushing (MHz/V)：-
Power (dBm)：7 (min)
Phase Noise Typ (dBc/Hz)：-85 (Max)
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

FMVC11022

Overview

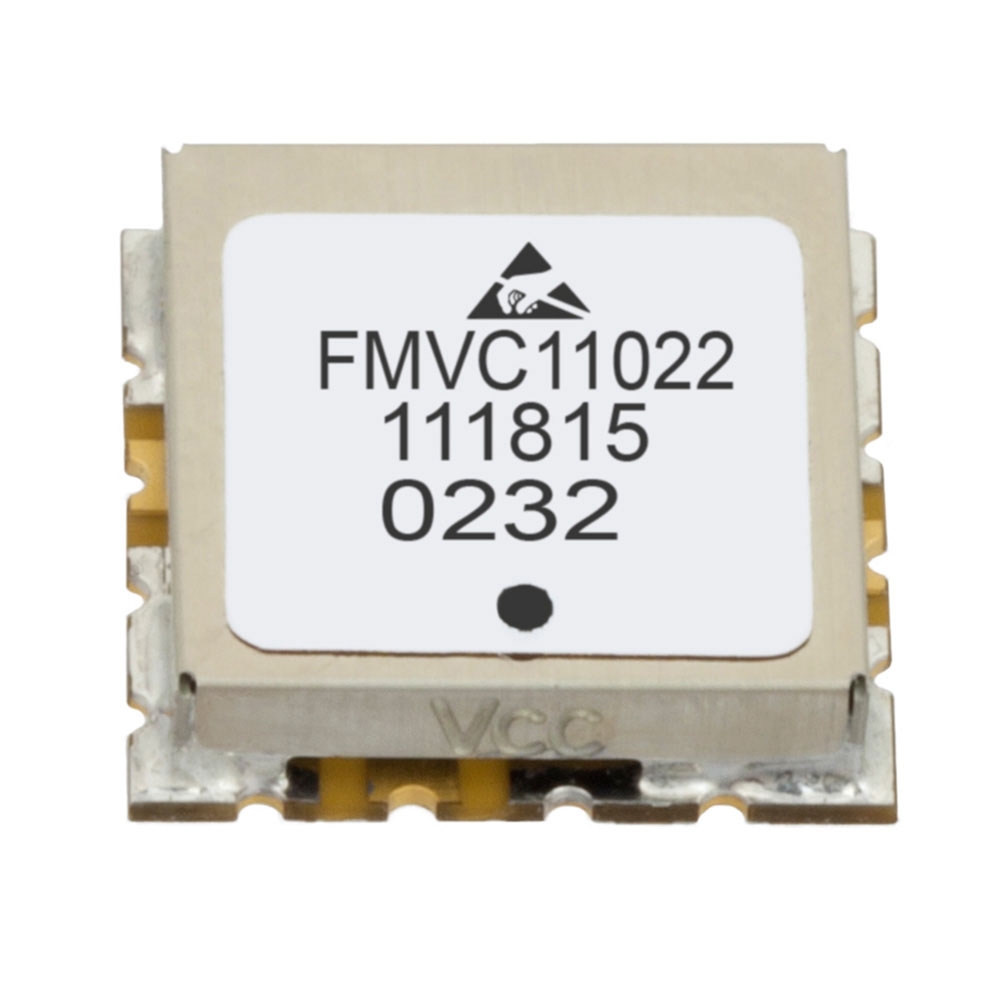

The FMVC11022 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 2.75 GHz, with a center frequency of 2.375 GHz. The device utilizes Surface Mount Technology (SMT) in a 0.5-inch package configuration. It requires an 11V supply voltage and supports a tuning voltage range of 0 V to 10 V DC. Key electrical specifications include a typical phase noise of -85 dBc/Hz and a maximum second harmonic level of -12 dBc. The maximum current consumption is specified at 21 mA.

Feature Summary

Surface mount technology implementation for compact integration
Voltage-controlled frequency generation capability
Defined phase noise performance characteristics

Applications

RF signal generation circuits
Communication system local oscillators
Test and measurement equipment sources

Procurement Notes

Verify the specific datasheet version for the FMVC11022 to confirm exact pinout configurations and thermal requirements. Ensure that the design environment supports the required 11V supply voltage and 0-10V tuning range. Confirm mechanical compatibility with the 0.5-inch SMT footprint during PCB layout. Cross-reference the phase noise and harmonic specifications against application requirements to ensure signal integrity standards are met.

Selection Notes

Select this component when a stable 2 GHz to 2.75 GHz source is required in a surface-mount format. Consider the 11V power requirement and 21 mA current draw for power budget calculations. Evaluate the -85 dBc/Hz phase noise specification against system sensitivity needs. Verify that the 0-10V tuning voltage aligns with available control circuitry outputs.

Part Context

Fairview Microwave produces specialized RF and microwave components, including connectors, cables, and active devices like VCOs. The FMVC11022 represents their offering in the voltage-controlled oscillator category, designed for high-frequency applications requiring precise frequency synthesis. This product line targets industries needing reliable RF signal sources for complex electronic systems.
