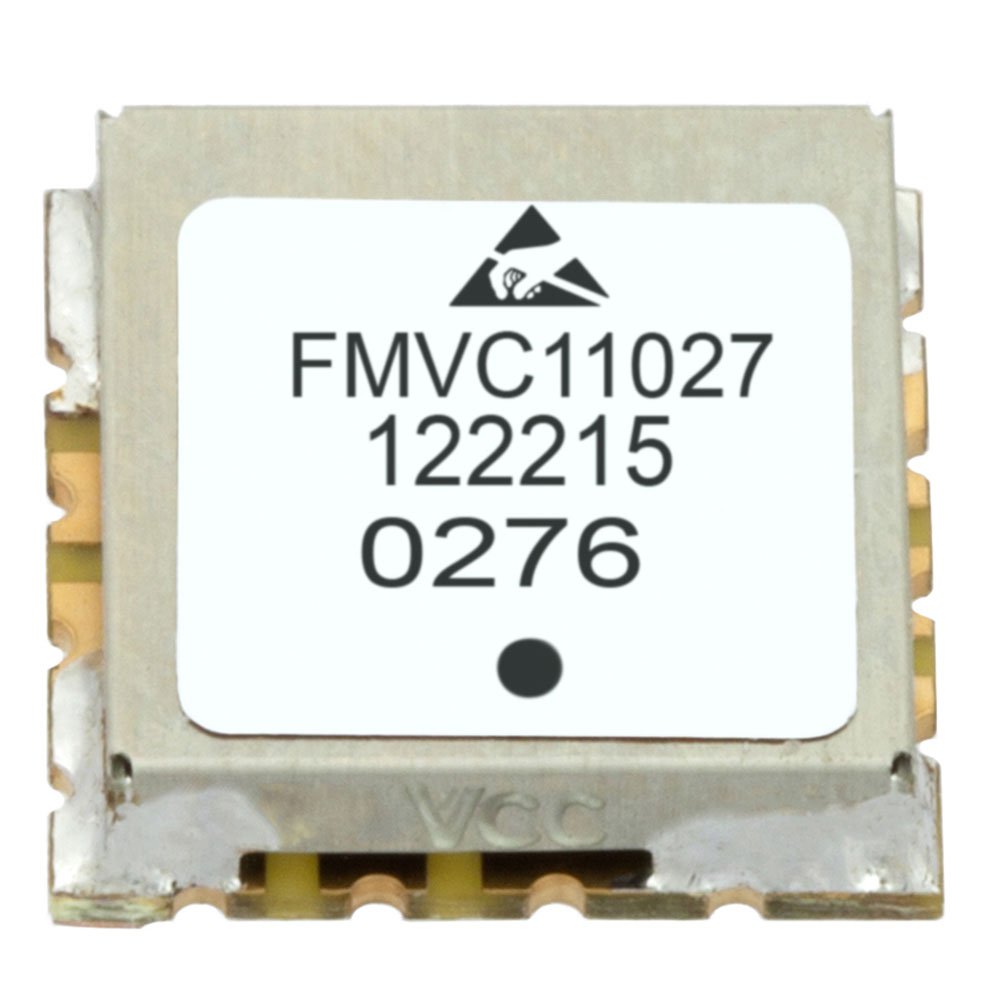

FMVC11027

$39.92

Description：VOLT CONTROL OSC 4.26GHZ-5GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:872c4a5ec157 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 4.26GHZ-5GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：4.26 ~ 5GHz
Frequency - Center：4.63GHz
Voltage - Supply：11V
Tuning Voltage (VDC)：0 V ~ 10 V
2nd Harmonic, Typ (dBc)：-18 (Max)
Icc Max：25mA
Pushing (MHz/V)：-
Power (dBm)：7 (min)
Phase Noise Typ (dBc/Hz)：-79 (Max)
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

FMVC11027

Overview

The FMVC11027 is a high-reliability, low-noise voltage-controlled oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 4.26 GHz to 5 GHz and features a phase noise specification of -79 dBc/Hz. The component utilizes a surface-mount technology (SMT) package with dimensions of 0.5 inches. Designed for commercial applications, it provides stable oscillation performance across its specified tuning band.

Feature Summary

High reliability construction suitable for demanding environments
Low noise characteristics for signal integrity
Surface mount packaging for automated assembly

Applications

Commercial communication systems
Signal generation modules
Frequency synthesis circuits

Procurement Notes

Verify the specific manufacturer part number FMVC11027 against official Fairview Microwave documentation to ensure authenticity. Confirm that the received component matches the described SMT package and frequency specifications. Check for any authorized distributor certifications to guarantee supply chain integrity and product quality before integration into designs.

Selection Notes

Select this VCO when a compact surface-mount solution is required for frequencies between 4.26 GHz and 5 GHz. Consider the -79 dBc/Hz phase noise level for applications sensitive to spectral purity. Ensure the design accommodates the 0.5-inch footprint and thermal requirements associated with commercial-grade SMT oscillators.

Part Context

This component belongs to the family of voltage-controlled oscillators offered by Fairview Microwave. It serves as a core frequency generation element in RF circuits. The model designation FMVC11027 identifies the specific frequency range and performance tier within the manufacturer's commercial product line.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative VCOs from other manufacturers.
